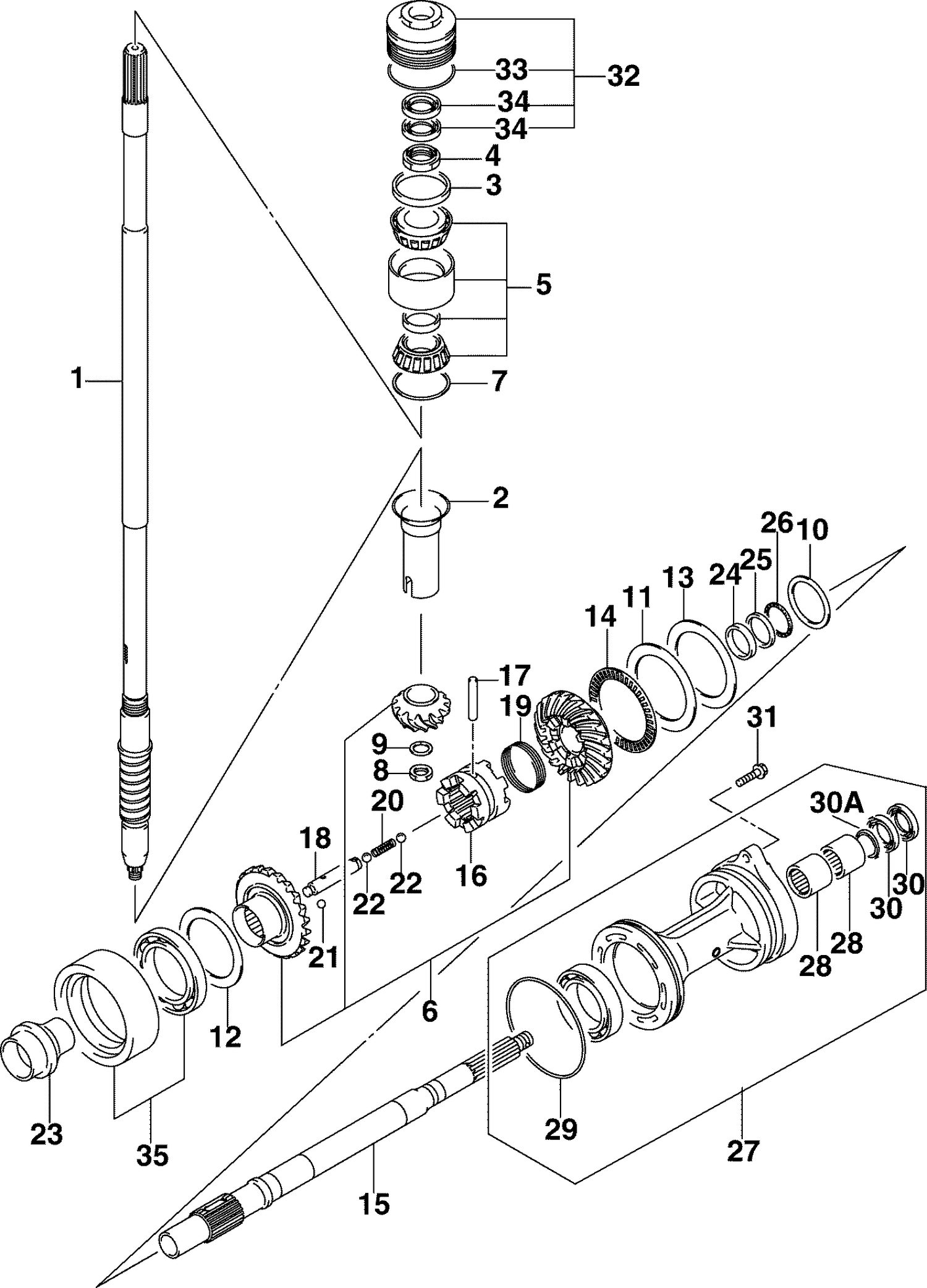

GEARS - COUNTER ROTATION
Parts (24)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 5035155 | SHAFT, DRIVE |
| 2 | 5035156 | COLLAR, DRIVE SHAFT |
| 3 | 5035157 | SPACER, DRIVE SHAFT BEARING |
| 4 | 5034793 | NUT, DRIVE SHAFT BEARING |
| 5 | 5034825 | BEARING, DRIVE SHAFT |
| 6 | 5035492 | PINION/GEAR SET |
| 8 | 5035236 | NUT, PINION |
| 9 | 5035660 | WASHER, PINION NUT |
| 14 | 5034826 | BEARING, FWD GEAR |
| 15 | 5035493 | SHAFT, PROPELLER |
| 16 | 5035161 | SHIFTER, CLUTCH DOG |
| 17 | 5035286 | PIN, CLUTCH DOG SHIFTER |
| 18 | 5035162 | PIN, CONNECTOR |
| 19 | 5035366 | SPRING, CLUTCH DOG SHIFTER |
| 20 | 5034843 | SPRING |
| 21 | 5035652 | BALL, DETENT NO.1 |
| 22 | 5035653 | BALL, DETENT NO.2 |
| 23 | 5035494 | SPACER, FWD THRUST |
| 24 | 5034089 | WASHER (30X47X6.0mm) |
| 25 | 5034090 | WASHER (32X47X3.0mm) |
| 26 | 5034094 | BEARING (30X47X2.0mm) |
| 27 | 5035489 | HOUSING, PROP SFT BRG |
| 31 | 5031212 | BOLT |
| 32 | 5035153 | HOUSING, DRIVE SHAFT BRG |
