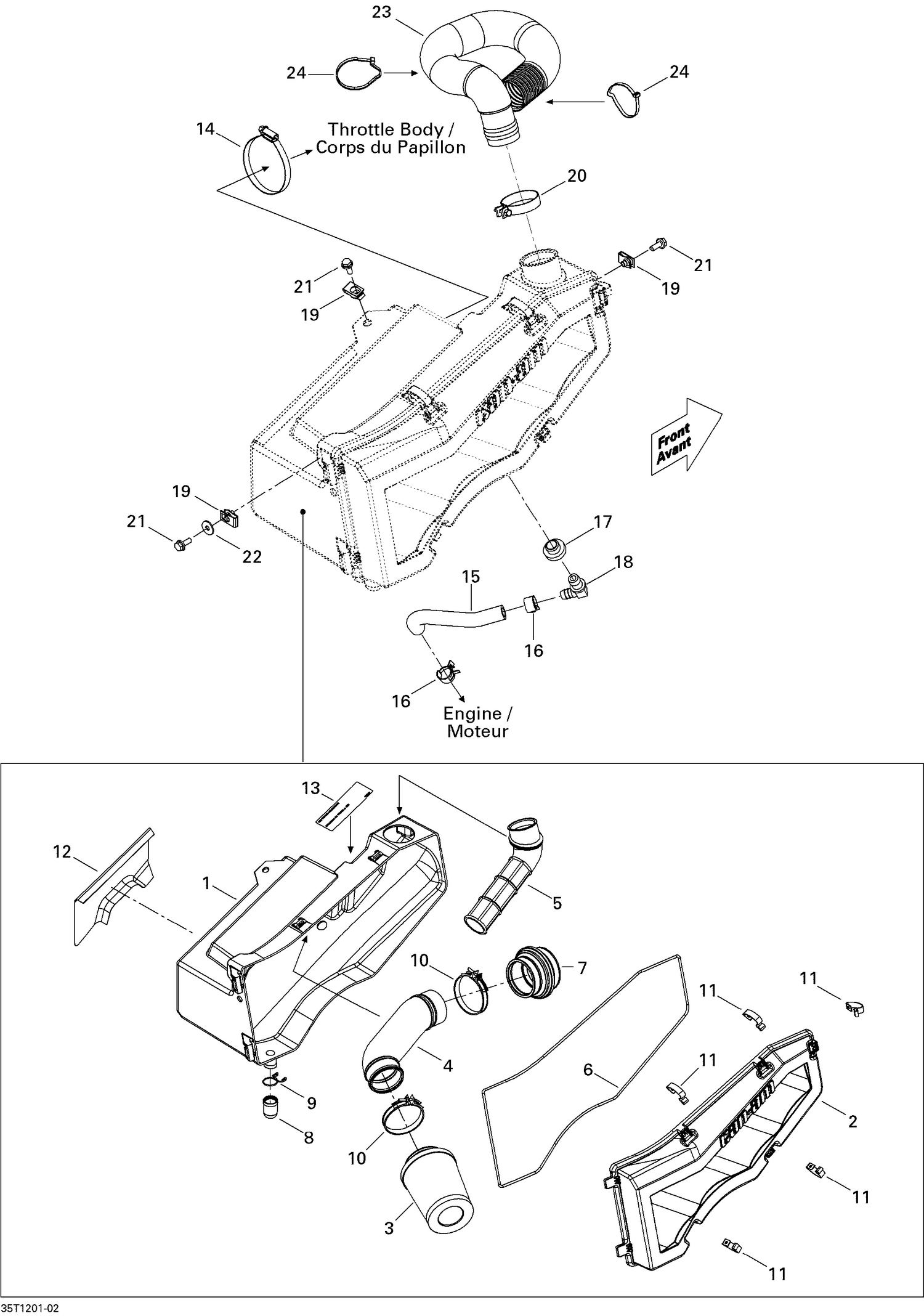

| Ref | Part Number | Description |
|---|
| 1 |
707800445 |
AIR INTAKE SILENCER BASE - Call your local BRP dealership |
| 2 |
707800263 |
AIR INTAKE SILENCER COVER - Call your local BRP dealership |
| 3 |
707800264 |
Air Filter |
| 4 |
707800265 |
RIGID ADAPTOR - Call your local BRP dealership |
| 5 |
707800266 |
FRONT INTAKE ADAPTOR - Call your local BRP dealership |
| 6 |
293250178 |
GASKET - Call your local BRP dealership |
| 7 |
707800177 |
INTAKE ADAPTOR - Call your local BRP dealership |
| 8 |
707800080 |
Drain Tube |
| 9 |
707800278 |
Retainer Clip |
| 10 |
293650175 |
Clamp |
| 11 |
707800249 |
Cover Bracket |
| 12 |
707800276 |
HEAT PROTECTOR - Call your local BRP dealership |
| 13 |
707800373 |
Air Filter Maintenance Decal |
| 14 |
293650091 |
Norma Clamp |
| 15 |
707800268 |
VENT HOSE - Call your local BRP dealership |
| 16 |
293650110 |
Norma Clamp |
| 17 |
707800347 |
Grommet |
| 18 |
414523600 |
Elbow Fitting |
| 19 |
250100198 |
Panel Nut M6 X 1.0 This part replaces 250000048. |
| 20 |
293650160 |
GEMI CLAMP - Call your local BRP dealership |
| 21 |
207661646 |
Hex. Flange Screw M6 X 16 |
| 22 |
250200082 |
Flat Washer This part replaces 391302000. |
| 23 |
707800287 |
VENT HOSE - Call your local BRP dealership |
