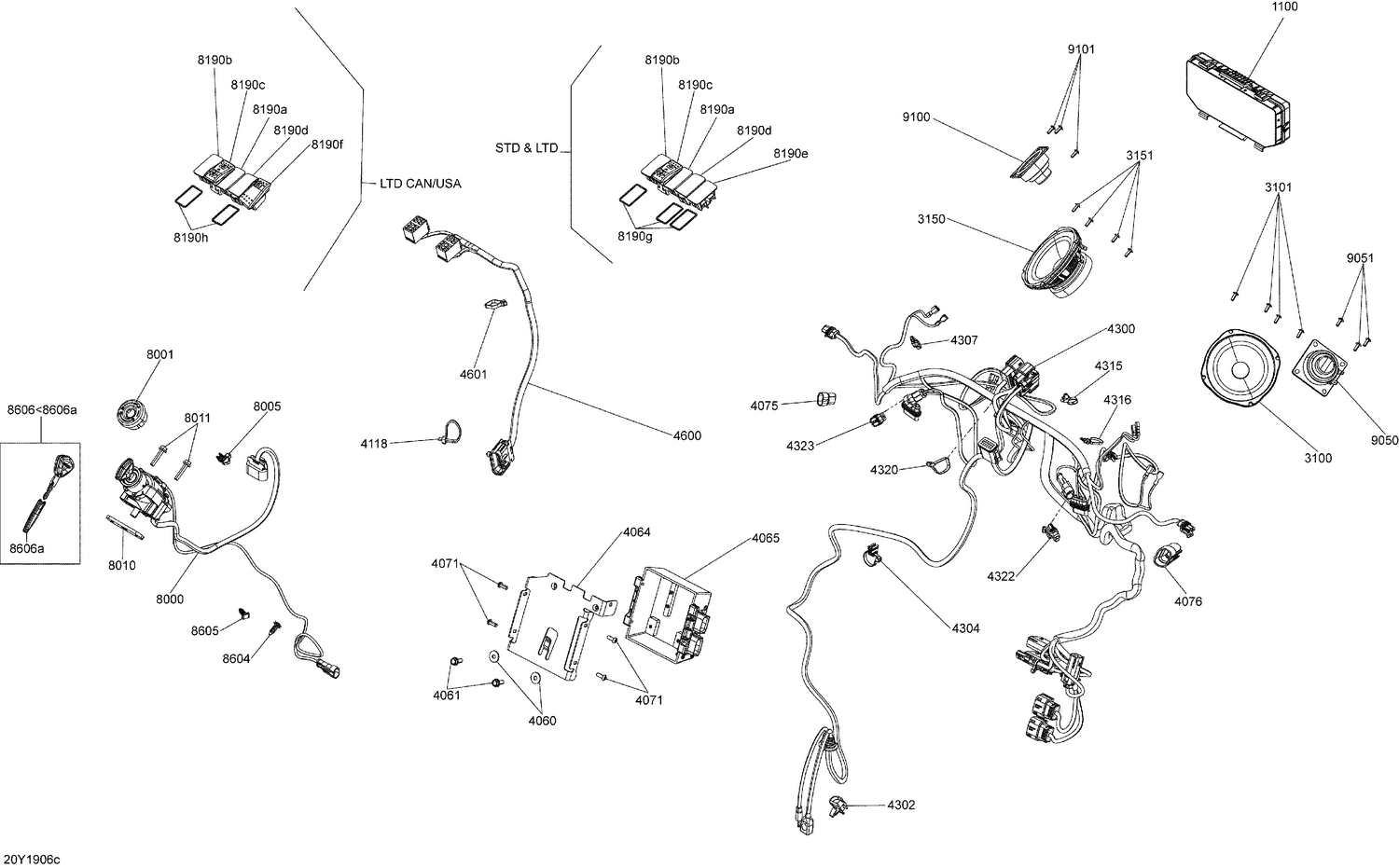

10- Electrical Console - Radio & Switch
Parts (35)
| Ref | Part Number | Description |
|---|---|---|
| 1100 | 710006937 | Multifunction Gauge_Full Size Color This part replaces 710006588. |
| 3100 | 710005433 | Haut-Parleur 4.5" |
| 3101 | 250000577 | Torx Truss Screw K40 X 12 |
| 3150 | 710005433 | Haut-Parleur 4.5" |
| 3151 | 250000577 | Torx Truss Screw K40 X 12 |
| 4060 | 234062670 | Stainless Steel Flat Washer |
| 4061 | 210261650 | Hex. Flange Screw M6 X 16 |
| 4064 | 710005814 | Amplifier Holder |
| 4065 | 710006566 | Amplifier 6 x 20 Watts This part replaces 710006444. |
| 4071 | 235551454 | Screw-Torx Button Head M5 X 14 |
| 4118 | 293750002 | Tie Wrap 142 mm |
| 4302 | 293750009 | Tie-Rap 173 mm |
| 4304 | 293750063 | Clip Tie-Rap |
| 4307 | 515175220 | Wrap_Tie 200 X 4.6 - Call Your Local BRP Dealership |
| 4315 | 515175220 | Wrap_Tie 200 X 4.6 - Call Your Local BRP Dealership |
| 4316 | 515175220 | Wrap_Tie 200 X 4.6 - Call Your Local BRP Dealership |
| 4320 | 414115200 | Tie-Rap 180 mm |
| 4600 | 710005527 | Switch Harness |
| 4601 | 414115200 | Tie-Rap 180 mm |
| 8001 | 710003594 | Switch Cover |
| 8005 | 710002896 | Tie-Rap Clip |
| 8010 | 710001365 | Switch Support |
| 8011 | 207563044 | Hex. Flange Screw M6 X 30, Scotch Grip |
| 8190a | 710002260 | Plug |
| 8190b | 710007173 | Plug Carling This part replaces 710001999. |
| 8190c | 710002354 | Switch, Heat Grip |
| 8190d | 710007173 | Plug Carling This part replaces 710001999. |
| 8190e | 710007173 | Plug Carling This part replaces 710001999. |
| 8190g | 710002288 | PANEL SEAL - Call your local BRP dealership |
| 8604 | 710002033 | Connector Holder |
| 8605 | 710002033 | Connector Holder |
| 8606a | 710003597 | Key Sleeve |
| 9050 | 710005432 | Haut-Parleur 2.5" |
| 9051 | 250000577 | Torx Truss Screw K40 X 12 |
| 9100 | 710005432 | Haut-Parleur 2.5" |
