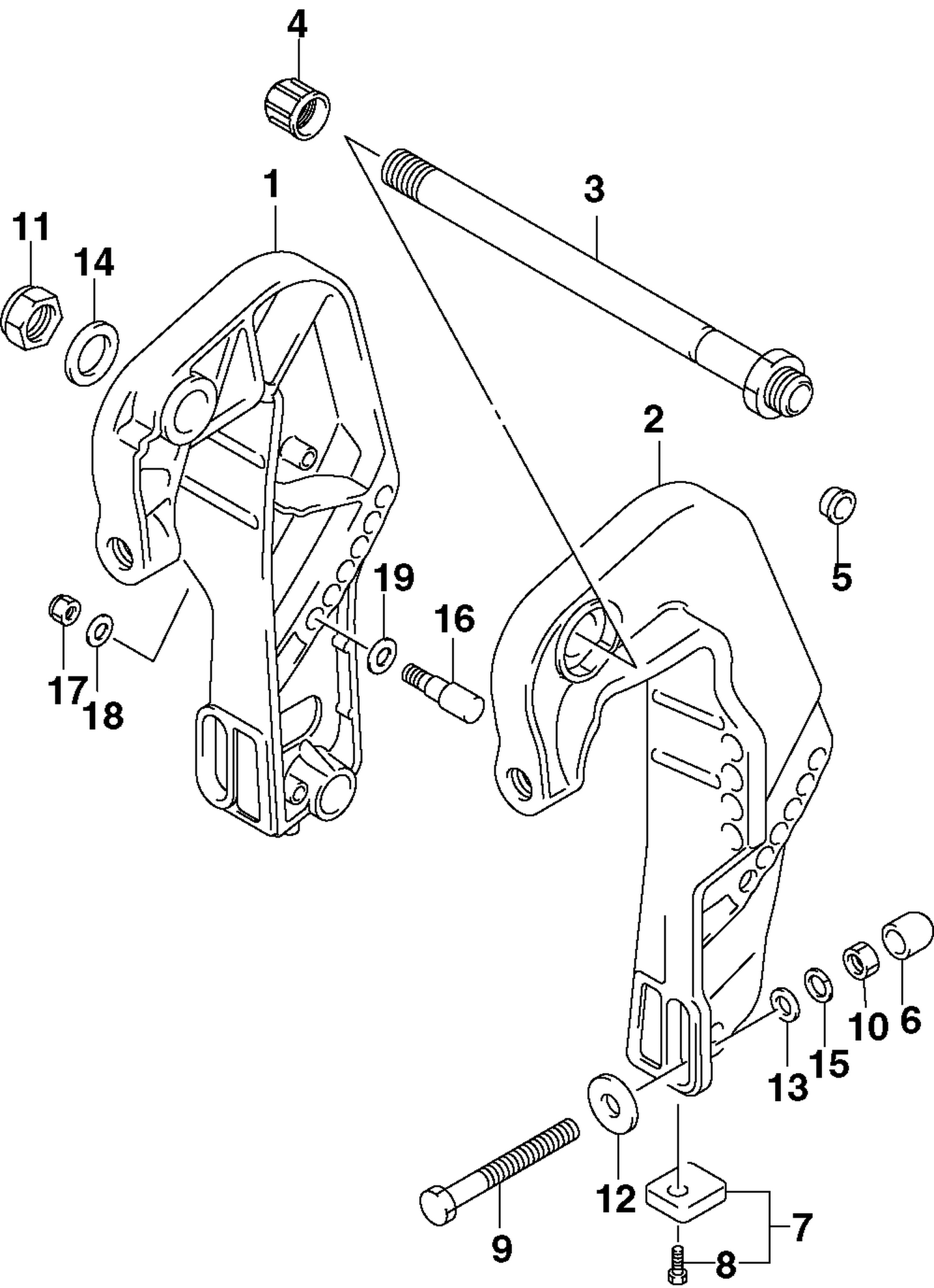

CLAMP BRACKET
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 5032788 | BRACKET, CLAMP STBD |
| 2 | 5032789 | BRACKET, CLAMP PORT |
| 3 | 5034365 | SHAFT, CLAMP BRACKET This part replaces 5031487. |
| 4 | 5031489 | CAP, CLAMP BRACKET |
| 5 | 5031490 | PLUG, CLAMP BRACKET |
| 6 | 5030839 | CAP, TRANSOM BOLT |
| 7 | 5035786 | ZINC SET, PROTECTION This part replaces 5030265. |
| 9 | 5037556 | Kit This part replaces 5030385. |
| 10 | 5030418 | NUT |
| 12 | 5030436 | WASHER |
| 14 | 5031846 | WASHER |
| 15 | 5030462 | RONDELLE GROWER |
| 16 | 5032068 | PIN, Tilit lock |
| 17 | *5030054 | NUT |
| 18 | 5030057 | WASHER |
