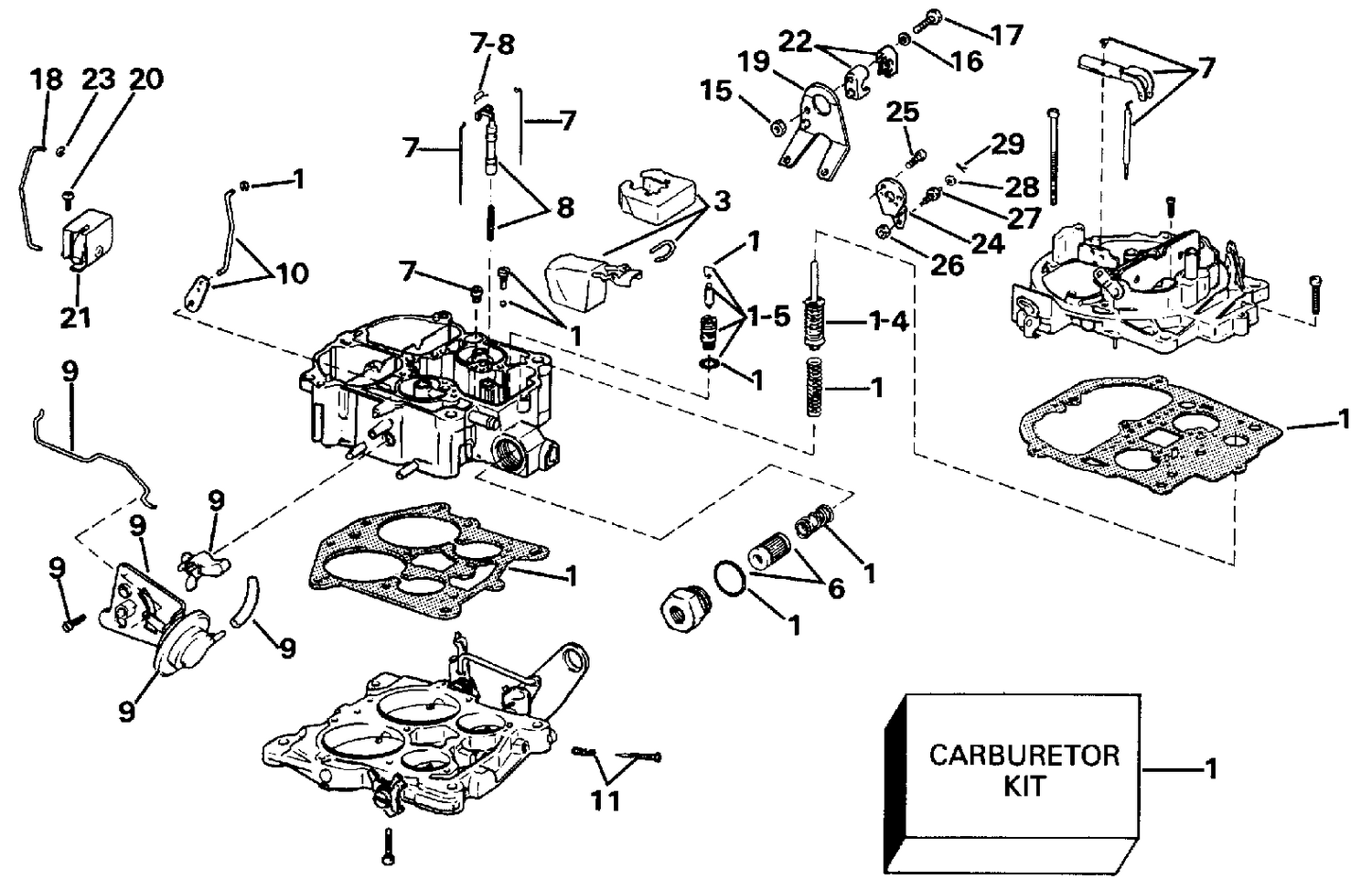

CARBURETOR - 4V
Parts (20)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0983864 | CARB. REPAIR KIT |
| 3 | 0983871 | FLOAT & INSERT ASSY. |
| 4 | 0983872 | FLOAT & INSERT PKG |
| 5 | 0983873 | NEEDLE & SEAT ASSY |
| 6 | 0983870 | FILTER, Fuel inlet |
| 7 | 0984486 | METERING JET & ROD PKG |
| 8 | 0983868 | POWER PISTON ASSY |
| 9 | 0983867 | VACUUM BREAK ASSY |
| 10 | 0983866 | CHOKE LINK & LEVER pkg |
| 11 | 0913619 | IDLE NEEDLE & SPRING |
| 17 | 0913248 | SCREW |
| 18 | 0909422 | LINK, Choke |
| 19 | 0983063 | BRACKET ASSY, Lift |
| 20 | 0316134 | VIS, dispositif de blocage vers levier de sens de marche |
| 21 | 0986507 | THERM ASSY, Lift |
| 22 | 0913250 | ANCHOR BLOCK |
| 23 | 0907728 | CLIP, Choke link |
| 24 | 0912809 | THROTTLE LEVER |
| 27 | 0910468 | PIN, Lever |
| 0983855 | 0983855 | CARBURETOR ASSY |
