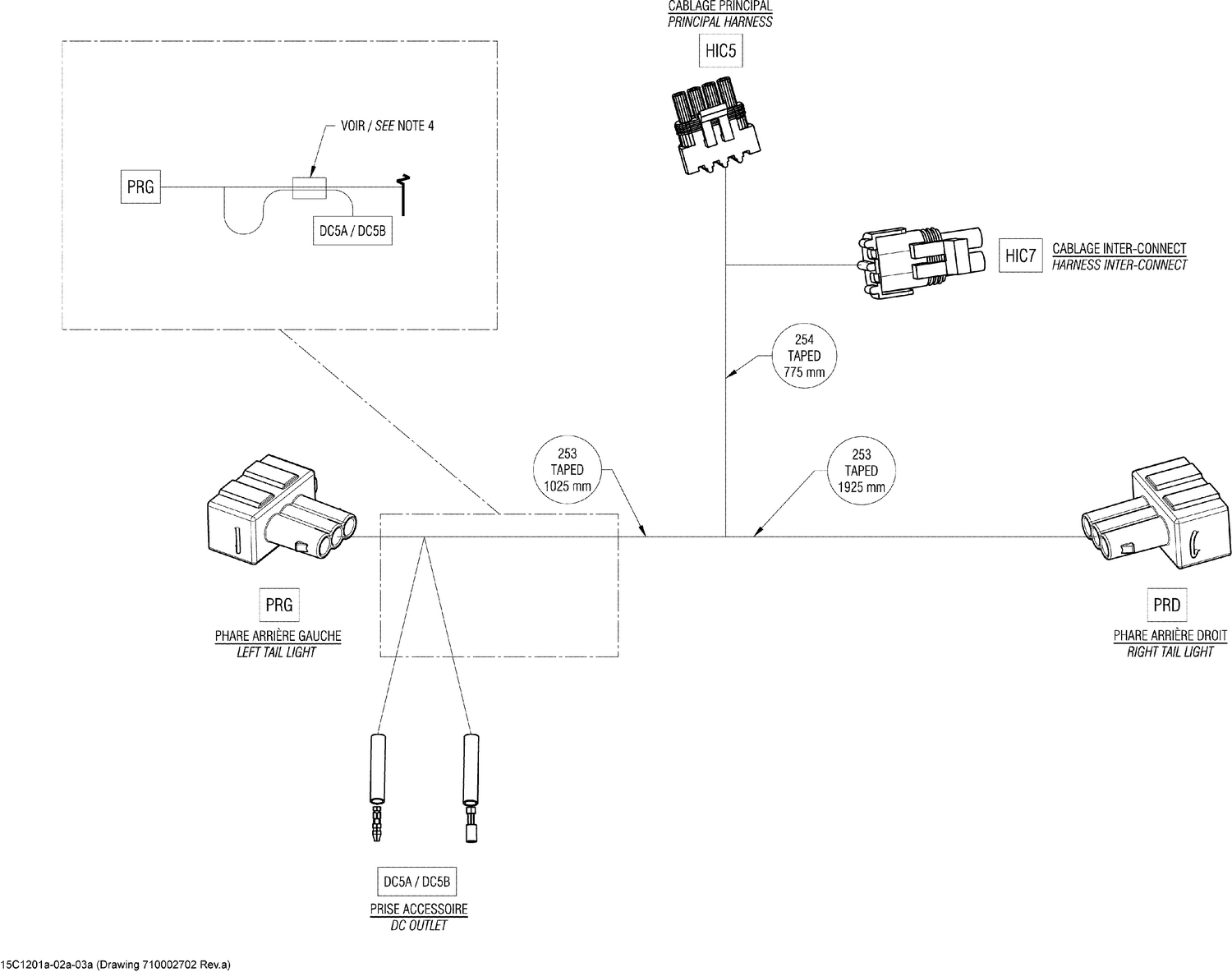

10- Electrical Harness Rear North America
Parts (34)
| Ref | Part Number | Description |
|---|---|---|
| DC5A | 278001008 | Insulated Sheath |
| DC5A | 278002261 | Female Terminal |
| DC5B | 219704453 | Was 293550004 Dielectric Grease, 150 g |
| DC5B | 278001007 | Insulated Sheath |
| DC5B | 710000421 | Female Terminal |
| HIC5 | 278000223 | Female Terminal |
| HIC5 | 278000395 | Male Housing, 4 Circuits |
| HIC5 | 278001065 | Wire Seal This part replaces 278000585. |
| HIC7 | 278000218 | Wire Seal |
| HIC7 | 278000220 | Male Connector, 2 Circuits |
| HIC7 | 409007300 | Female Terminal |
| PRD | 278000998 | Female Terminal |
| PRD | 415128501 | Seal |
| PRD | 710002104 | Housing |
| PRG | 278000998 | Female Terminal |
| PRG | 415128501 | Seal |
| PRG | 710002104 | Housing |
| 32 | 278000998 | Female Terminal |
| 228 | 409007300 | Female Terminal |
| 229 | 278000223 | Female Terminal |
| 237 | 278000220 | Male Connector, 2 Circuits |
| 239 | 278000395 | Male Housing, 4 Circuits |
| 242 | 278000218 | Wire Seal |
| 253 | 219704425 | Tubing 6 Mm 3000Mm Long |
| 254 | 219704399 | Was 409901700 Tubing (9 mm) |
| 295 | 278001008 | Insulated Sheath |
| 297 | 278001007 | Insulated Sheath |
| 387 | 219704453 | Was 293550004 Dielectric Grease, 150 g |
| 484 | 415128501 | Seal |
| 504 | 278001065 | Wire Seal This part replaces 278000585. |
| 506 | 710000421 | Female Terminal |
| 918 | 278002261 | Female Terminal |
| 1160 | 710002104 | Housing |
| 1302 | 710002711 | Shrink Tubing |
