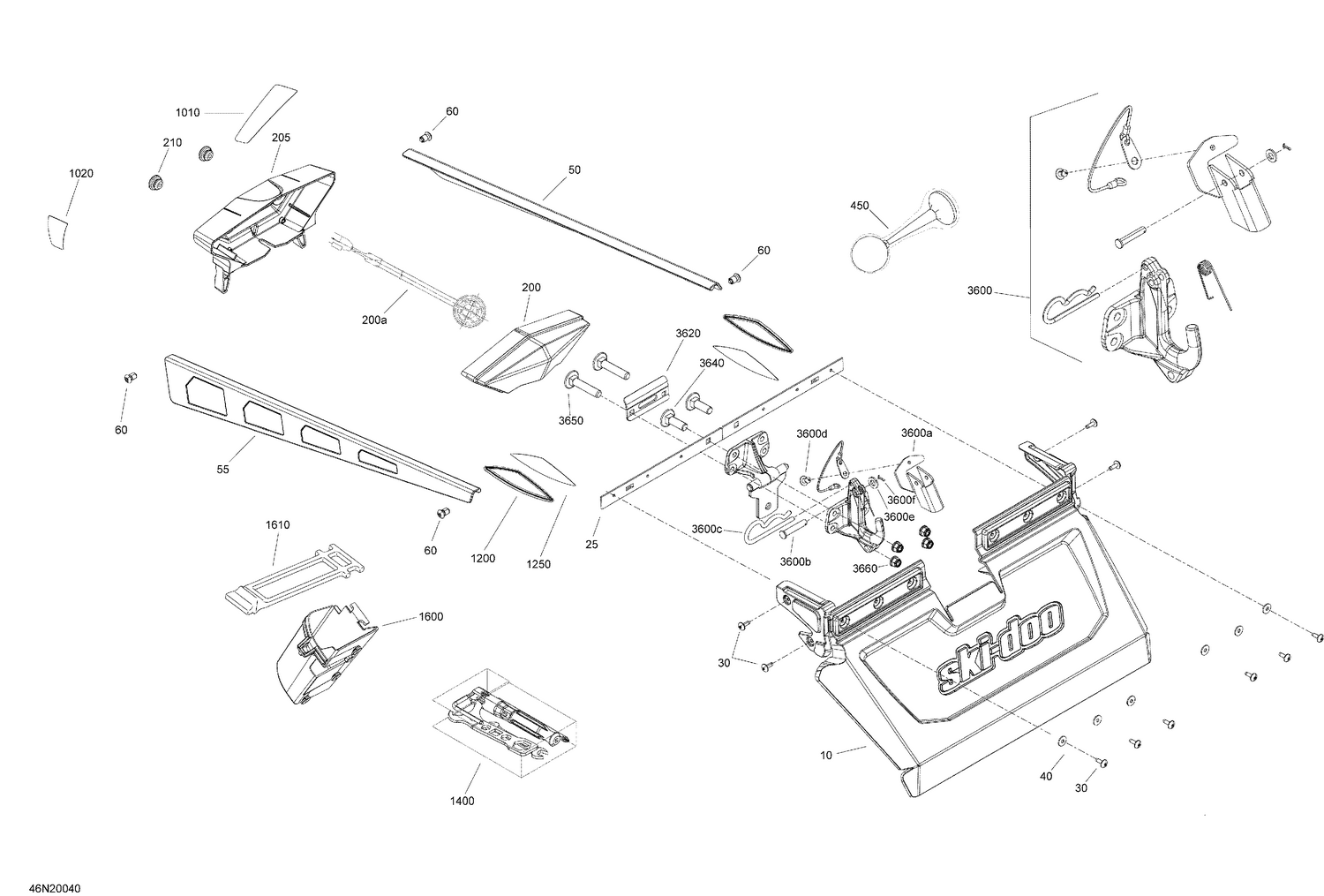

10- Utilities
Parts (27)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 520001411 | Snow Guard |
| 25 | 520001021 | Plate |
| 30 | 250000676 | Forming Screw M5 x 16 |
| 40 | 250200025 | Washer M5 |
| 50 | 520000693 | RH Protector |
| 55 | 520000694 | LH Protector |
| 60 | 293150163 | Rivet Hucklok |
| 200a | 520000849 | Rear Wiring Harness |
| 205 | 511000764 | Rear Light Cover |
| 210 | 705014429 | Rubber Stopper This part replaces 705003666. |
| 450 | 549011291 | Horn |
| 1010 | 520001600 | Yellow, RH Reflector |
| 1020 | 520001601 | Yellow, LH Reflector |
| 1200 | 705002423 | Amber, Lateral Reflector |
| 1250 | 520001766 | Support Tape |
| 1400 | 520001593 | Tools Kit This part replaces 529000078. |
| 1600 | 520000894 | Tool Kit Rack |
| 1610 | 520000528 | Latch |
| 3600a | 520001775 | Locking Plate |
| 3600b | 520001810 | Clevis Pin |
| 3600c | 41029 | Hair pin |
| 3600d | 390909100 | Avex Rivet |
| 3600e | 520001811 | Washer |
| 3600f | 520001812 | Cotter Pin |
| 3620 | 520000727 | Plate |
| 3640 | 207782544 | Carriage Bolt, M8 X 25 |
| 3650 | 207784044 | Bolt Carriage M8 X 40 |
