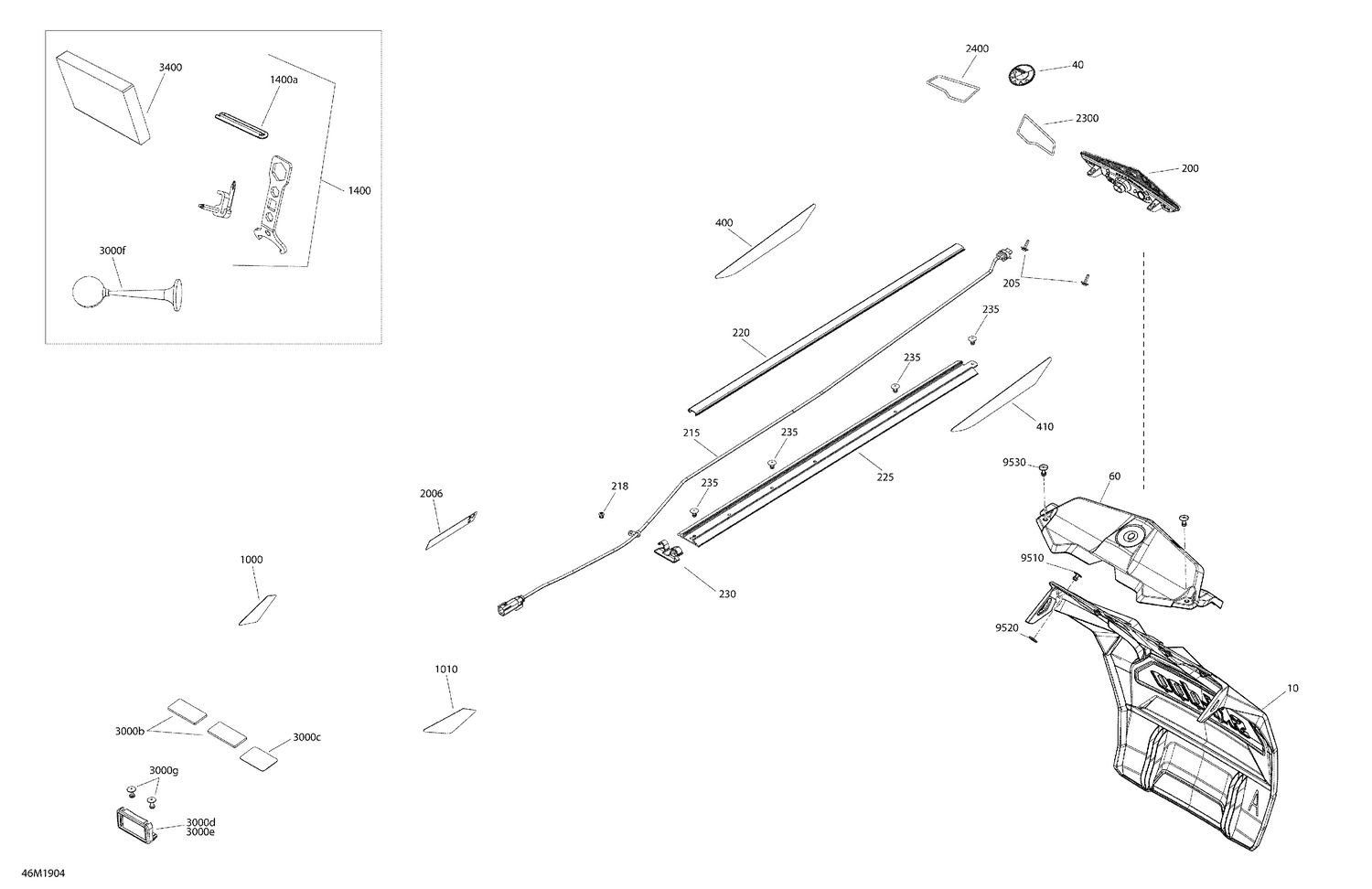

09- Utilities - North America
Parts (20)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 520001481 | Snow Gard |
| 40 | 516008738 | BRP Logo 48mm |
| 60 | 520001487 | Light Fairing |
| 200 | 520001143 | Rear Light |
| 205 | 250000725 | Screw M4 X 16 |
| 218 | 390402200 | Pop Rivet 3/16" |
| 220 | 520002921 | Extruded Trim This part replaces 520001719. |
| 225 | 520002930 | Grommet This part replaces 520001703. |
| 230 | 520001722 | Cap |
| 235 | 293150104 | Pop Rivet 3/16" |
| 400 | 520001900 | Red, RH Rear Reflector |
| 410 | 520001901 | Red, LH Rear Reflector |
| 1000 | 520002343 | RH Front Reflector This part replaces 520001493. |
| 1010 | 520002344 | LH Front Reflector This part replaces 520001494. |
| 1400a | 529017500 | Rope Starter |
| 2300 | 516008594 | LH Safety Label |
| 2400 | 516006892 | RH English Warning Decal |
| 3400 | 520001897 | Operator Guide English |
| 9510 | 293150104 | Pop Rivet 3/16" |
| 9520 | 517124300 | Washer |
