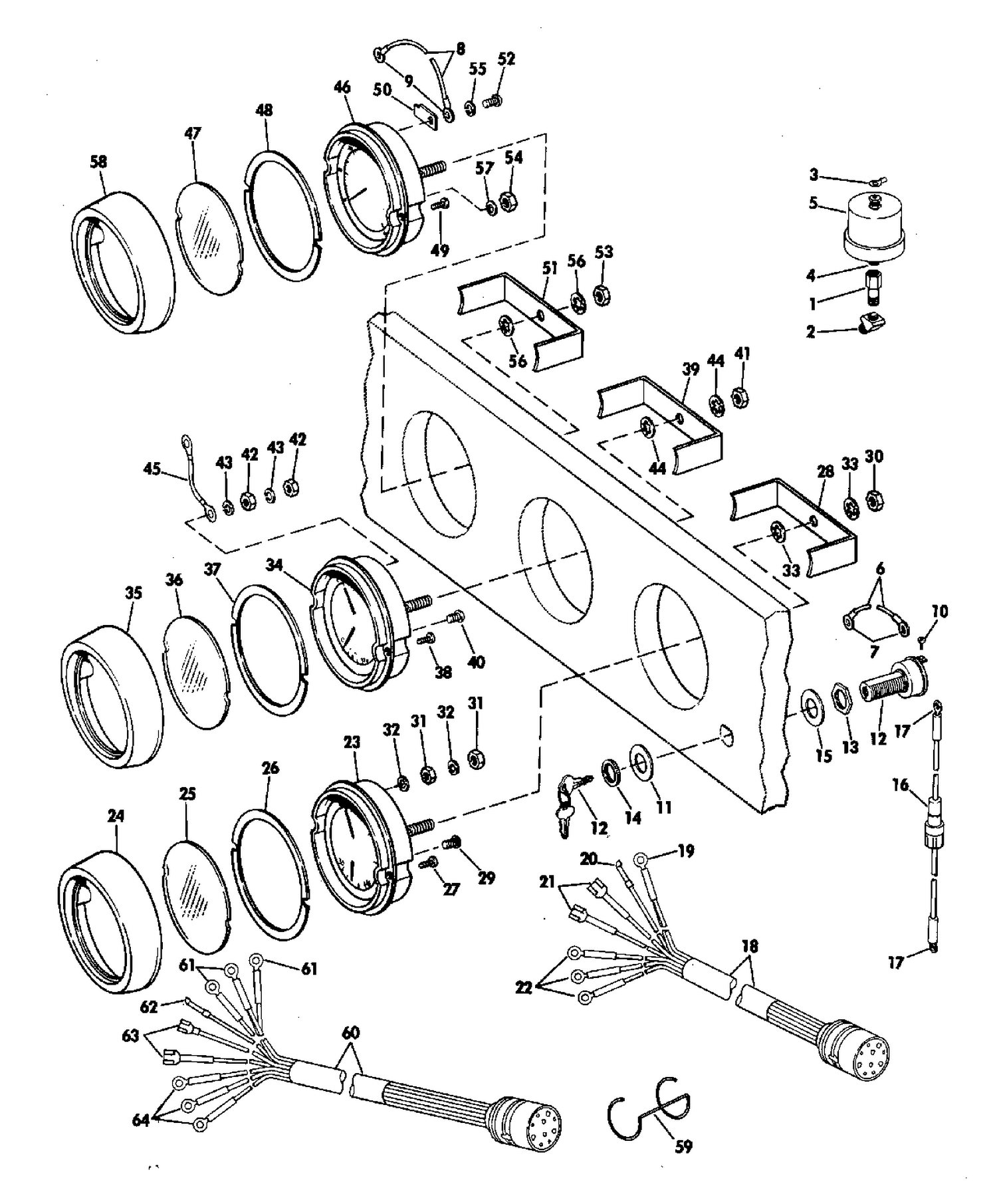

INSTRUMENT KIT ASSEMBLY SUN SHIELDED STERN DRIVE
Parts (25)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0121687 | FITTING |
| 2 | 3855776 | ADAPTER, Oil sender This part replaces 0121688. |
| 4 | 0121891 | ELBOW |
| 5 | 3853800 | OIL PRESSURE SENDER This part replaces 0172127. |
| 6 | 0172148 | LEAD ASSEMBLY |
| 8 | 0172149 | LEAD ASSEMBLY |
| 12 | 0386545 | IGNITION SWITCH & KEY ASSY This part replaces 0378238. |
| 16 | 0378334 | FUSE HOLDER & LEAD ASSEMBLY |
| 18 | 0979924 | CABLE ASSEMBLY |
| 23 | 0172074 | AMP FUEL GAUGE ASSY |
| 24 | 0121703 | U BOLT |
| 29 | 0121788 | SCREW |
| 32 | 0304141 | LOCKWASHER |
| 34 | 0172083 | INSTRUMENT ASSY, Temp |
| 35 | 0121703 | U BOLT |
| 40 | 0121788 | SCREW |
| 43 | 0304141 | LOCKWASHER |
| 45 | 0172085 | LEAD |
| 46 | 0172077 | TACHOMETER ASSEMBLY |
| 50 | 0121708 | LOCKWASHER |
| 52 | 0121788 | SCREW |
| 54 | 0302437 | NUT |
| 55 | 0304141 | LOCKWASHER |
| 58 | 0121703 | U BOLT |
| 60 | 0172290 | CABLE ASSEMBLY |
