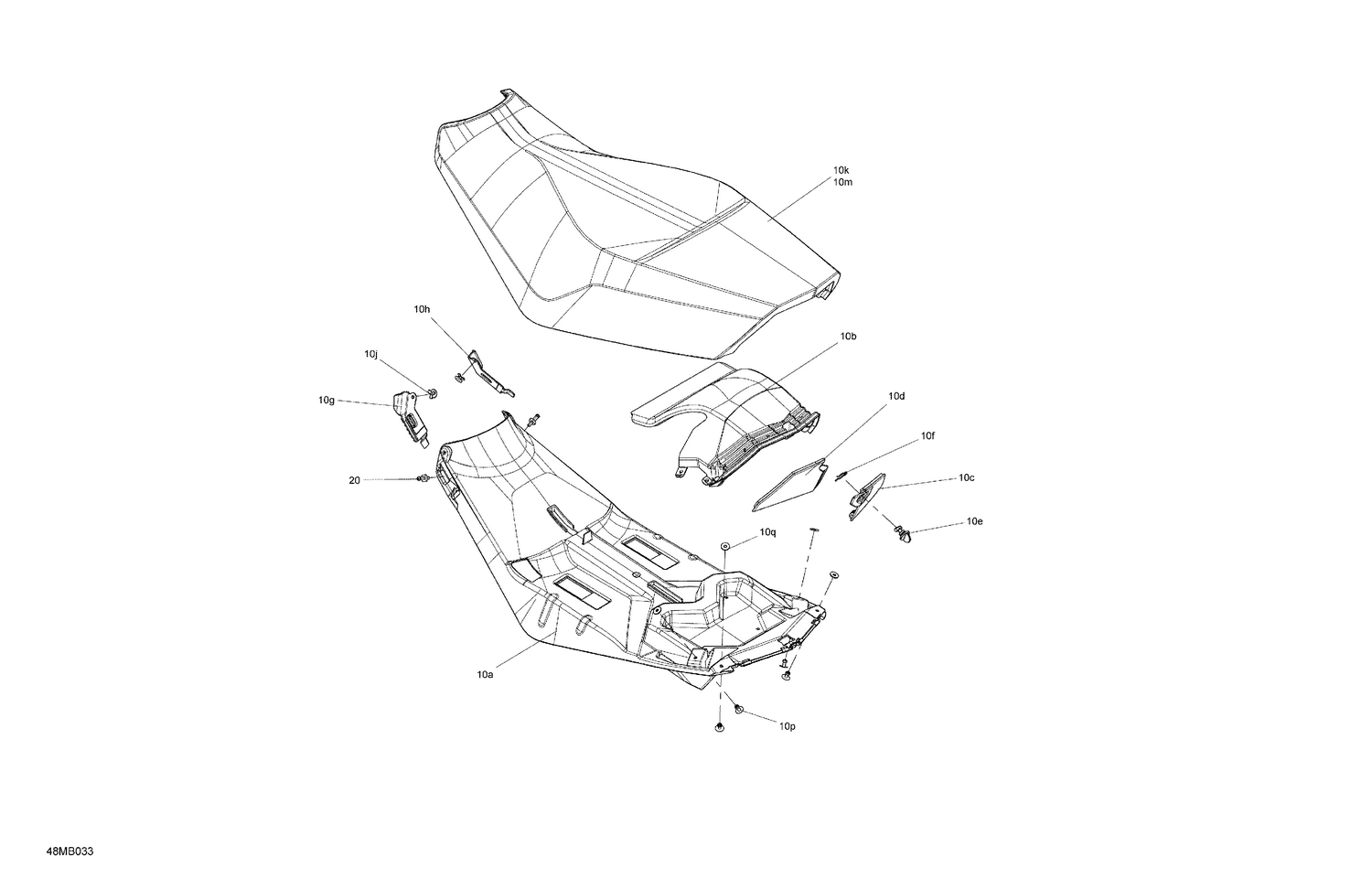

07- Body - Seat
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 10a | 510006312 | Seat Base |
| 10b | 510005413 | Seat Box |
| 10c | 510005414 | Deep Black, RH Door |
| 10d | 510005415 | Deep Black, LH Door |
| 10e | 510005416 | Lock |
| 10f | 250400055 | Hairpin Clip |
| 10g | 510006530 | LH Seat Latch |
| 10h | 510006531 | RH Seat Latch |
| 10j | 293150222 | Pop Rivet 3/16" |
| 10k | 510006313 | Seat Foam |
| 10m | 510007286 | Seat Cover |
| 10p | 293150104 | Pop Rivet 3/16" |
| 10q | 391301600 | Washer |
