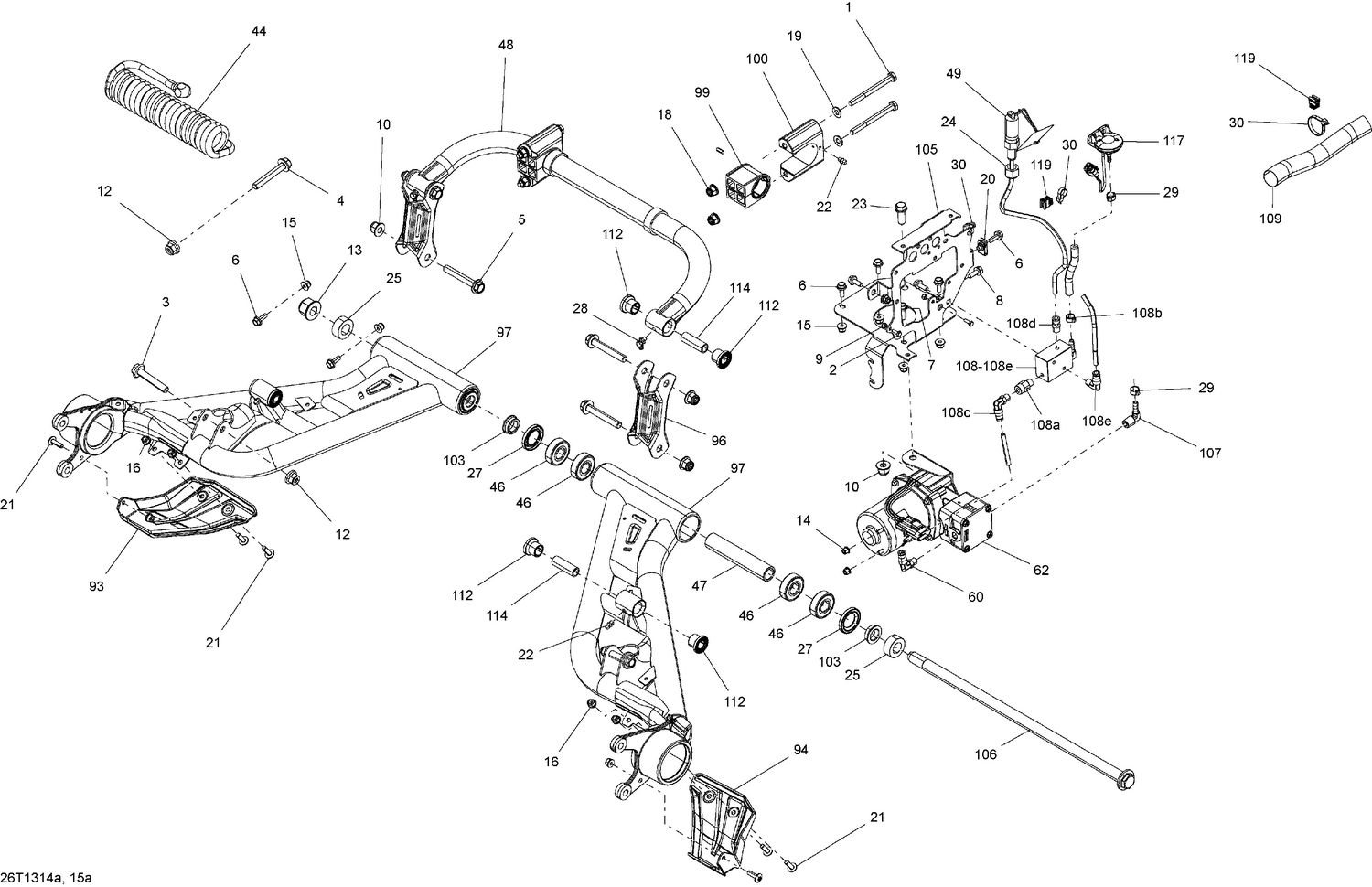

08- Rear Suspension
Parts (51)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 250001035 | Hex. Screw M8 X 85 This part replaces 207088587. |
| 2 | 207141244 | HEX. SCREW M4 X 12 - Call your local BRP dealership |
| 3 | 207605546 | Hex. Flange Screw M10 X 55 |
| 4 | 207606046 | Hex. Flange Screw M10 X 6 |
| 5 | 207606536 | Hex. Flange Screw M10 X 65 |
| 6 | 207661644 | Hex. Flange Screw M6 X 16 |
| 7 | 207662044 | Hex. Flange Screw M6 X 20 |
| 8 | 210261650 | Hex. Flange Screw M6 X 16 This part replaces 210261680. |
| 9 | 232541414 | Elastic Stop Nut M4 |
| 10 | 233201414 | Hex. Flange Elastic Nut M10 |
| 12 | 233201436 | Hex. Flange Elastic Nut M10 This part replaces 233201416. |
| 13 | 233211466 | Hex. Flange Elastic Nut M16 |
| 14 | 233251434 | Flange Elastic Nut M5 This part replaces 233251414. |
| 15 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 16 | 233261494 | Hex. Flange Elastic Nut M6 |
| 18 | 233281434 | Hex. Flange Elastic Nut M8 |
| 19 | 234081430 | Flat Washer M8 |
| 20 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000048. |
| 21 | 250000722 | Torx Screw M6 X 20 This part replaces 250000128. |
| 22 | 250000315 | Grease Fitting |
| 23 | 250001054 | Hex. Flange Screw M10 X 25 This part replaces 250000562. |
| 24 | 250100124 | Hex. Nut With Nylon 1/2" X 20 |
| 25 | 250200112 | Flat Washer M17 |
| 27 | 293200144 | Seal This part replaces 293200132. |
| 28 | 293550056 | Grease Fitting 90° |
| 29 | 293650207 | Clamp Oetiker |
| 30 | 293750008 | Tie Wrap 368 mm |
| 44 | 706000808 | Auxiliary Hose |
| 46 | 293350145 | Ball Bearing This part replaces 706000826. |
| 47 | 706002259 | Spacer This part replaces 706000828. |
| 48 | 706000988 | Swaybar |
| 49 | 706001339 | INFLATER ASS'Y - Call your local BRP dealership |
| 60 | 706000928 | Elbow 90° |
| 62 | 706000964 | Compressor Ass'y |
| 93 | 706001009 | LH PROTECTOR - Call your local BRP dealership |
| 94 | 706001010 | RH PROTECTOR - Call your local BRP dealership |
| 96 | 706001020 | Sway Bar Linkage |
| 97 | 706001860 | Black LH Swing Arm This part replaces 706000722. |
| 97 | 706001861 | Black RH Swing Arm This part replaces 706000723. |
| 99 | 706004640 | Stabilizer Bar Bushing This part replaces 706001098. |
| 100 | 706001099 | Bushing Holder |
| 103 | 706001282 | Spacer |
| 105 | 706001351 | Compressor Bracket |
| 106 | 706001664 | Axial Pivot M16 This part replaces 706001364. |
| 107 | 706001405 | Elbow 90° |
| 108a | 706000860 | Check Valve |
| 108b | 293650207 | Clamp Oetiker |
| 108c | 706000928 | Elbow 90° |
| 108d | 706000869 | Connector |
| 108e | 706000872 | Elbow 90° |
| 117 | 710001825 | Air Suspension Sensor |
