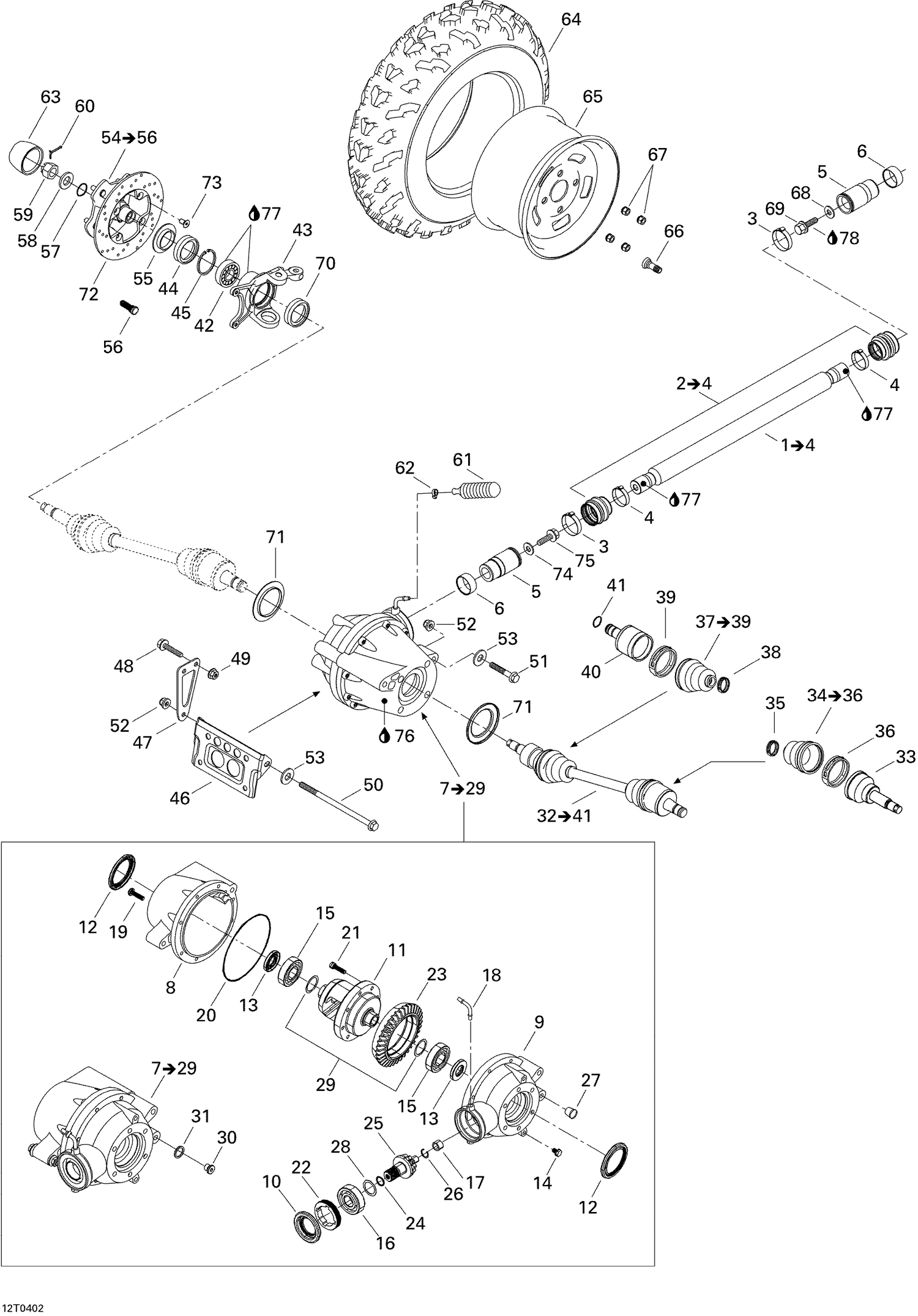

| Ref | Part Number | Description |
|---|
| 3 |
293650138 |
Oetiker Gear Clamp 44.0MM |
| 4 |
705400148 |
Collar |
| 5 |
703500678 |
Front Bushing Shaft Kit This part replaces 705400149. |
| 6 |
705400036 |
Wear Ring |
| 8 |
705400099 |
Front Cover |
| 9 |
705500515 |
PINION REAR COVER - Call your local BRP dealership |
| 10 |
705401481 |
Oil Seal This part replaces 705400027. |
| 11 |
705400404 |
DIFFERENTIAL - Call your local BRP dealership This part replaces 705400004. |
| 12 |
705400019 |
OIL SEAL - Call your local BRP dealership |
| 13 |
705401618 |
Gasket This part replaces 705500255. |
| 14 |
705500894 |
Drain Plug This part replaces 705500245. |
| 15 |
705401606 |
Ball Bearing This part replaces 705500259. |
| 16 |
705500260 |
Ball Bearing |
| 17 |
705500261 |
Needle Bearing |
| 18 |
705500893 |
VENT VALVE - Call your local BRP dealership This part replaces 705500262. |
| 19 |
705401601 |
Screw This part replaces 705500264. |
| 20 |
705500265 |
Seal |
| 21 |
705400101 |
RING GEAR SCREW - Call your local BRP dealership |
| 22 |
705401603 |
Nut This part replaces 705500266. |
| 23 |
705400103 |
Crown Gear |
| 24 |
705500267 |
O-Ring |
| 25 |
705500268 |
GEAR, 10 TEETH - Call your local BRP dealership |
| 26 |
705500269 |
RETAINING RING - Call your local BRP dealership |
| 27 |
705500516 |
PROTECTION PLUG - Call your local BRP dealership |
| 28 |
705502061 |
Pinion Gear Shim 1.67 mm This part replaces 703500049. |
| 29 |
705401604 |
Shim This part replaces 705500079. |
| 30 |
705500504 |
Fill Level Plug |
| 31 |
705500506 |
Copper Washer |
| 33 |
705400093 |
CV JOINT - Call your local BRP dealership |
| 35 |
705400064 |
CLAMP - Call your local BRP dealership |
| 36 |
705400180 |
Clamp |
| 38 |
705400064 |
CLAMP - Call your local BRP dealership |
| 39 |
705400181 |
Clamp |
| 40 |
705400128 |
RH Plunging Joint |
| 41 |
705400042 |
CIRCLIP - Call your local BRP dealership |
| 42 |
293350150 |
Ball Bearing This part replaces 705400088. |
| 43 |
709400095 |
RH Knuckle |
| 44 |
705500099 |
OIL SEAL - Call your local BRP dealership |
| 45 |
293370019 |
Circlip |
| 46 |
705400255 |
DIFFENTIAL FRONT BRACKET - Call your local BRP dealership |
| 47 |
705400069 |
RH Diffential Front Bracket |
| 48 |
207682044 |
Hex. Flange Screw M8 X 20 |
| 49 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 50 |
250000024 |
Flange Screw M10 X 200, Scotch Grip |
| 51 |
207506044 |
HEX. FLANGED SCREW M10 X 60, SCOTCH GRIP - Call your local BRP dealership |
| 52 |
233101414 |
Hex. Flange Nut M10 |
| 53 |
250200003 |
Flat Washer |
| 55 |
705500100 |
WEAR RING - Call your local BRP dealership |
| 56 |
250300055 |
Wheel Stud M10 X 1.25 This part replaces 250300020. |
| 57 |
705500271 |
O-RING - Call your local BRP dealership |
| 58 |
250200019 |
WASHER - Call your local BRP dealership |
| 59 |
232291413 |
Hex. Flange Castellated Nut M18 This part replaces 250100047. |
| 60 |
250400036 |
Cotter Pin This part replaces 250400016. |
| 61 |
705400552 |
Rubber Bellow This part replaces 705400066. |
| 62 |
293750001 |
Tie Wrap 94 mm |
| 63 |
705400012 |
WHEEL CAP - Call your local BRP dealership |
| 64 |
705402890 |
Tire 205 X 80 R12 This part replaces 705400009. |
| 66 |
705400193 |
Rim Valve With Cap |
| 67 |
705400013 |
HEX. NUT - Call your local BRP dealership |
| 68 |
211200041 |
Washer |
| 69 |
207581646 |
Hex. Flange Screw M8 X 16, Scotch Grip |
| 70 |
293250090 |
Oil Seal |
| 71 |
705400016 |
Wear Ring |
| 72 |
705600342 |
Disc Brake 205 mm |
| 73 |
235381646 |
Torx Screw M8 X 16, Scotch Grip |
| 74 |
250200014 |
Flat Washer M10 |
| 75 |
250000060 |
Flange Screw M10 X 16, Scotch Grip |
| 76 |
779221 |
JET PUMP OIL SYNTHETIC 6 FL OZ / 178 ML This part replaces 293600011. |
| 77 |
293550010 |
Synthetic Grease, 400 G |
| 705400129 |
Joint |
Plongeant GA 705400129 |
| 705400129 |
LH |
Plunging Joint 705400129 |
| 709400097 |
LH |
KNUCKLE - Call your local BRP dealership 709400097 |
| 709400097 |
Porte-Fusée |
GA - Appelez votre concessionnaire BRP local 709400097 |
