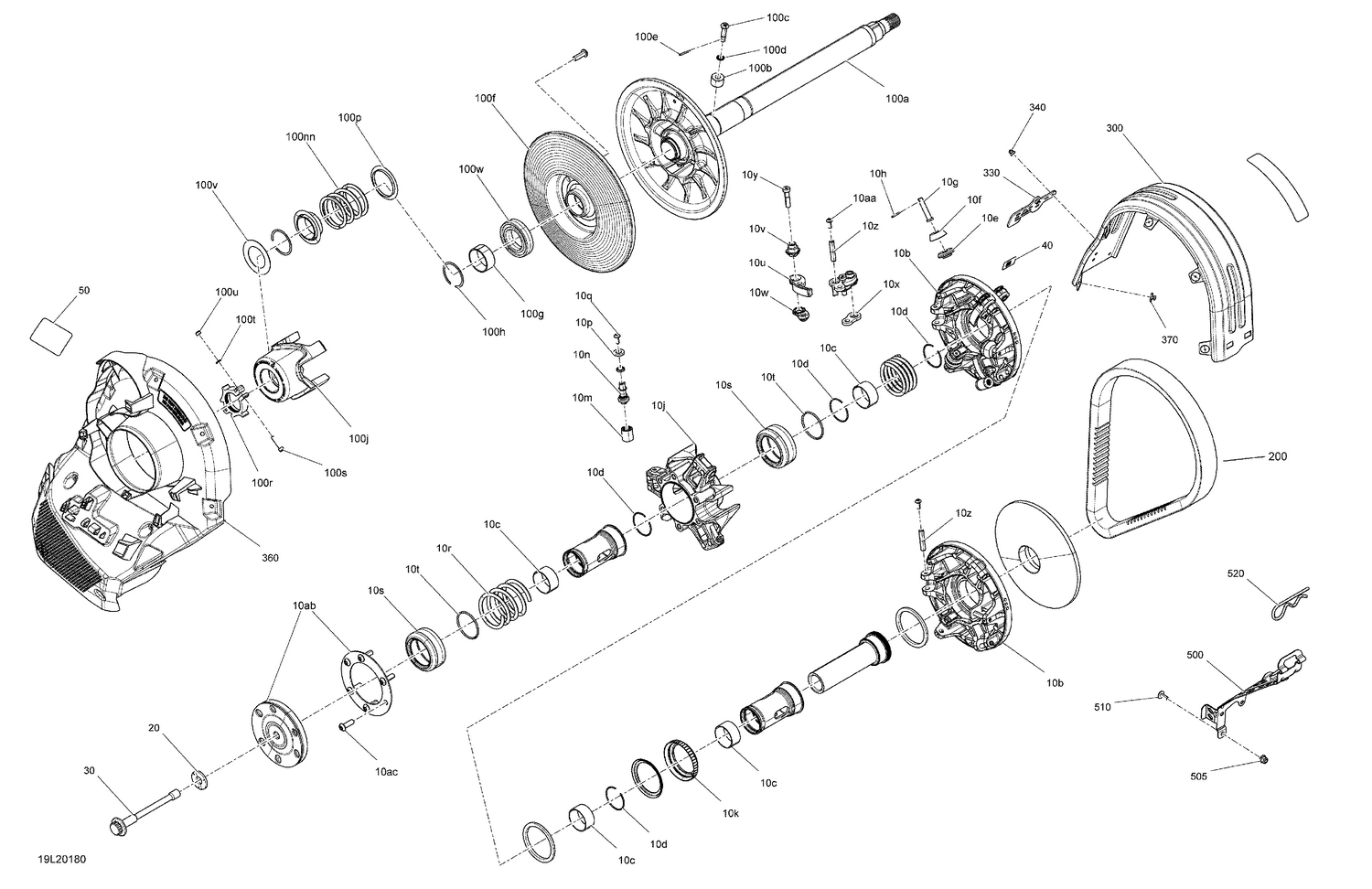

05- Pulley - System
Parts (50)
| Ref | Part Number | Description |
|---|---|---|
| 10aa | 250000763 | Torx-Truss M/S M5 X 14 S.Grip |
| 10ab | 417224682 | VIbration Damper This part replaces 417223994. |
| 10ac | 250000757 | Screw-Torx Button Head M8 X 25 S.Gr |
| 10c | 293250389 | Bushing |
| 10d | 293370137 | Circlip This part replaces 293370117. |
| 10e | 417224153 | Back Torque Roller |
| 10f | 417224916 | Pulley Roller Ext This part replaces 417224458. |
| 10g | 417224510 | Pin This part replaces 417224191. |
| 10h | 250400101 | Spring Pin 2.6MM X 20.5MM This part replaces 250400074. |
| 10k | 417224614 | Spring Guide |
| 10m | 417224947 | Roller Pulley Ass'y This part replaces 417224285. |
| 10n | 417224204 | Axle - 10mm |
| 10p | 417224868 | Thrust Washer This part replaces 417224009. |
| 10q | 250000763 | Torx-Truss M/S M5 X 14 S.Grip |
| 10r | 417224172 | Clutch Spring |
| 10s | 417224003 | Seat Spring |
| 10t | 293370116 | Circlip |
| 10u | 417224227 | Rampe 968 |
| 10v | 417224113 | Molded Cam |
| 10w | 417224086 | RH Lever |
| 10x | 417224114 | LH Lever |
| 10y | 417224221 | Pivot 33mm |
| 10z | 417224694 | Pin Ramp This part replaces 417223631. |
| 20 | 250200144 | Conical Spring Washer M14 |
| 30 | 417300522 | Pulley Drive Bolt M14 X 144 |
| 40 | 516009933 | Pulley Warning Decal |
| 50 | 516009540 | Décalque Cliquet Rampe |
| 100b | 417127016 | Roller |
| 100c | 417127294 | Torx Screw M8 x 25, Scotch Grip |
| 100d | 250200009 | Ribbed Lock Washer 8 mm |
| 100e | 250400070 | Spring Pin |
| 100g | 417127318 | Bushing ID 41mm OD 45mm X 19mm L |
| 100h | 293370049 | Spacer (1.91/2.21mm) |
| 100n | 417127137 | Spring (Green, 800-1350N / 179-303lbs) |
| 100p | 417127116 | Swivel Abutment |
| 100r | 415129604 | Pulley Adjuster Ass'y |
| 100s | 250000981 | Socket Screw M5 X 25 |
| 100t | 234051410 | Flat Washer M5 |
| 100u | 232551414 | Elastic Stop Nut M5 |
| 100v | 417127155 | Washer |
| 100w | 504152574 | Ball Bearing |
| 200 | 417300571 | Drive Belt |
| 300 | 417300620 | Belt Guard This part replaces 417300479. |
| 330 | 417300561 | Front, Retaining Hook |
| 340 | 390909200 | Avex Rivet |
| 360 | 417300553 | CVT Duct Cooling |
| 370 | 293150103 | Pop Rivet 3/16 |
| 500 | 417300577 | Support Garde Arrière |
| 505 | 233261466 | Hex. Flanged Elastic Nut M6 |
| 510 | 250000755 | Torx Screw M6 X 16 |
