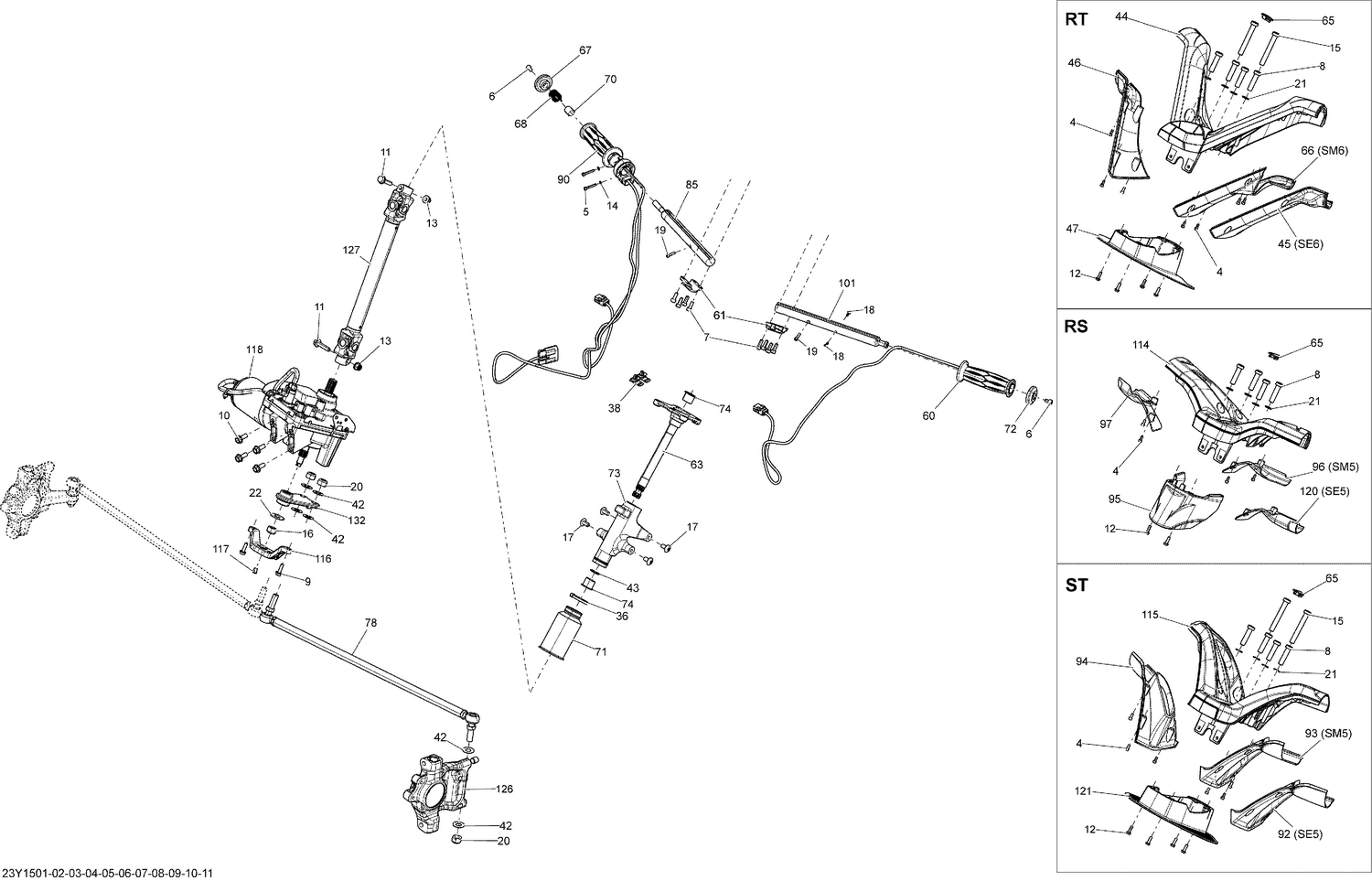

| Ref | Part Number | Description |
|---|
| 4 |
205041054 |
Screw-Socket Hd.DIN.912 This part replaces 205041094. |
| 5 |
205042594 |
Socket Screw, M4 X 25 |
| 6 |
205061054 |
Screw-Socket Hd.Din.912 This part replaces 205061094. |
| 7 |
205561644 |
Socket Screw M6 X 16, Scotch Grip |
| 8 |
250000456 |
Thin Socket Screw M10 X 40, Scotch Grip |
| 9 |
207562034 |
Hex. Flange Screw M6 X 20, Scotch Grip |
| 10 |
207582044 |
Hex. Flange Screw M8 X 20, Scotch Grip |
| 11 |
250001021 |
Hex. Flange Screw M8 X 35 This part replaces 207583587. |
| 12 |
210251650 |
Hex. Forming Screw M5 X 16 This part replaces 210251680. |
| 13 |
232081417 |
Hex. Nut M8 |
| 13a |
503189157 |
Washer |
| 14 |
234040600 |
Flat Washer 4 mm |
| 15 |
250000659 |
Thin Socket Screw, Scotch Grip, M10 X 70 |
| 16 |
250100089 |
Hex. Elastic Hex. Nut M12 |
| 17 |
250000746 |
Torx Truss Screw M8 X 16 This part replaces 250000198. |
| 18 |
250000453 |
Torx Cutting Screw, M4 X 10 |
| 19 |
250000494 |
Socket Screw, M4 X 16 Scotch Grip |
| 20 |
250100089 |
Hex. Elastic Hex. Nut M12 |
| 21 |
250200105 |
Stainless Flat Washer, 10 mm |
| 22 |
250200113 |
Flat Washer, 12 mm |
| 36 |
414115200 |
Tie-Rap 180 mm |
| 38 |
515175283 |
Housing Support |
| 42 |
706200281 |
Hardened Washer This part replaces 250200086. |
| 43 |
709000089 |
O-Ring |
| 44 |
709401919 |
Carbon Black, Handlebar, Texture This part replaces 709401194. |
| 46 |
709400578 |
RH Steering Cover |
| 47 |
709400579 |
Handlebar Central Cover |
| 60 |
709400625 |
Heating Handle Grip |
| 61 |
709400631 |
Handlebar Clamp |
| 63 |
709401682 |
Steering Colum, Black This part replaces 709400774. |
| 65 |
709401292 |
DEEP BLACK CAP - Call your local BRP dealership |
| 67 |
219800381 |
Bushing End Piece Kit This part replaces 709400765. |
| 68 |
709401937 |
Spring This part replaces 709400773. |
| 70 |
219800381 |
Bushing End Piece Kit This part replaces 709400782. |
| 71 |
709400790 |
Bellows |
| 72 |
709400793 |
Handlebar End Piece LH |
| 74 |
Not |
Available As Spare Part - Cushion |
| 78 |
709401821 |
Tie Rod Ass'y This part replaces 709401481. |
| 85 |
709401150 |
RH HANDLEBARS - Call your local BRP dealership |
| 90 |
709402720 |
Heated Throttle Grip This part replaces 709400929. |
| 92 |
XXX |
Not Available As Spare Parts |
| 93 |
XXX |
Not Available As Spare Parts |
| 94 |
XXX |
Not Available As Spare Parts |
| 95 |
XXX |
Not Available As Spare Parts |
| 96 |
XXX |
Not Available As Spare Parts |
| 97 |
XXX |
Not Available As Spare Parts |
| 101 |
709401152 |
LH Handlebars |
| 114 |
XXX |
Not Available As Spare Parts |
| 115 |
XXX |
Not Available As Spare Parts |
| 116 |
709401574 |
SENSOR SUPPORT - Call your local BRP dealership |
| 117 |
709401527 |
Sensor Sleave |
| 118 |
709401564 |
Power Steering |
| 120 |
XXX |
Not Available As Spare Parts |
| 121 |
XXX |
Not Available As Spare Parts |
| 126 |
709401864 |
RH Knuckle This part replaces 709401583. |
| 126 |
709401865 |
LH Knuckle This part replaces 709401584. |
| 127 |
709401411 |
Lower Steering Column |
