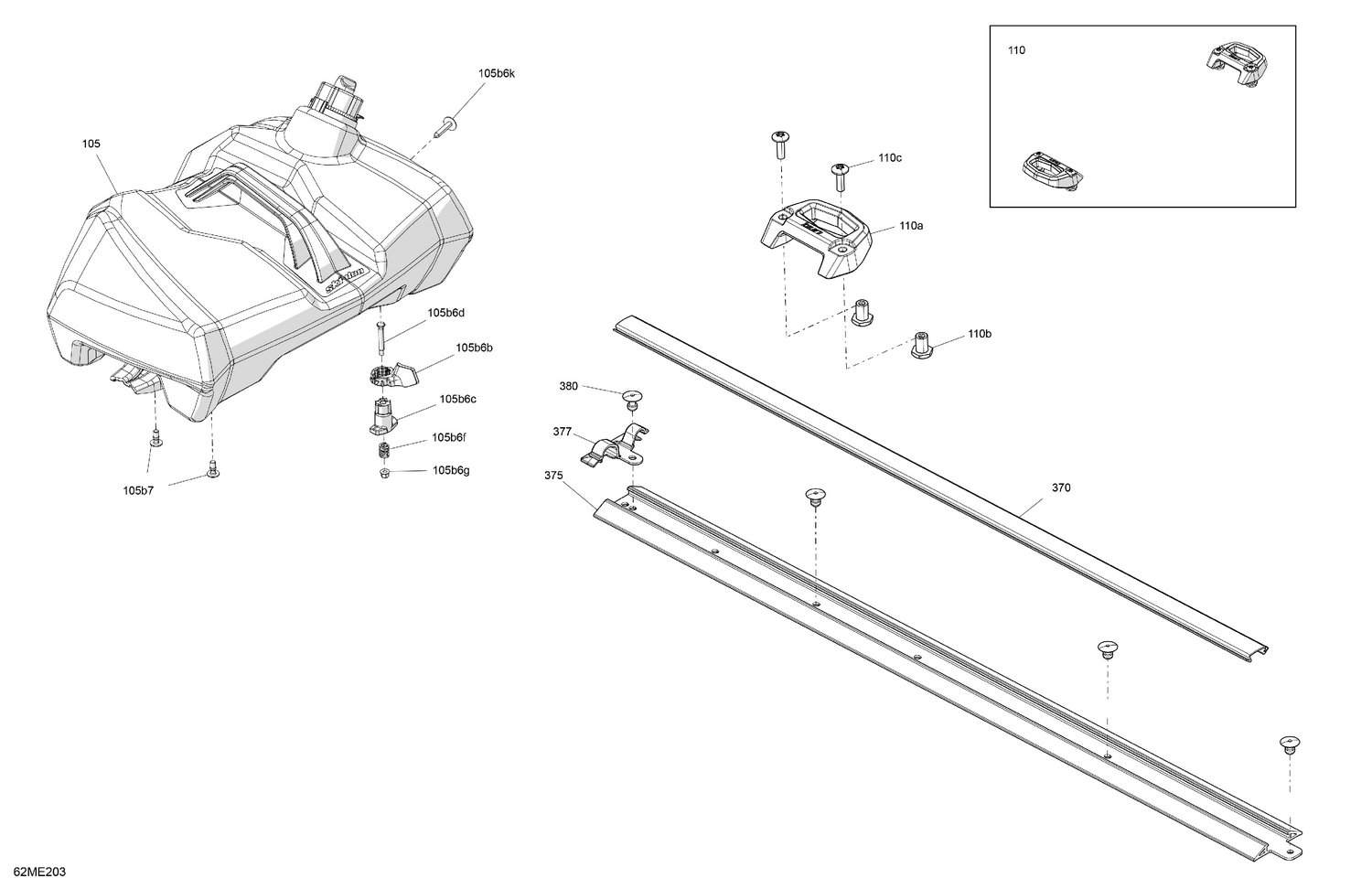

07- Body - Cargo
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 105b6b | 708200374 | RH Lever |
| 105b6c | 708200267 | RH Latch |
| 105b6d | 708200152 | STEM - Call your local BRP dealership |
| 105b6f | 708200263 | Spring |
| 105b6g | 233251494 | Elastic Flange Nut M5 |
| 105b6k | 293150067 | Rivet |
| 105b7 | 229000335 | M6 X 16 Torx Shoulder Bolt |
| 110a | XXX | Not Available As Spare Parts |
| 110b | 511000822 | Threaded Insert |
| 110c | 250000446 | Torx Screw M6 X 20, Scotch Grip |
| 370 | 520002921 | Extruded Trim |
| 375 | 520002930 | Grommet |
| 377 | 520001722 | Cap |
