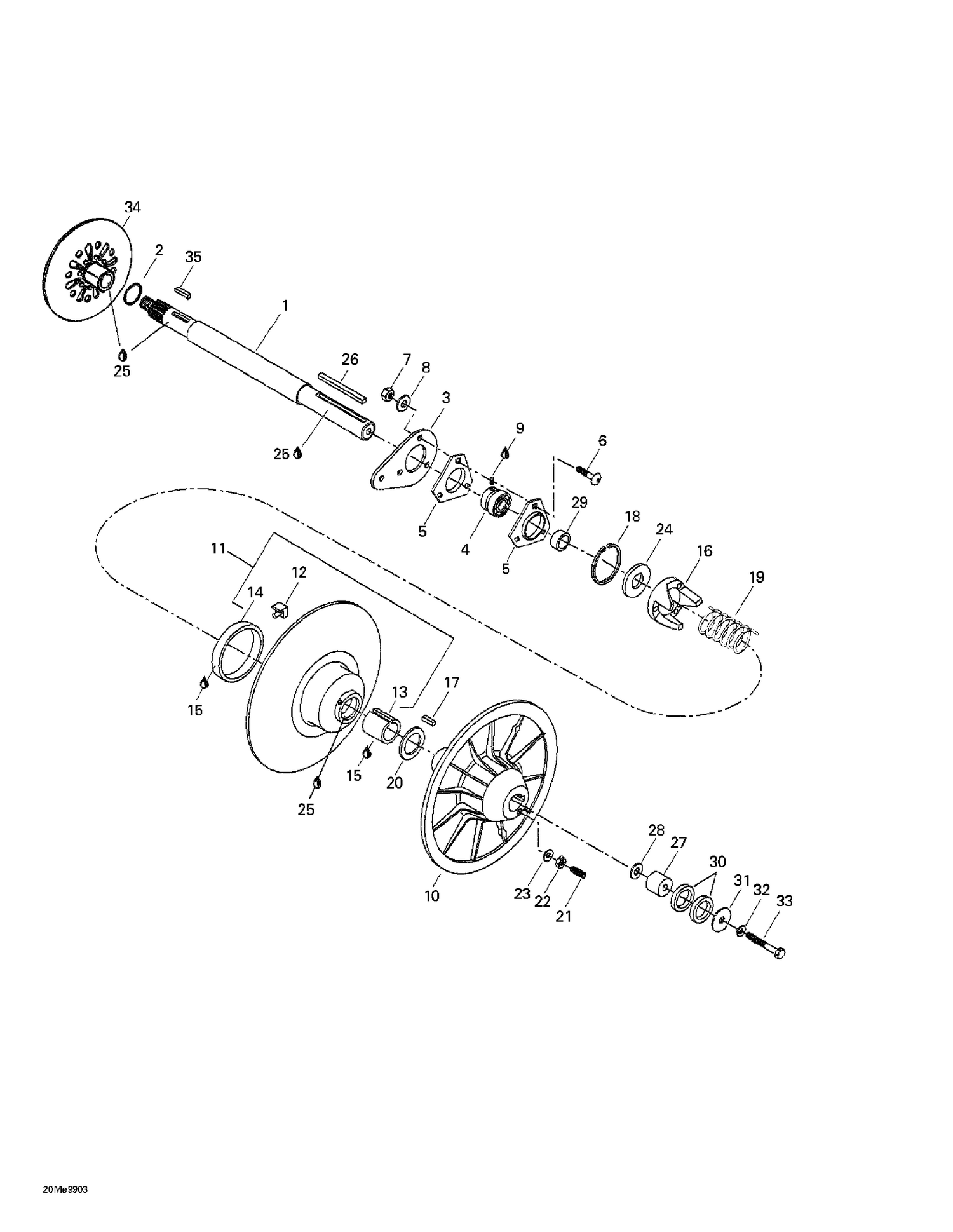

| Ref | Part Number | Description |
|---|
| 1 |
504149300 |
Countershaft |
| 2 |
371910000 |
Circlip |
| 3 |
501022300 |
Spacer |
| 4 |
405408300 |
BALL BEARING WITH COLLAR - Call your local BRP dealership |
| 5 |
501025000 |
FLANGE - Call your local BRP dealership |
| 6 |
205482546 |
SOCKET HEAD SCREW M8 X 25 - Call your local BRP dealership |
| 7 |
232581414 |
Hex. Elastic Stop Nut M8 |
| 8 |
234081410 |
Flat Washer 8 mm This part replaces 224081171. |
| 9 |
293800060 |
Loctite 243, 10 ml This part replaces 293800015. |
| 10 |
504141600 |
Fixed Flange |
| 12 |
414918000 |
CAM SLIDER SHOE - Call your local BRP dealership |
| 13 |
415011200 |
BUSHING - Call your local BRP dealership |
| 14 |
414876600 |
GARLOCK BUSHING - Call your local BRP dealership |
| 15 |
413703100 |
Loctite 609, 10 ml |
| 17 |
414820800 |
Key |
| 18 |
371903100 |
CIRCLIP - Call your local BRP dealership |
| 19 |
414558900 |
RELEASE SPRING, BEIGE - Call your local BRP dealership |
| 20 |
504141900 |
Thrust Washer |
| 21 |
206263044 |
Socket Set Screw M6 X 30 |
| 22 |
232061414 |
Hex. Nut M6 This part replaces 228061045. |
| 23 |
420245370 |
WASHER - Call your local BRP dealership |
| 24 |
504141800 |
Washer |
| 25 |
219704461 |
LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership |
| 26 |
414581300 |
Key |
| 27 |
504091600 |
Counter Shaft Extension |
| 28 |
224081201 |
FLAT WASHER - Call your local BRP dealership |
| 29 |
504128300 |
Shim |
| 30 |
504108200 |
SHIM - Call your local BRP dealership |
| 30 |
Not |
Available As Spare Part - Loctite 277, 10 cc |
| 31 |
517078700 |
WASHER - Call your local BRP dealership |
| 32 |
234181401 |
Lock Washer 8 mm This part replaces 224781140. |
| 33 |
207086544 |
Hex. Screw M8 x 65 This part replaces 222086565. |
| 34 |
507032203 |
Brake Disk |
