Parts Catalog

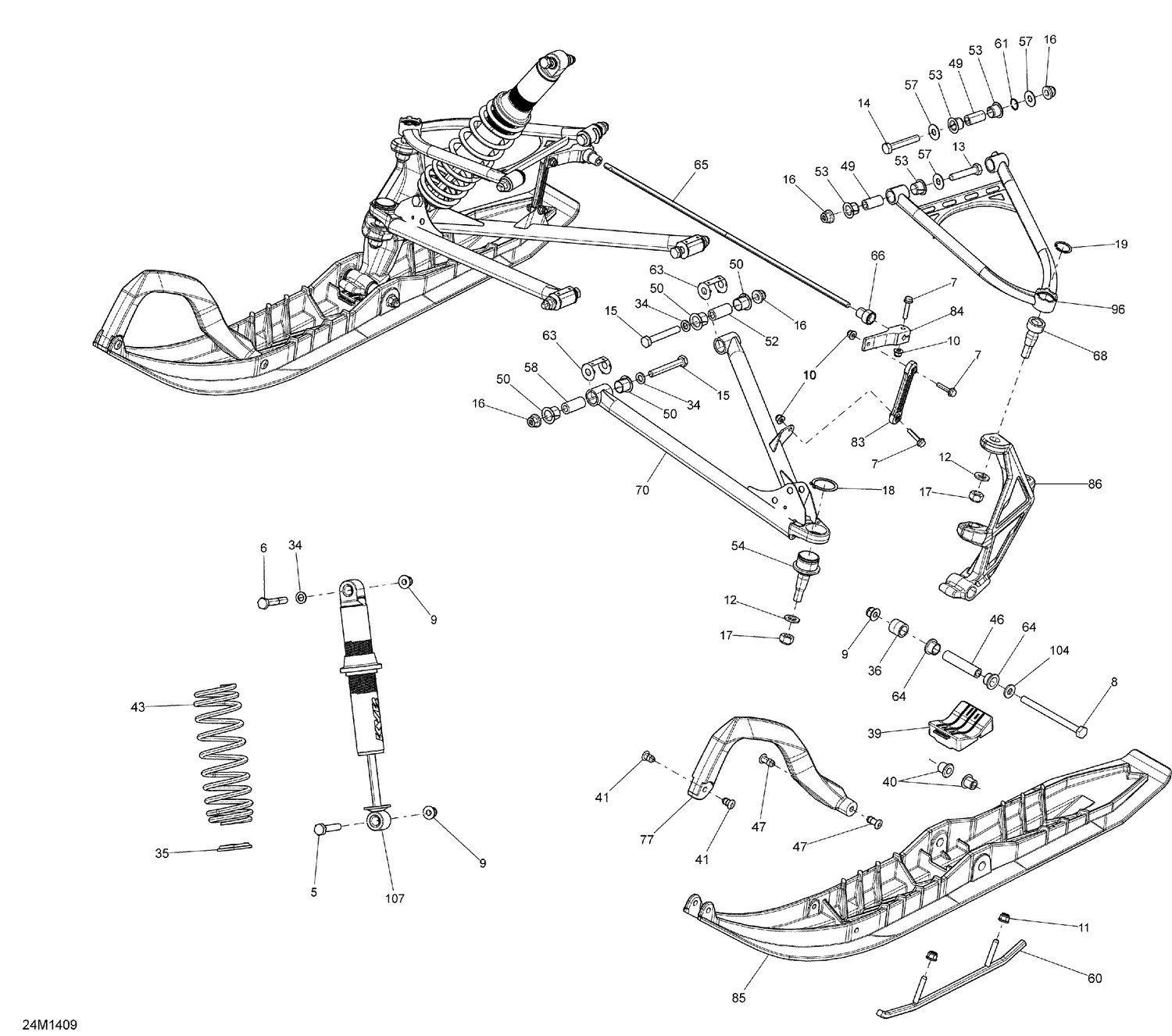

07- Front Suspension And Ski

Parts (49)

Ref	Part Number	Description
5	207005554	Hex Screw M10 X 1.5 X 55
6	207006544	Hex. Screw M10 X 1.5 X 65
7	207663056	Hex. Flange Screw M6 X 1.0 X 30
8	250000703	Hex. Screw M10 X 130 This part replaces 230003054.
10	233261466	Hex. Flange Elastic Nut M6
11	233281414	Hex. Flange Elastic Nut M8
12	503192491	Washer
13	250001022	Screw Hex. M10 X 50 This part replaces 250000289.
14	250001023	Screw Hex. M10 X 60 This part replaces 250000290.
15	250001024	Screw Hex. M10 X 70 This part replaces 250000291.
16	250100165	Hex. Flange Elastic Nut M10
17	232521464	Hex Elastic Nut M12 X 1.25
18	293370035	Circlip
19	293370070	Circlip
34	503189564	Washer
35	503194270	Spring Stopper This part replaces 503192608.
36	503193651	Spacer
39	505072594	Ski Stopper
40	505071781	Ski Bushing
41	505071812	Retainer 17mm long
43	505072726	DEEP BLACK SPRING - Call your local BRP dealership
46	506133300	Spacer
47	505072133	Retainer 23mm Long
49	505072143	Sleeve
50	505072208	Bushing
52	505072214	Bushing
53	505072250	Bushing
54	505073636	Ball Joint This part replaces 505072682.
57	505072392	Washer
60	860201044	Carbide Runner Kit (Square Runner)
61	505072448	O-Ring
63	505072634	Wear Plate
64	505072690	Leg Bushing
65	505072785	STABILISATOR - Call your local BRP dealership
66	505072786	Bushing
68	505072913	Upper Ball Joint
70	505073039	Black, LH Lower Arm
70	505073040	Black, Lower Arm RH
77	505072976	Black, Handle
77	505073388	Red, Handle
83	505073172	Double Ball Joint Link
84	505073176	Stabilisator Lever
85	505073227	Black, Ski This part replaces 505073281.
86	505073238	BLACK LH SKI LEG - Call your local BRP dealership
86	505073239	BLACK RH SKI LEG - Call your local BRP dealership
86	505073565	CAN-AM RED LH SKI LEG - Call your local BRP dealership
86	505073566	CAN-AM RED RH SKI LEG - Call your local BRP dealership
96	505073466	Black Upper Arm LH 36"
96	505073467	Black Upper Arm RH 36"
