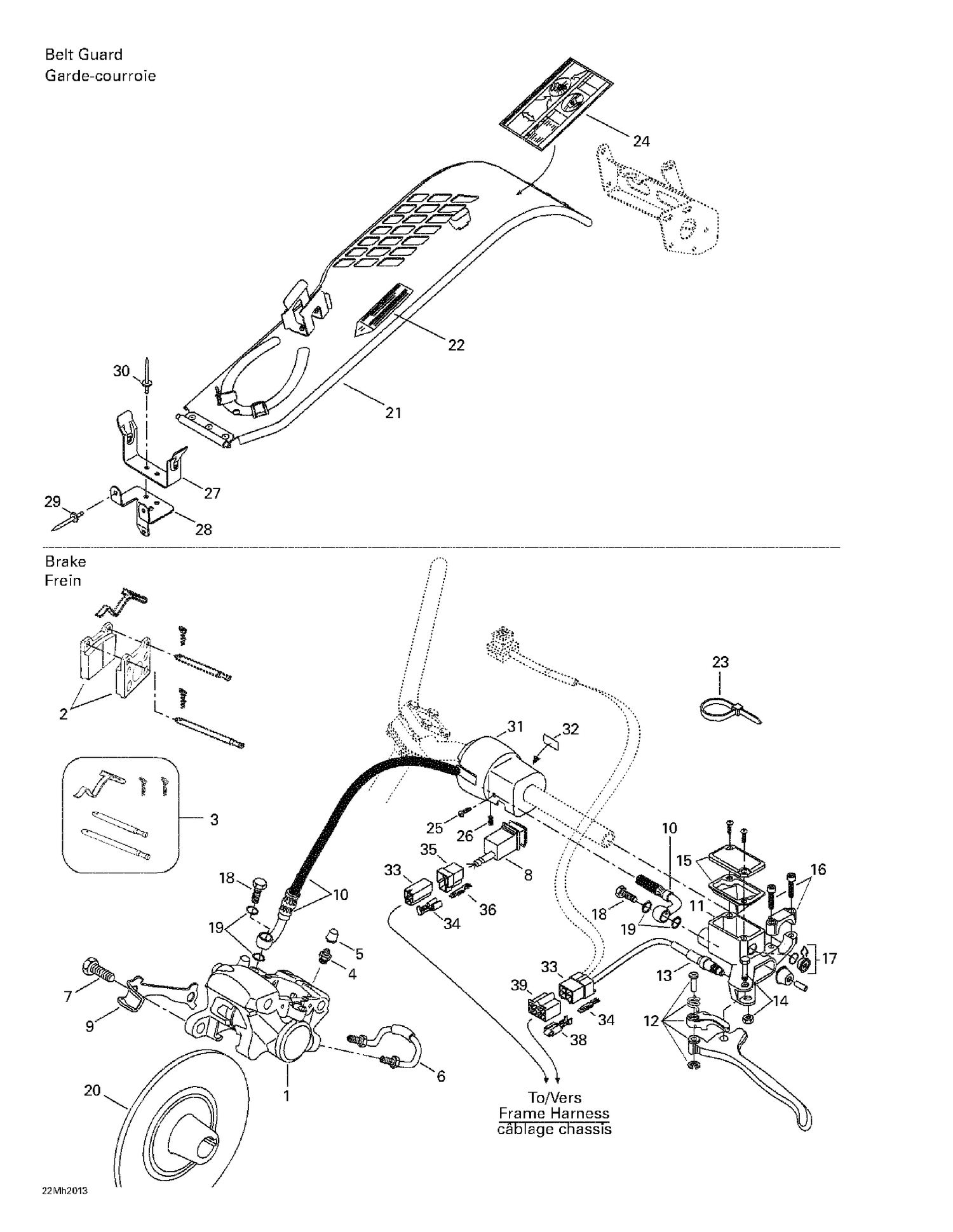

| Ref | Part Number | Description |
|---|
| 2 |
415084600 |
Brake Pad Kit This part replaces 414990000. |
| 3 |
414990700 |
KIT, PINS, RETAINERS, SPRING - Call your local BRP dealership |
| 4 |
414989800 |
BLEEDER SCREW - Call your local BRP dealership |
| 5 |
414989700 |
BOOT-QTS 20 - Call your local BRP dealership |
| 6 |
414989900 |
RIGID TUBING - Call your local BRP dealership |
| 7 |
207103544 |
Hex. Screw M10 X 35 |
| 8 |
515175423 |
Switch |
| 9 |
507031900 |
Locking Tab |
| 10 |
507032220 |
Hose |
| 12 |
507032428 |
LEVER - Call your local BRP dealership This part replaces 415075300. |
| 13 |
507032366 |
Microswitch This part replaces 507032284. |
| 14 |
415030000 |
Pin Ass'y |
| 15 |
415029900 |
Cap |
| 16 |
507032477 |
Clamp And Screw Kit This part replaces 415029800. |
| 17 |
414990600 |
WINDOW - Call your local BRP dealership |
| 18 |
414920500 |
Banjo Bolt |
| 19 |
414920600 |
Washer |
| 20 |
507031300 |
BRAKE DISK - Call your local BRP dealership |
| 22 |
516002670 |
WARNING DECAL, SECURITY BELT GUARD - Call your local BRP dealership This part replaces 516000132. |
| 23 |
414115200 |
Tie-Rap 180 mm |
| 24 |
418001715 |
Suspension Adjustment Decal |
| 25 |
250000022 |
SCREW-THREAD CUT.PH.PAN TYPE25 - Call your local BRP dealership |
| 26 |
414440800 |
Socket Set Screw M8 X 10 |
| 27 |
518202100 |
Belt Guard Bracket |
| 28 |
518317000 |
Pulley Guard Support |
| 29 |
293150104 |
Pop Rivet 3/16" This part replaces 390409600. |
| 30 |
390402200 |
Pop Rivet 3/16" |
| 31 |
515175307 |
Brake Housing |
| 32 |
415025500 |
Switch Decal |
| 33 |
409204300 |
Female Housing |
| 34 |
561503100 |
FEMALE TERMINAL - Call your local BRP dealership This part replaces 409205300. |
| 35 |
409204200 |
FEMALE HOUSING - Call your local BRP dealership |
| 36 |
409210000 |
MALE TERMINAL - Call your local BRP dealership |
| 37 |
409209300 |
MALE HOUSING - Call your local BRP dealership |
| 38 |
409205000 |
Female Terminal |
