Home / BRP / 2004 / Skandic / Skandic WT/SWT 550F , 2004 / 08- Rear Suspension

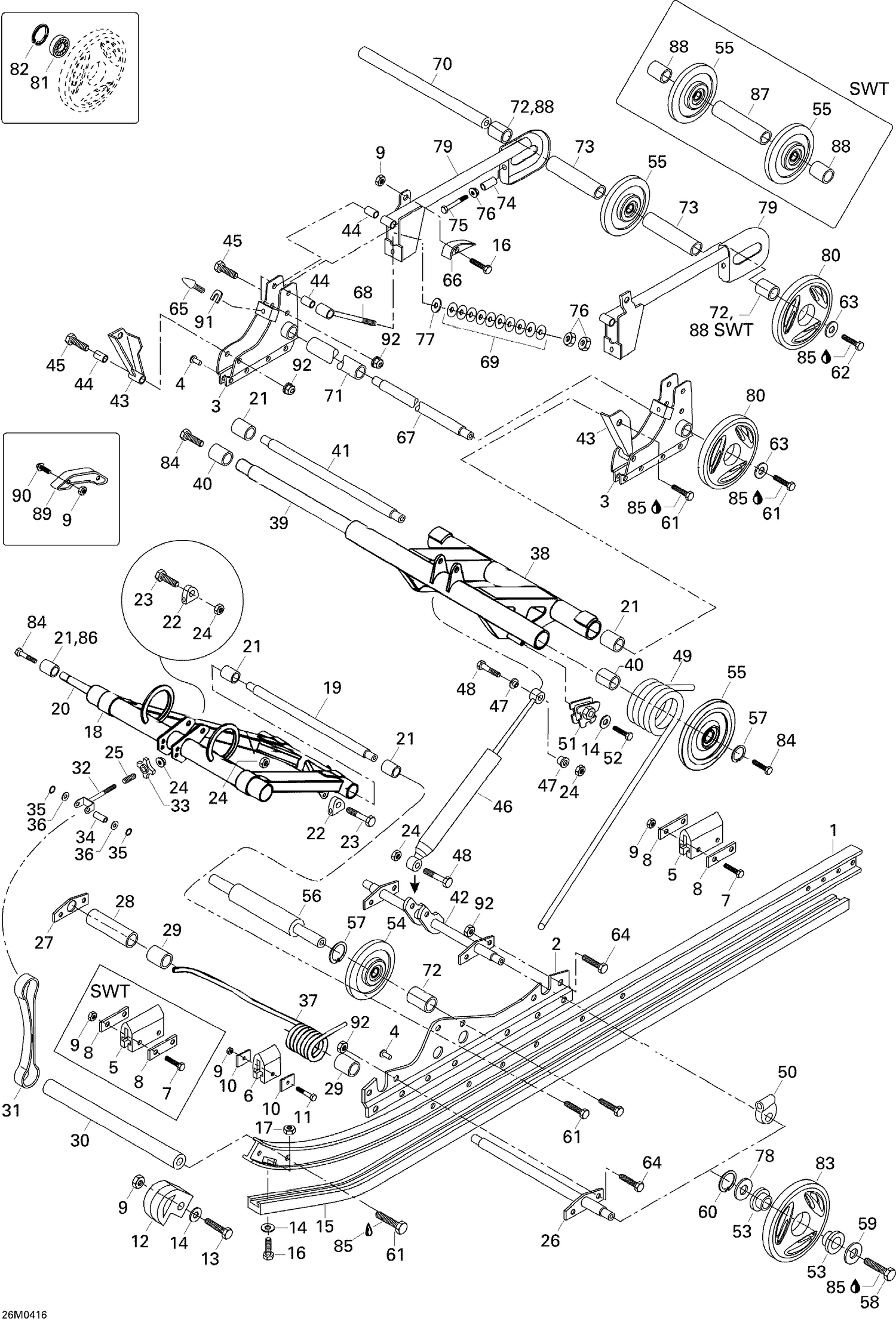

08- Rear Suspension

08- Rear Suspension

Parts (74)

RefPart NumberDescription
1 5142864 RUNNER - Call your local BRP dealership This part replaces M5142864.
2 5344810 Support Plate Lh This part replaces M5344810.
2 5344811 Support Plate Rh This part replaces M5344811.
3 539672 Support For Rearaxle Lh This part replaces M539672.
3 539673 Support For Rearaxle Rh This part replaces M539673.
4 M544212 RIVET - Call your local BRP dealership
8 M548387 Washer
12 605348954 Runner Protector
13 207162544 Hex. Screw M6 X 25
14 234061410 Flat Washer 6 mm
15 M549582 Runner Shoe
16 207162044 Hex. Screw M6 X 20
17 232561414 Elastic Stop Nut M6
19 549695 Shaft This part replaces M549695.
22 548799 Spring Roller This part replaces M548799.
23 207004044 Hex. Screw M10 X 40
24 233601416 Elastic Locking Nut M10 X 1.5
25 414460600 SPRING - Call your local BRP dealership
26 M5345453 Axle
27 M548469 Plate Support
28 M5440313 Sleeve
29 M548841 Sleeve
30 M549718 Cross Shaft
31 5442604 STOPPER STRAP - Call your local BRP dealership This part replaces M5442604.
32 M5441643 Bolt-Eye Adjuster
33 572034000 ADJUSTER KNOB - Call your local BRP dealership
34 M5441645 Pin
35 M41035 Circlip
36 234001410 Flat Washer 10 mm
40 31023 Bearing This part replaces M31046.
41 549656 Swing shaft - Call your local BRP dealership This part replaces M549656.
42 5345454 SHAFT - Call your local BRP dealership This part replaces M5345454.
43 5440349 Crank Arm Lh This part replaces M5440349.
43 5440350 Crank Arm R.H. This part replaces M5440350.
44 545758 Spacer This part replaces M545758.
45 207084544 Hex. Screw M8 X 45
47 544417 Shock Spacer - Call your local BRP dealership This part replaces M544417.
48 207005044 Hex. Screw M10 X 1.5 X 50
49 538805 Spring L.H. This part replaces M538805.
49 538806 Spring R.H. This part replaces M538806.
51 572030800 LH ADJUST CAM - Call your local BRP dealership
51 572030900 RH ADJUST CAM - Call your local BRP dealership
52 207161044 HEX. SCREW M6 X 10 - Call your local BRP dealership
53 503189534 Cushion
56 M549680 Support Shaft
57 31001 Retaining Ring 25X2 Din471(1=10Pcs) This part replaces M31001.
58 40336 HEX. SCREW M8 X 20 - Call your local BRP dealership This part replaces M40336.
59 503183100 Washer
60 293370056 Circlip 20X1.75 DIN471 This part replaces M31007.
61 40335 Hex Sc. M10X 30 Bn73 M8.8 Zne(1=10Pcs) This part replaces M40335.
62 M40050 Hex. Screw With Nylon Patch
63 503183300 Washer
64 207181644 Hex. Screw M8 x 16
65 535455 Rubber Stopper - Call your local BRP dealership This part replaces M535455.
66 M548262 Protector
67 541816 Axle This part replaces M541816.
68 5440377 BOLT-EYE ADJUSTER - Call your local BRP dealership This part replaces M5440377.
69 25004 Cup Spring This part replaces M25004.
71 M541815 Sleeve
72 M546577 Sleeve
74 546668 Spacer - Call your local BRP dealership This part replaces M546668.
75 M40239 SCREW - Call your local BRP dealership
77 234002410 Flat Washer 10 mm This part replaces M20011.
78 M31091 SHIM - Call your local BRP dealership
79 605251783 EXTENSION TUBE LH - Call your local BRP dealership This part replaces M5243223.
79 605251784 EXTENSION TUBE RH - Call your local BRP dealership This part replaces M5243222.
80 503190817 Wheel 165 mm Yellow This part replaces 503189566.
81 293350115 Ball Bearing This part replaces M31009.
82 31002 Retaining Ring (1=10Pcs) This part replaces M31002.
84 40314 Hex Sc. M10x 30 BN73 m8.8 MUP(1=10pcs) - Call your local BRP dealership This part replaces M40314.
85 293800060 Loctite 243, 10 ml
91 5440645 Adjustment Plate This part replaces M5440645.
92 232581414 Hex. Elastic Stop Nut M8
293350115 Ball Bearing This part replaces 503189567. 293350115
