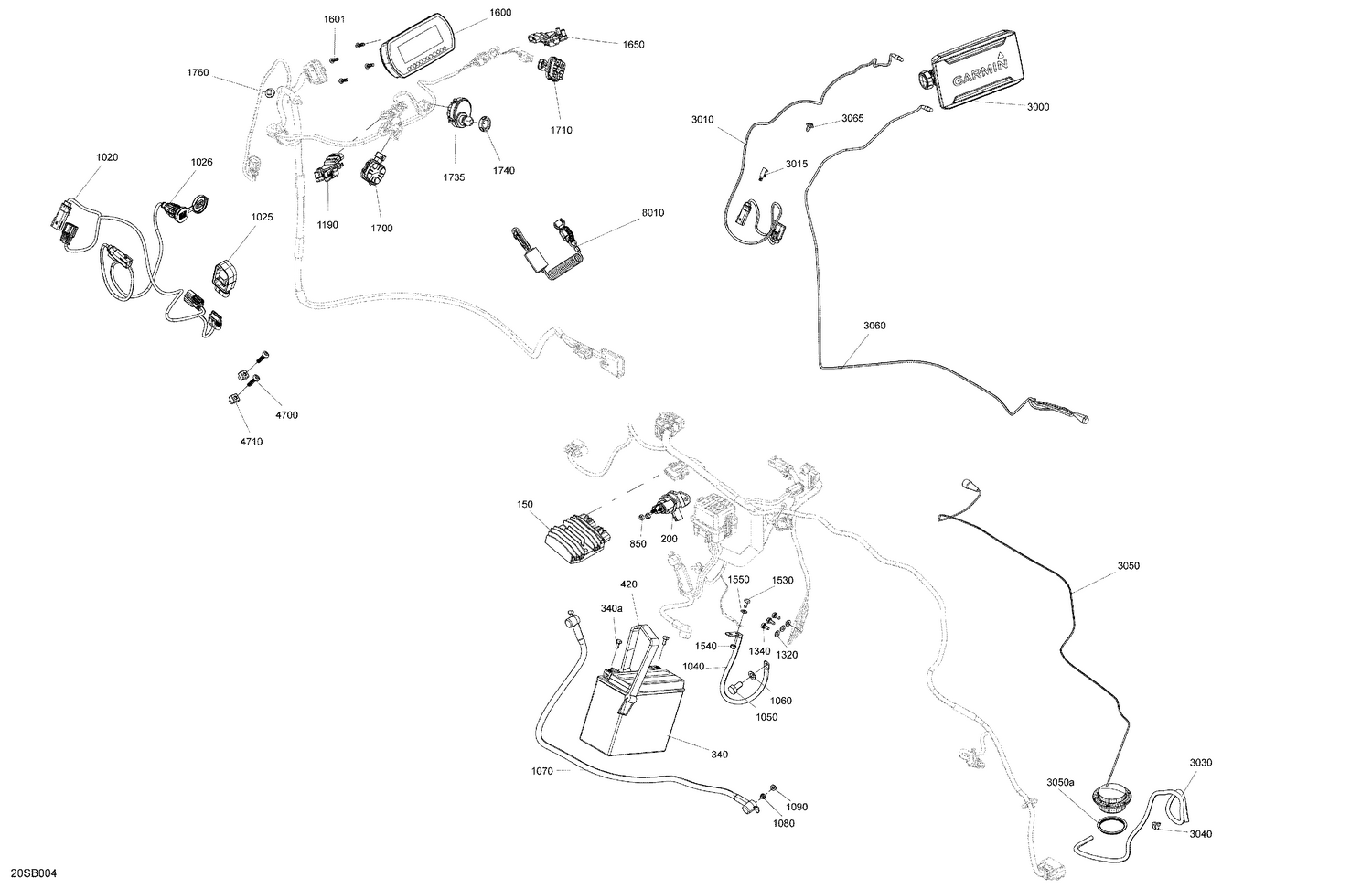

08- Electric - System
Parts (37)
| Ref | Part Number | Description |
|---|---|---|
| 150 | 710001103 | Voltage Regulator |
| 200 | 278003012 | Starter Relay |
| 340a | 250000282 | Battery Bolt Kit |
| 420 | 293850141 | Strap |
| 850 | 232561200 | Brass Elastic Stop Nut M6 |
| 1020 | 295100710 | USB Charger Cable Ass'y |
| 1025 | 295100710 | USB Charger Cable Ass'y |
| 1026 | 295100710 | USB Charger Cable Ass'y |
| 1040 | 278003451 | Ground Battery Cable |
| 1050 | 207361260 | Hex. Screw M6 X 12, Scotch Grip |
| 1060 | 234061600 | Stainless Flat Washer M6 |
| 1070 | 278003369 | Starter Cable |
| 1080 | 232561200 | Brass Elastic Stop Nut M6 |
| 1090 | 234061600 | Stainless Flat Washer M6 |
| 1190 | 278002284 | LH Throttle Sensor |
| 1320 | 207361260 | Hex. Screw M6 X 12, Scotch Grip |
| 1340 | 234061600 | Stainless Flat Washer M6 |
| 1530 | 207361260 | Hex. Screw M6 X 12, Scotch Grip |
| 1540 | 232561200 | Brass Elastic Stop Nut M6 |
| 1550 | 234061600 | Stainless Flat Washer M6 |
| 1600 | 278003430 | Multifunction Mono Compact Gauge |
| 1601 | 241152060 | Hex. Flange Screw K50 X 20 |
| 1650 | 278002283 | Throttle Position Sensor |
| 1700 | 278003821 | Switch |
| 1710 | 278003474 | RH Switch Keypad |
| 1740 | 278002963 | Safety Nut (DESS Switch) |
| 1760 | 293730040 | Mount Dart |
| 3000 | 278003998 | GPS Ass'y |
| 3010 | 278003673 | Echosounder Power Supply Harness |
| 3015 | 515178223 | Clip Connector |
| 3030 | 219704389 | Polyurethane Hose 4000MM Long |
| 3040 | 293730040 | Mount Dart |
| 3050a | 292002447 | Seal |
| 3060 | 278003683 | Transducer Harness |
| 3065 | 293730040 | Mount Dart |
| 4700 | 250001194 | Plastite Screw Torx Cone HD.M6.81X3 |
| 8010 | 278003400 | Safety Lanyard Ass'y, RFID |
