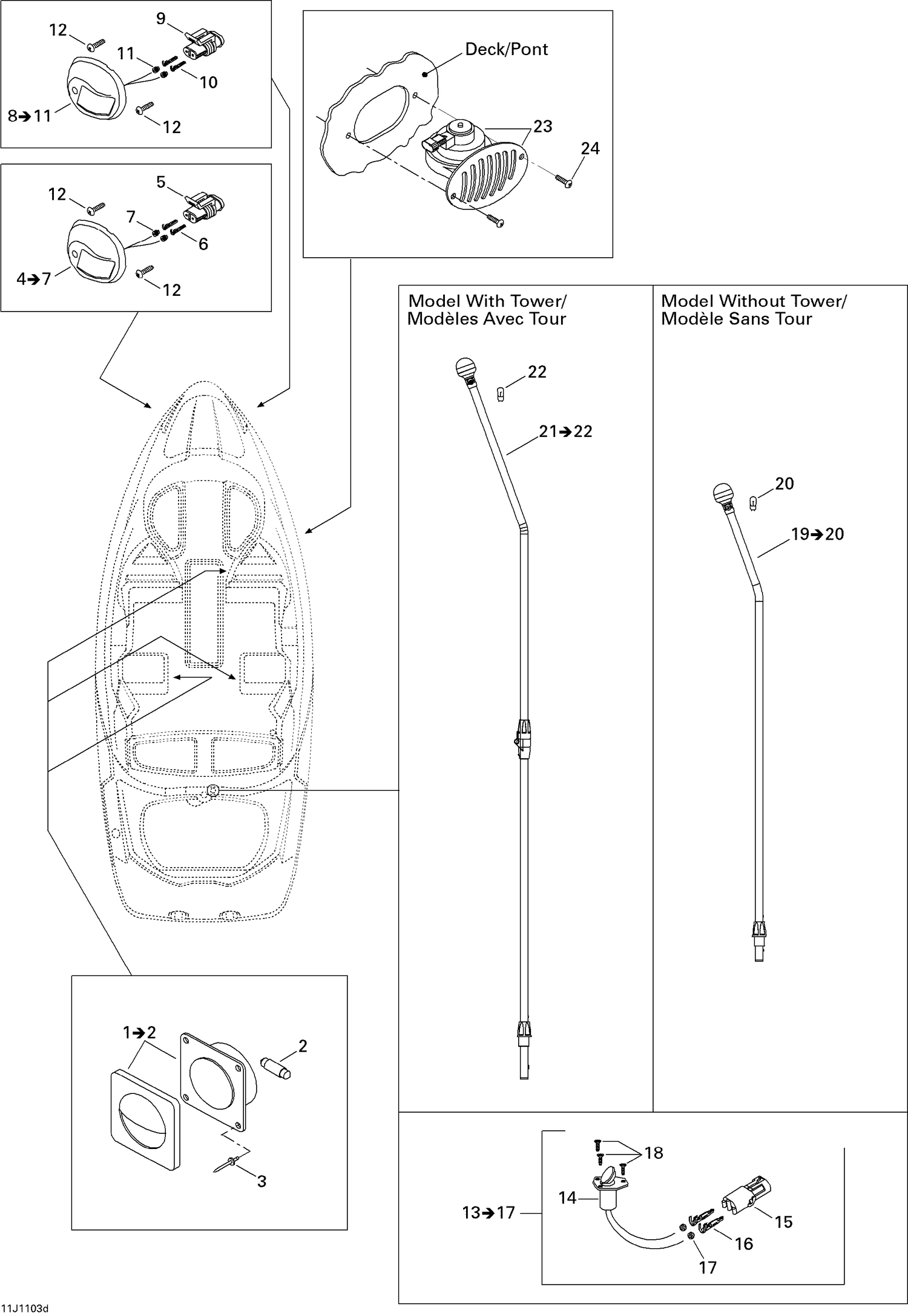

| Ref | Part Number | Description |
|---|
| 2 |
204470081 |
BULB - Call your local BRP dealership |
| 3 |
293150032 |
RIVET_POP 1/8 X ,487 - Call your local BRP dealership |
| 5 |
409209500 |
Female Housing, 2 Circuits |
| 6 |
278001014 |
Female Terminal |
| 7 |
278001013 |
Wire Seal |
| 9 |
409209500 |
Female Housing, 2 Circuits |
| 10 |
278001014 |
Female Terminal |
| 11 |
278001013 |
Wire Seal |
| 12 |
209642560 |
PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership |
| 14 |
204470642 |
REAR LAMP BASE ASSY - Call your local BRP dealership This part replaces 204470643. |
| 15 |
278000217 |
Female Housing, 2 Circuits |
| 16 |
278000222 |
Male Terminal |
| 17 |
278000218 |
Wire Seal |
| 18 |
209943260 |
Phillips Tapping Screw M4.2 X 32 |
| 23 |
204470801 |
HORN - Call your local BRP dealership |
