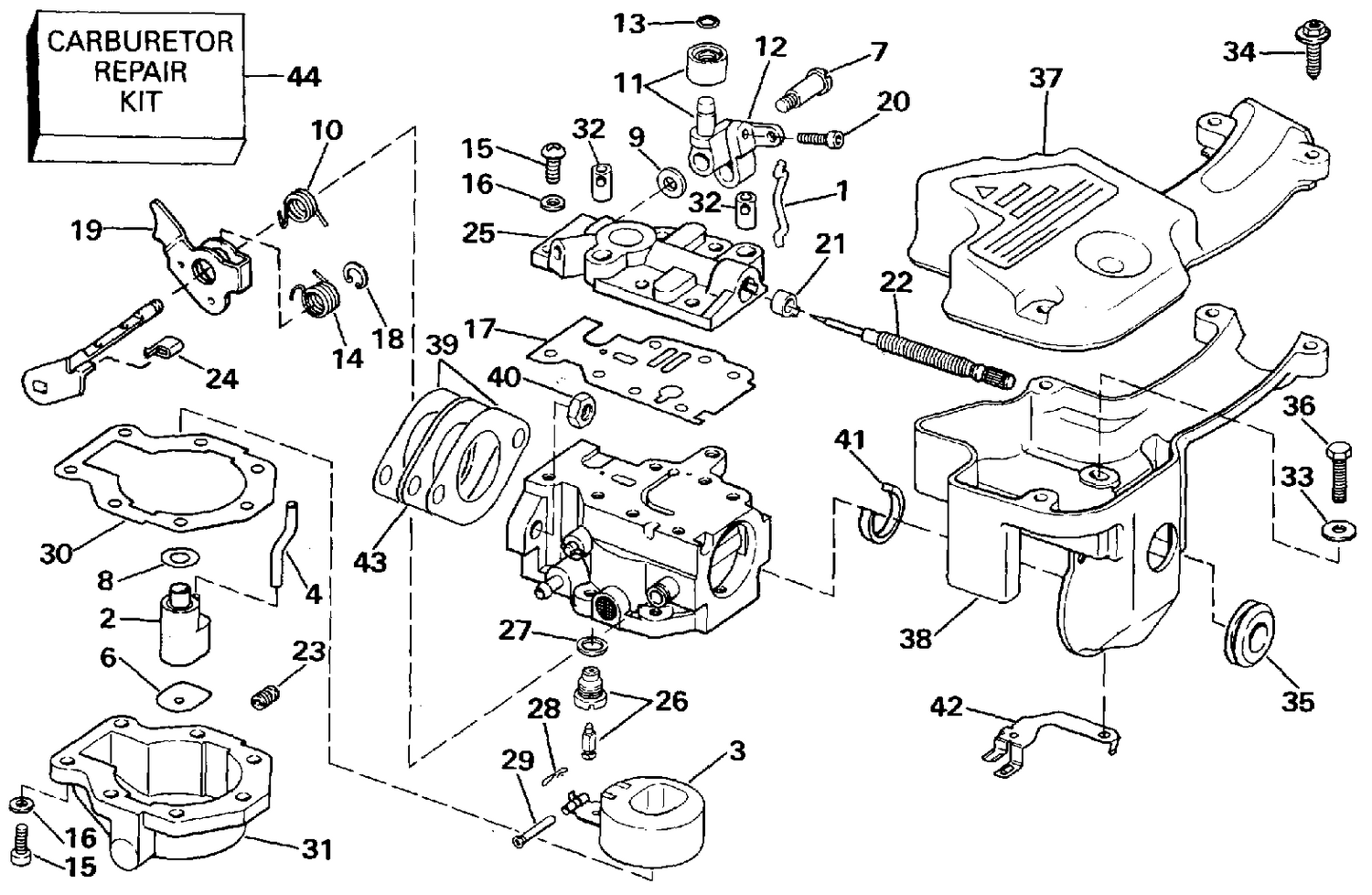

| Ref | Part Number | Description |
|---|
| 2 |
0396605 |
NOZZLE WELL |
| 4 |
0336567 |
FLEX TUBE This part replaces 0331740. |
| 6 |
0333348 |
GASKET, Cover to housing |
| 8 |
0338883 |
GASKET, Upper This part replaces 0333347. |
| 11 |
0396236 |
ROLLER, Cam follower |
| 13 |
0308776 |
O-RING |
| 14 |
0321734 |
SPRING Choke override |
| 16 |
0331831 |
WASHER |
| 17 |
0334043 |
GASKET, Cover |
| 21 |
0315232 |
RETAINER , Needle valve stbd |
| 22 |
0432760 |
NEEDLE VALVE, Slow speed |
| 23 |
0334014 |
ORIFICE PLUG, No. 54 |
| 24 |
0318536 |
SLEEVE |
| 25 |
0334050 |
COVER, Carburetor |
| 28 |
0336842 |
CLIP, SPRING This part replaces 0603145. |
| 31 |
0398068 |
FLOAT CHAMBER This part replaces 0333116. |
| 32 |
0334047 |
SLEEVE, Cover |
| 33 |
0306413 |
WASHER |
| 35 |
0320521 |
GROMMET |
| 36 |
0331758 |
SCREW, Air horn to carburetor |
| 37 |
0330581 |
COVER, Air silencer |
| 38 |
0322120 |
BASE, Air silencer |
| 39 |
0318932 |
JOINT |
| 40 |
0328742 |
NUT |
| 41 |
0319287 |
SEAL, Air silencer |
| 42 |
0336395 |
DETENT, Choke knob This part replaces 0324434. |
| 0432468 |
0432468 |
CARBURETOR ASSEMBLY |
| 0432469 |
0432469 |
CARBURETOR ASSEMBLY |
| 0433051 |
0433051 |
CARBURETOR ASSEMBLY |
| 0433435 |
0433435 |
CARBURETOR ASSEMBLY |
| 0433436 |
0433436 |
CARBURETOR ASSEMBLY |
