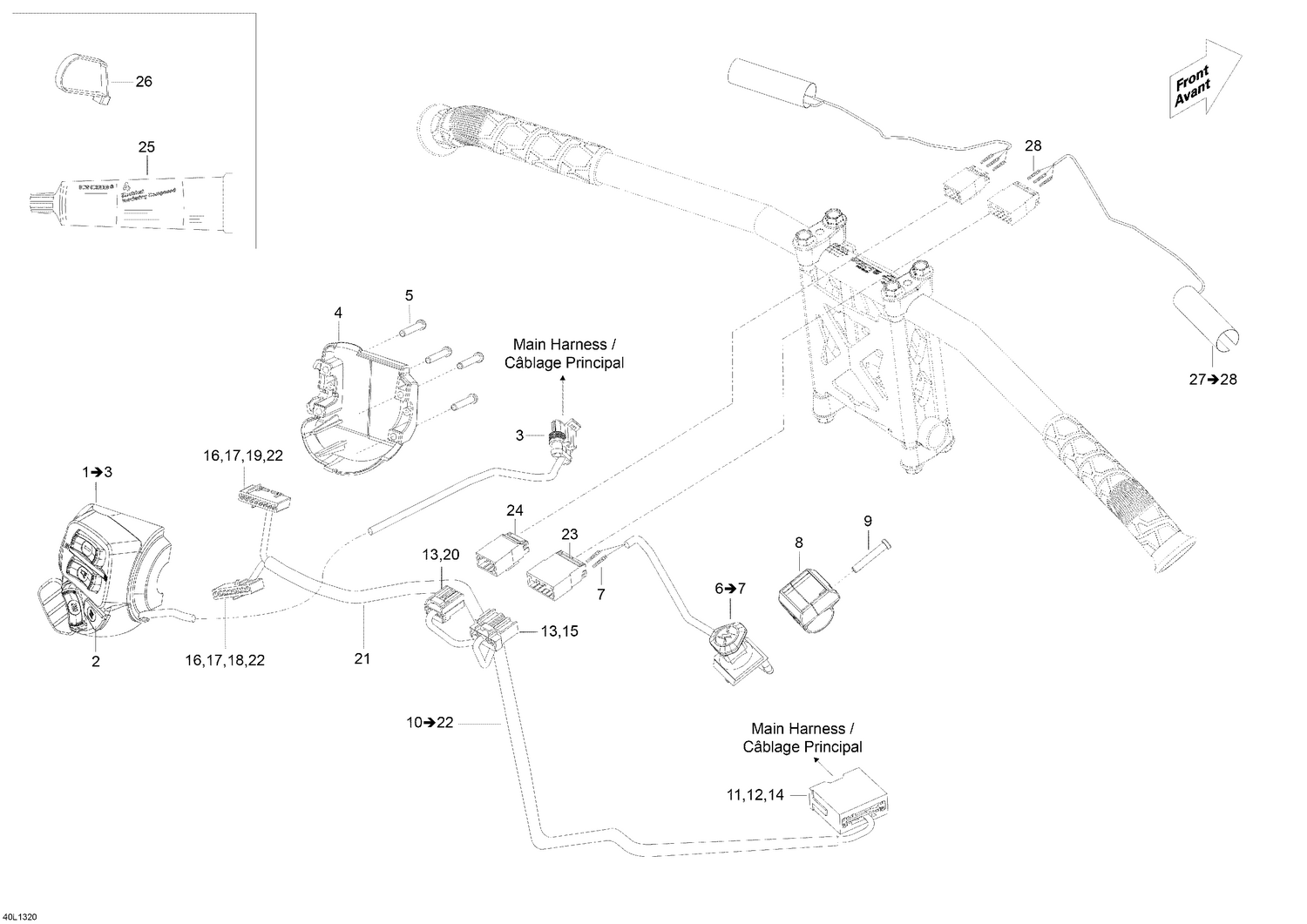

| Ref | Part Number | Description |
|---|
| 2 |
515176088 |
Start/RER Button |
| 3 |
409209600 |
Female Housing |
| 4 |
515175926 |
Switch Housing Plate |
| 5 |
250000263 |
Torx Screw #8-18 |
| 7 |
515175232 |
Male Terminal |
| 8 |
515177310 |
Emergency Stop Switch Support This part replaces 515176825. |
| 9 |
250000263 |
Torx Screw #8-18 |
| 11 |
515175232 |
Male Terminal |
| 12 |
515175273 |
MALE TERMINAL - Call your local BRP dealership |
| 13 |
515175231 |
Female Terminal |
| 14 |
515175351 |
MALE TERMINAL HOUSING, 15 CIRCUITS - Call your local BRP dealership |
| 15 |
515175543 |
Female Terminal Housing, 8 Circuits |
| 16 |
515175808 |
FEMALE TERMINAL - Call your local BRP dealership |
| 17 |
515175809 |
FEMELLE LOCK, 8 CIRCUITS - Call your local BRP dealership |
| 18 |
515175807 |
FEMALE TERMINAL HOUSING 8 CIRCUITS BLACK - Call your local BRP dealership |
| 19 |
515175810 |
FEMALE TERMINAL HOUSING, 8 CIRCUITS - Call your local BRP dealership |
| 20 |
515175830 |
Low Temperature Tubing 1/2” |
| 21 |
515175819 |
Female Housing |
| 22 |
515175941 |
Female Terminal |
| 23 |
515175817 |
Male Terminal Housing, 8 Circuits |
| 24 |
515175662 |
Male Terminal Housing, 6 Circuits |
| 25 |
619600021 |
Loctite 8104 (Dielectric Grease), 75 ml |
| 26 |
414115200 |
Tie-Rap 180 mm |
