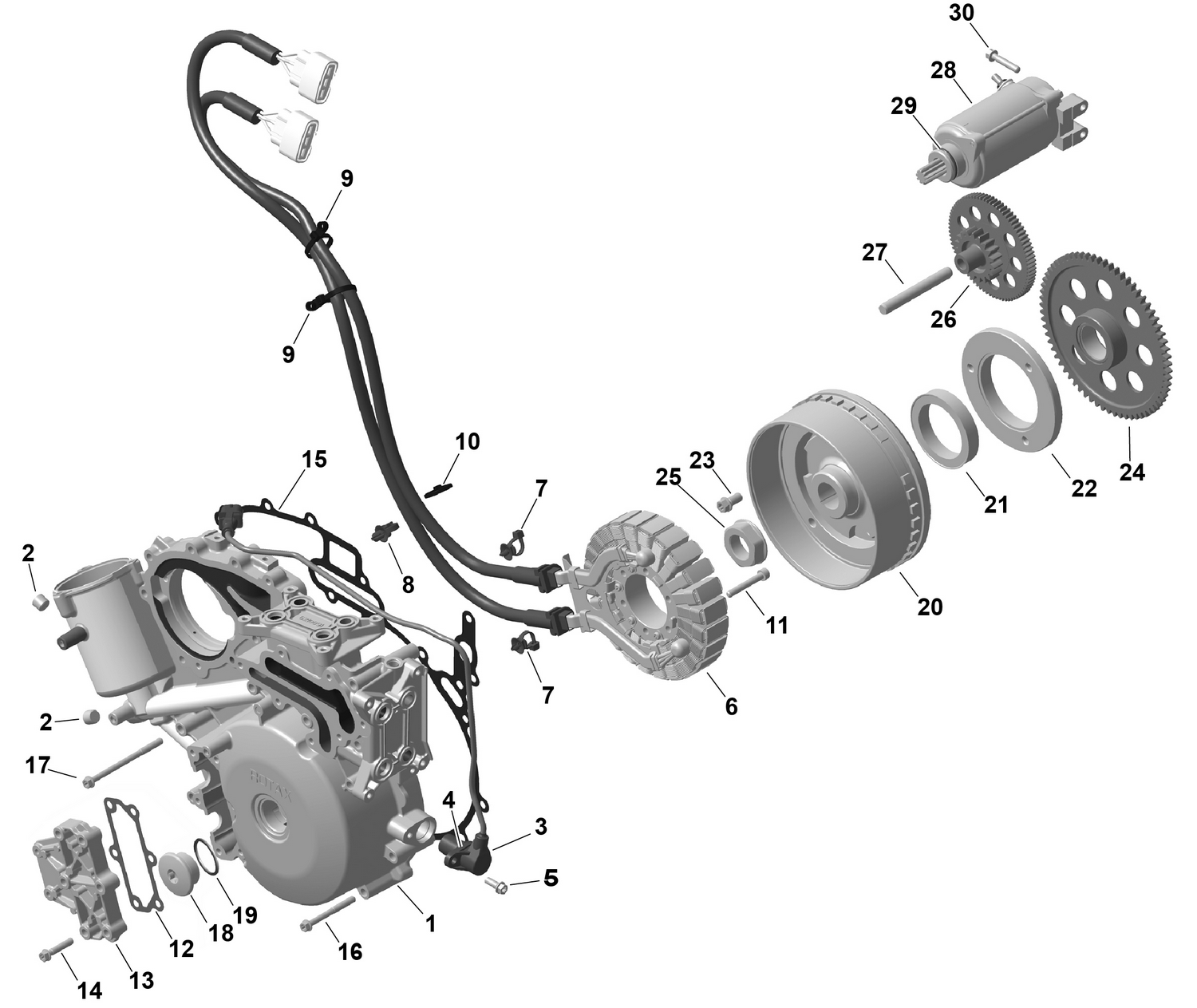

01- ROTAX - Magneto and Electric Starter
Parts (24)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 420840658 | Plug Screw M12x1,5 |
| 4 | 420431580 | O-Ring |
| 5 | 420440162 | Torx Flange Screw M6 X 16 |
| 7 | 420951341 | Tie-Rap With Mount |
| 8 | 710003840 | Clipping Tie-Rap |
| 9 | 515178191 | Tie Rap |
| 10 | 420866714 | Tie Rap |
| 11 | 420241956 | Allen Screw M6 X 40 |
| 12 | 420230029 | Gasket |
| 13 | 420810472 | Cover |
| 14 | 420440647 | Torx Flange Screw M6 X 30 |
| 15 | 420230017 | Gasket |
| 16 | 420440702 | Torx Flange Screw M6 X 55 |
| 17 | 420641228 | Torx Flange Screw M6 X 85 This part replaces 420440347. |
| 19 | 420631300 | O-Ring DIN 3771-28X2.6n NBR70 Cylinder Block Plug Screws |
| 20 | 420665232 | MAG Flywheel W. Trigger Wheel Ass'y |
| 21 | 420659113 | Sprag Clutch |
| 22 | 420659263 | Sparg Clutch Housing |
| 23 | 420440854 | Torx Flange Screw M8 X 16 |
| 25 | 420242021 | Hex Nut |
| 26 | 420834911 | Starter Double Gear 19/77 Teeth |
| 27 | 420229307 | Needle Pin |
| 28 | 420294806 | Electric Starter Ass'y |
| 29 | 420250145 | O-Ring |
