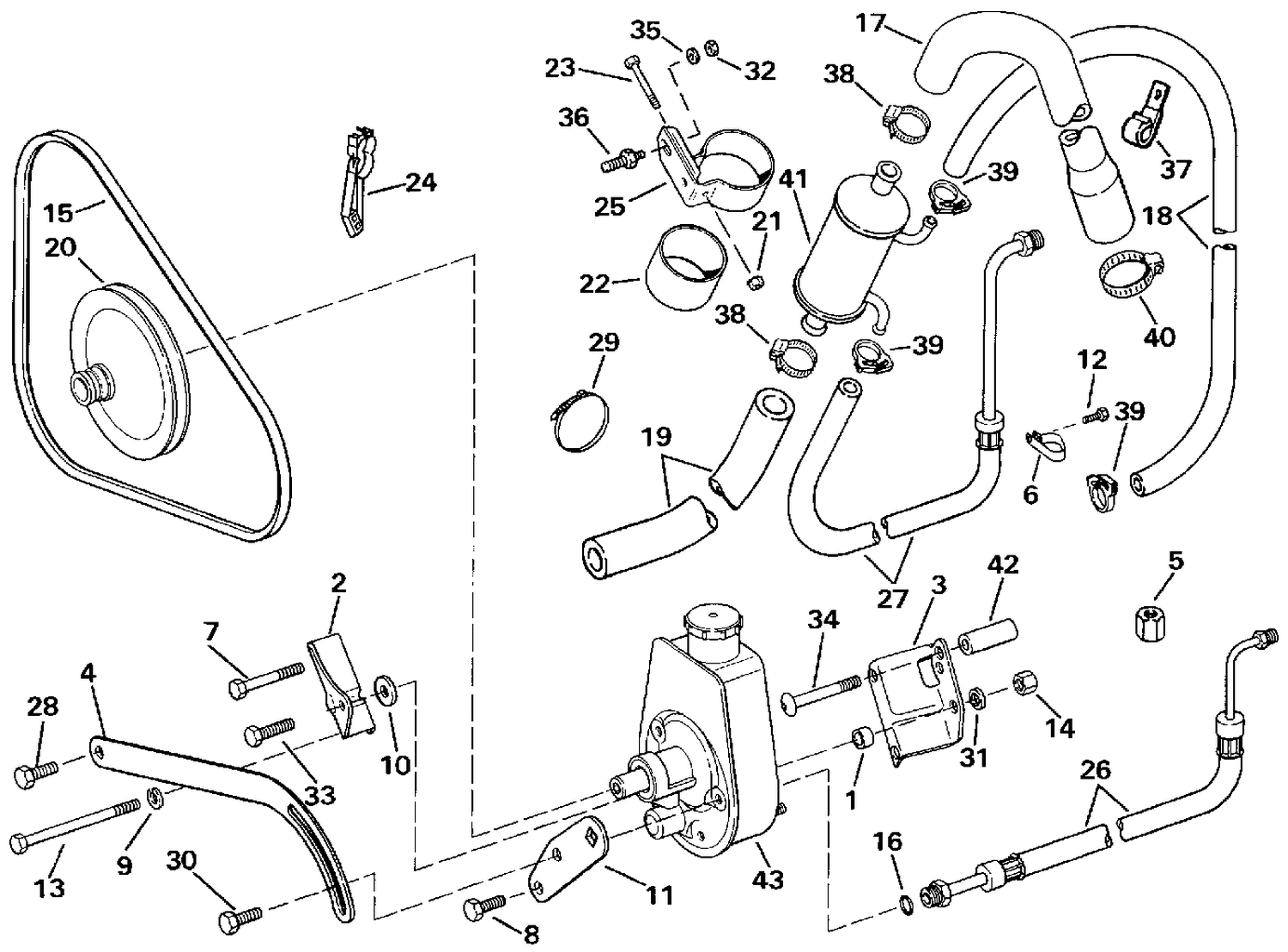

POWER STEERING PUMP

POWER STEERING PUMP

Parts (37)

RefPart NumberDescription
1 3852495 SPACER, Oil tube clamp This part replaces 0910318.
2 3853330 BRACKET, Steering pump, front This part replaces 0914785.
3 3852704 BRACKET, Steering pump, rear This part replaces 0913457.
4 3853660 BRACE, Steering pump to engine This part replaces 0914786.
5 3853315 FITTING, Steering hose plug This part replaces 0914728.
6 0913558 CAMP, Hoses to cyl. head, stbd.
7 3853394 SCREW, Bracket to engine, upper This part replaces 0915003.
8 3853405 SCREW, Adjustment bracket This part replaces 0915014.
10 0312972 WASHER, Alternator brkt
11 3853327 BRACE, Belt adjustment This part replaces 0914768.
12 3853398 SCREW, Clamp to cylinder head This part replaces 0915007.
13 0553122 SCREW
14 3852498 NUT, Pump to bracket, rear This part replaces 0910323.
15 3858462 V-Belt This part replaces 0914787.
16 3852497 O-RING, Pressure hose This part replaces 0910321.
17 0913451 HOSE Gimbal to oil cooler
18 3852706 HOSE, Cooler to pump, return This part replaces 0913465.
19 0913461 HOSE, Cooler to thermostat hsg
20 3853804 PULLEY, Steering pump This part replaces 0983839.
21 0308335 CLAMP, Coil
22 3853236 SLEEVE, Ignition coil This part replaces 0914455.
24 3852709 CLAMP, Hoses to valve cover This part replaces 0913480.
25 3852218 BRACKET, Oil cooler This part replaces 0383448.
26 3853863 HOSE, Pump to cyl., pressure This part replaces 0985732.
27 3854056 HOSE, Cyl. to oil cooler, return This part replaces 0987044.
28 3853557 SCREW, Brace to alterntr bracket This part replaces 0915790.
29 0320107 ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet
30 3853406 SCREW, Brace to pump This part replaces 0915016.
32 0320266 LOCKNUT, Cooler bracket
33 3853405 SCREW, Adjustment bracket This part replaces 0915014.
34 3852700 SCREW, Support tube This part replaces 0913444.
36 3852599 STUD, Oil cooler to engine This part replaces 0912549.
37 0910201 COLLIER, solénoïde amorçage
38 0979803 CLAMP
40 0912627 CLAMP
41 0985840 OIL COOLER
42 3852699 TUBE, Support This part replaces 0913443.
