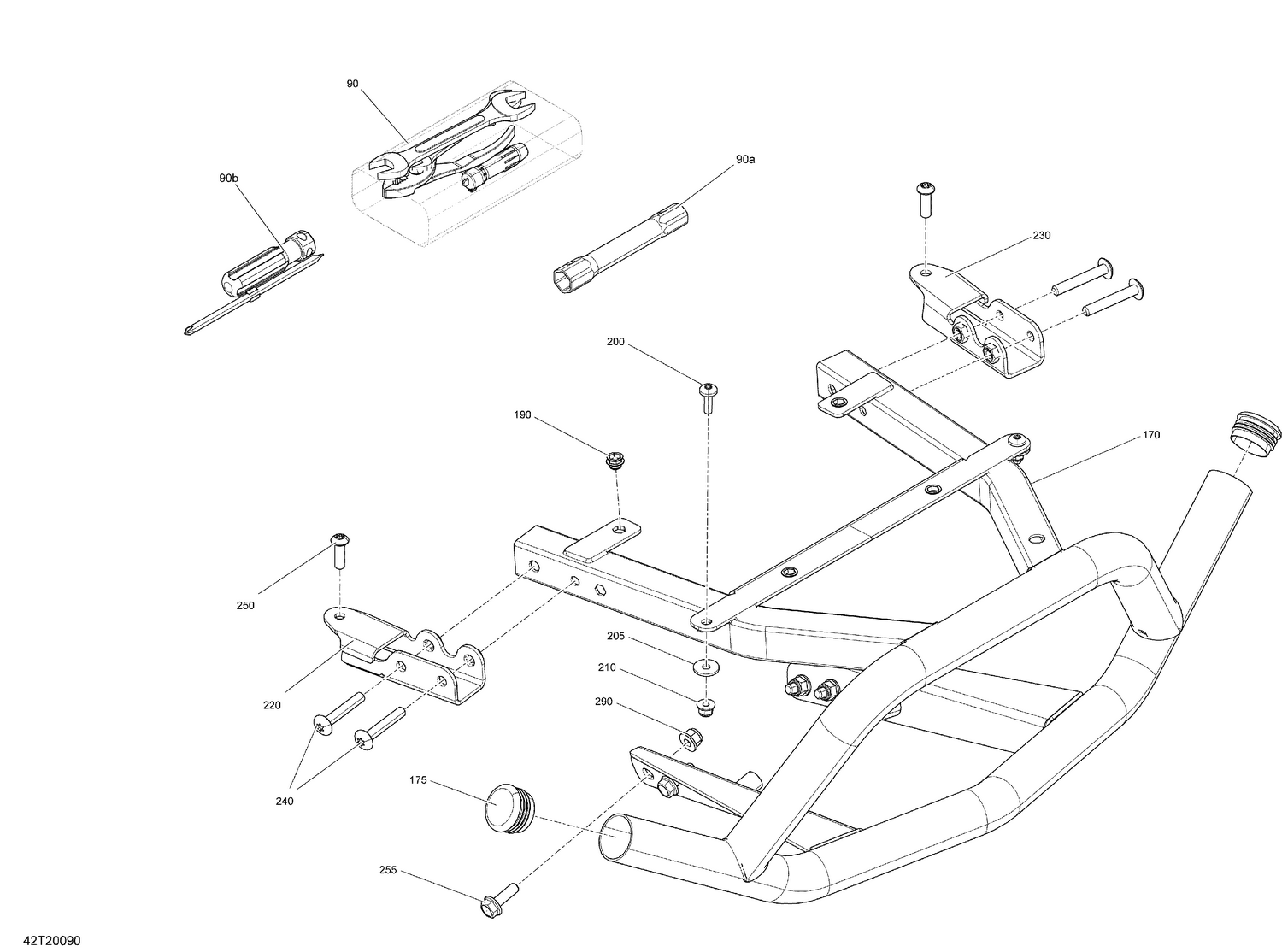

09- Front Storage Compartment
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 90a | 529000085 | Socket Wrench 14/16MM |
| 90b | 529000021 | Screw Driver |
| 170 | 705014207 | Platinum Silver Satin, Rear Bumper |
| 175 | 705202455 | Cap |
| 190 | 250100199 | Insert Half Hex Body M6 x 1.0 |
| 200 | 250000712 | Torx Screw M6 X 20 |
| 205 | 224061201 | Flat Washer |
| 210 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 220 | 705004977 | LH Front Bracket |
| 230 | 705004978 | RH Front Bracket |
| 240 | 250000844 | Torx Screw M8 X 50 S.GRIP |
| 250 | 250000757 | Button Head Torx Screw M8 X 25 S.Gr |
| 255 | 207682534 | Hex. Flange Screw M8 X 25 |
