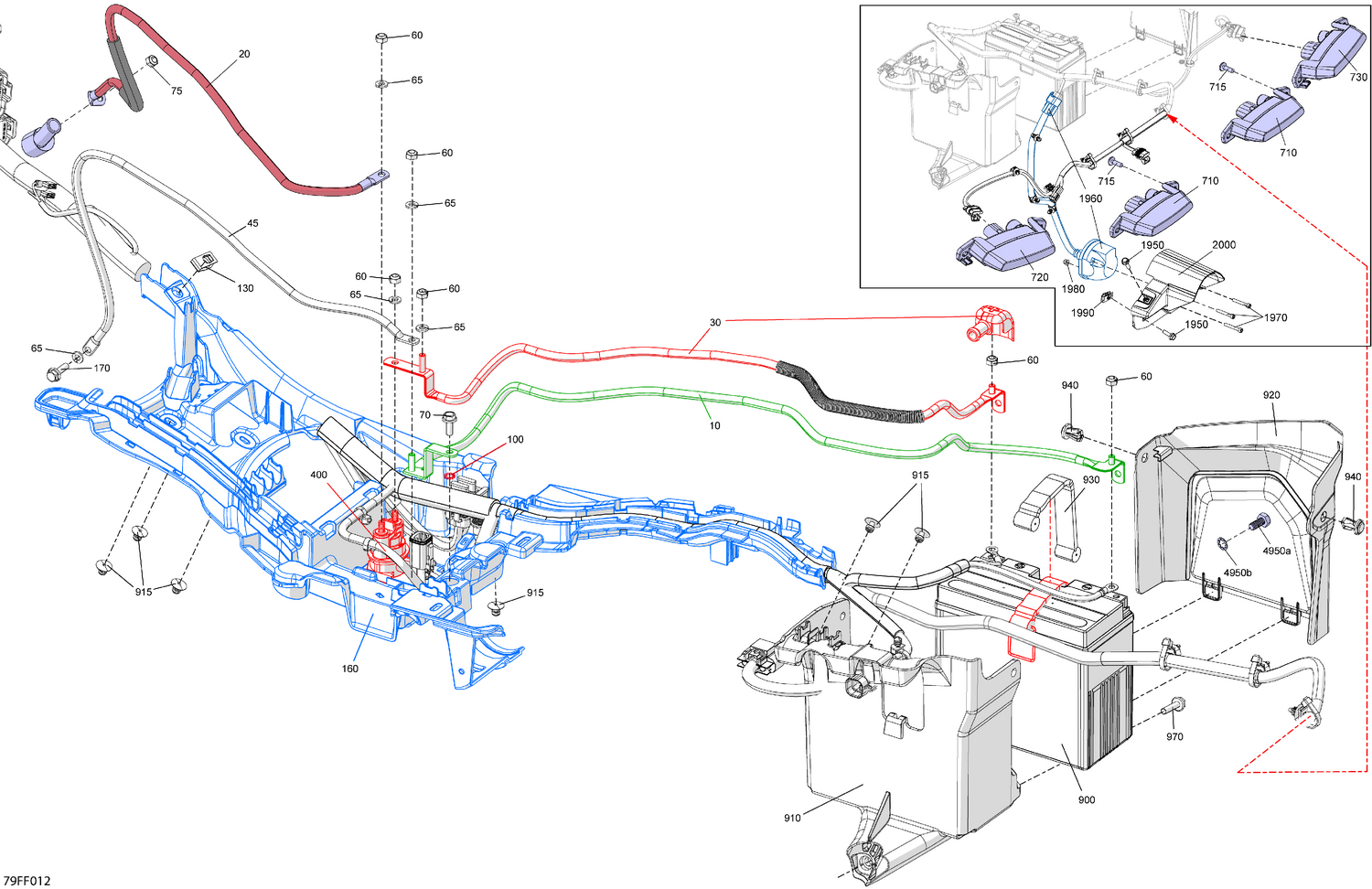

08- Electric - Rear Section
Parts (31)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 710009369 | Negative Cable |
| 20 | 710011179 | Positive Cable |
| 30 | 710009370 | Positive Cable |
| 45 | 710009388 | Negative Cable |
| 60 | 232561414 | Elastic Stop Nut M6 |
| 65 | 234161601 | Lock Washer Helical M6 |
| 70 | 207661646 | Hex. Flange Screw M6 X 16 |
| 75 | 232561414 | Elastic Stop Nut M6 |
| 100 | 234461608 | External Serrated Lock Washer 6 mm |
| 130 | 250100198 | Panel Nut M6 X 1.0 |
| 160 | 710011919 | Starter Relay Support |
| 170 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 400 | 278003012 | Starter Relay |
| 710 | 710010031 | Tail Light |
| 715 | 250000720 | Torx Screw K50 X 16 |
| 720 | 710010032 | Amber, Turn Signal Light |
| 730 | 710010032 | Amber, Turn Signal Light |
| 910 | 710008195 | Battery Support |
| 915 | 293150292 | Black, Pop Rivet 3/16 X ,550 |
| 920 | 710011427 | Battery Cover |
| 930 | 293850087 | Fuel Tank Strap |
| 940 | 293150230 | Tuflok Plastic Rivet |
| 970 | 207562544 | Hex. Flange Screw M6 X 25 |
| 1950 | 207662046 | Hex. Flange Screw M6 X 20 |
| 1960 | 710005846 | Trailer Harness |
| 1970 | 205053588 | Socket Head Screw M5 X 35 |
| 1980 | 233251434 | Flange Elastic Nut M5 This part replaces 233251414. |
| 1990 | 250100198 | Panel Nut M6 X 1.0 |
| 2000 | 710009909 | Trailer Hitch Support |
| 4950a | 710009084 | Screw |
| 4950b | 710009082 | Washer |
