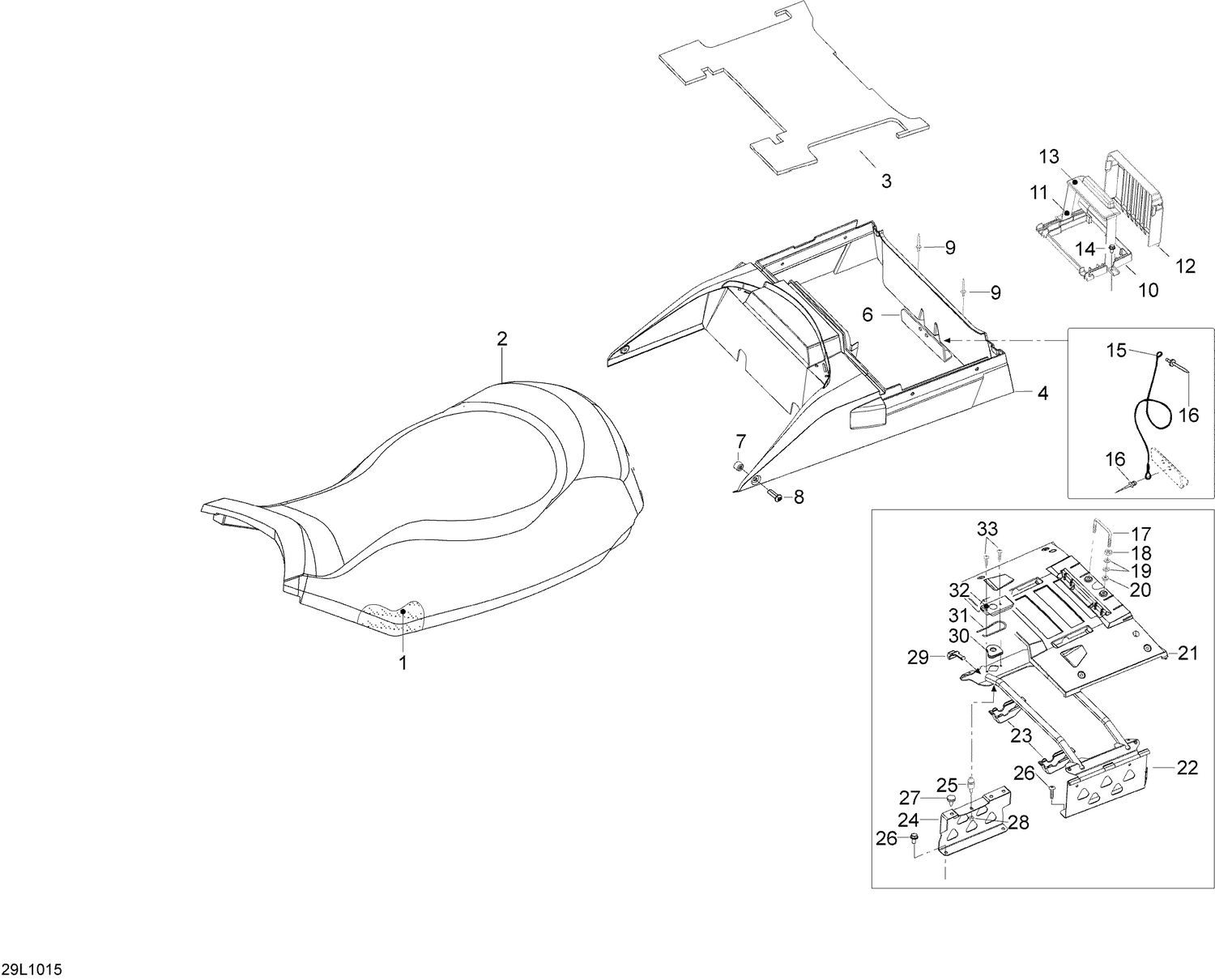

09- Seat
Parts (32)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 510005807 | Front Seat Foam This part replaces 510005316. |
| 2 | 510005339 | Cover, front |
| 3 | 510005043 | Foam |
| 4 | 510005056 | Storage box |
| 5 | 510006244 | Storage Box Cover This part replaces 510005055. |
| 6 | 510005156 | Cable Support Plate |
| 7 | 510005147 | Bushing |
| 8 | 250000454 | Torx Screw M6 X 12 |
| 9 | 293150104 | Pop Rivet 3/16 |
| 10 | 515176804 | Battery Support |
| 11 | 510005143 | Battery Strap |
| 12 | 510005079 | Battery Cover |
| 13 | 510005146 | Strap Cover |
| 14 | 207561644 | Hex Flange Screw M6 X 16, Scotch Grip |
| 15 | 293750070 | Seat Retainer Cable This part replaces 546777. |
| 16 | 390402200 | Pop Rivet 3/16 |
| 17 | 510004876 | FASTENER PIN - Call your local BRP dealership |
| 18 | 20117 | Washer |
| 19 | 20117 | Washer |
| 20 | 232561414 | Elastic Stop Nut M6 |
| 21 | 510006244 | Storage Box Cover This part replaces 510005055. |
| 22 | 510005714 | Fastening Tube This part replaces 510004951. |
| 23 | 510004999 | Cover |
| 24 | 510004998 | LOCKING PLATE (FRAME) - Call your local BRP dealership |
| 25 | 605452035 | LOCK PIN - Call your local BRP dealership |
| 26 | 207561644 | Hex Flange Screw M6 X 16, Scotch Grip |
| 27 | 605452114 | Plug |
| 28 | 233261416 | Elastic Flanged Nut M6 X 1.0 |
| 29 | 510005072 | Puller |
| 30 | 510005044 | Lock Pin Guide |
| 31 | 269700017 | Latch Spring |
| 32 | 510005698 | Lock Pin Cover This part replaces 510005112. |
