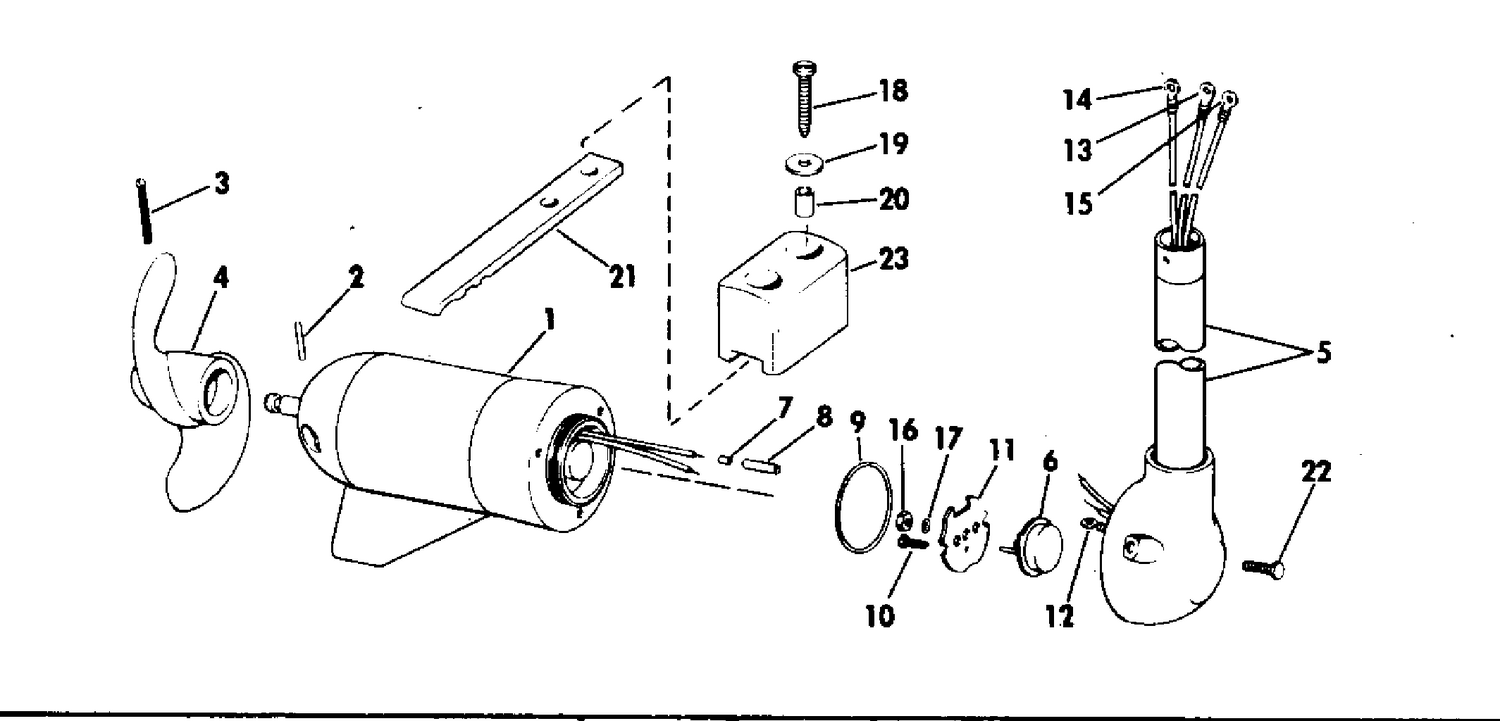

MOTOR AND ADAPTER GROUP 12 VOLT BOW MOUNT
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0433610 | ELECTRIC MOTOR ASSY., 12v (includes 21, 22 & 24) This part replaces 0387036. |
| 2 | 0320408 | SHEAR PIN, Prop |
| 3 | 0319658 | COTTER PIN, Prop |
| 4 | 0325185 | PROPELLER This part replaces 0320867. |
| 5 | 0279717 | MOTOR TUBE, ADAPTOR & CABLE ASSY., Evinrude |
| 6 | 0386890 | TRANSISTOR PKG |
| 7 | 0320373 | BUTT SPLICE |
| 10 | 0319599 | SCREW, Retainer |
| 11 | 0319560 | RETAINER |
| 18 | 0121202 | SCREW |
| 19 | 0305940 | WASHER |
| 20 | 0302406 | SLEEVE |
| 21 | 0319778 | STRAP, Motor to rest pad |
| 22 | 0319617 | SCREW, Adaptor to motor |
