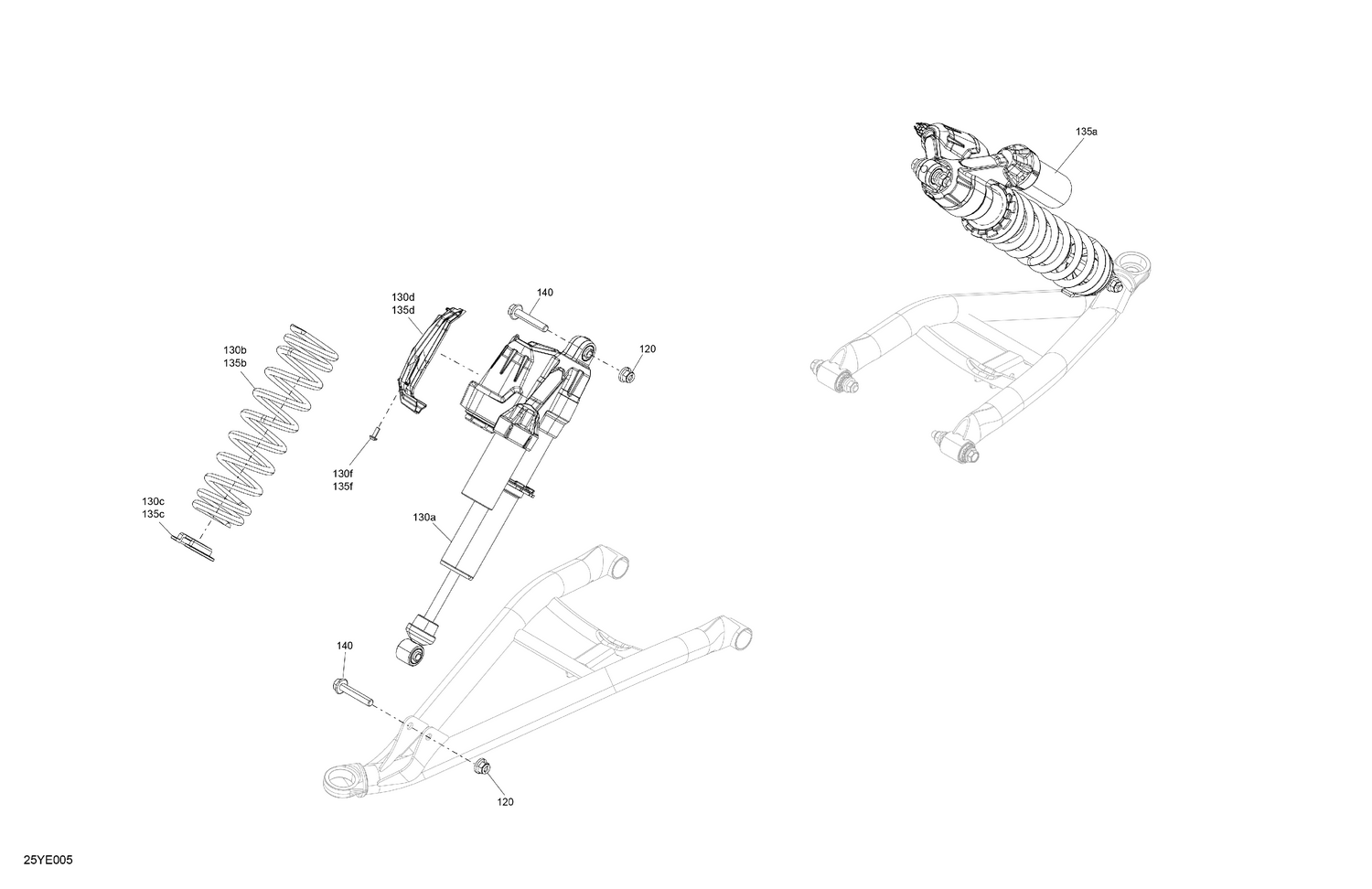

05- Suspension - Front Shocks
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 120 | 233201466 | Flange Elastic Nut M10 |
| 130a | 706005035 | LH Front Shock Absorber |
| 130b | 706005615 | Compression Spring |
| 130c | 706205929 | Spring Stopper |
| 130d | 706205893 | Connector Guard |
| 130f | 250000742 | Torx Screw M5 X 14 |
| 135a | 706004863 | RH Front Shock Absorber |
| 135b | 706005615 | Compression Spring |
| 135c | 706205929 | Spring Stopper |
| 135d | 706205893 | Connector Guard |
| 135f | 250000742 | Torx Screw M5 X 14 |
