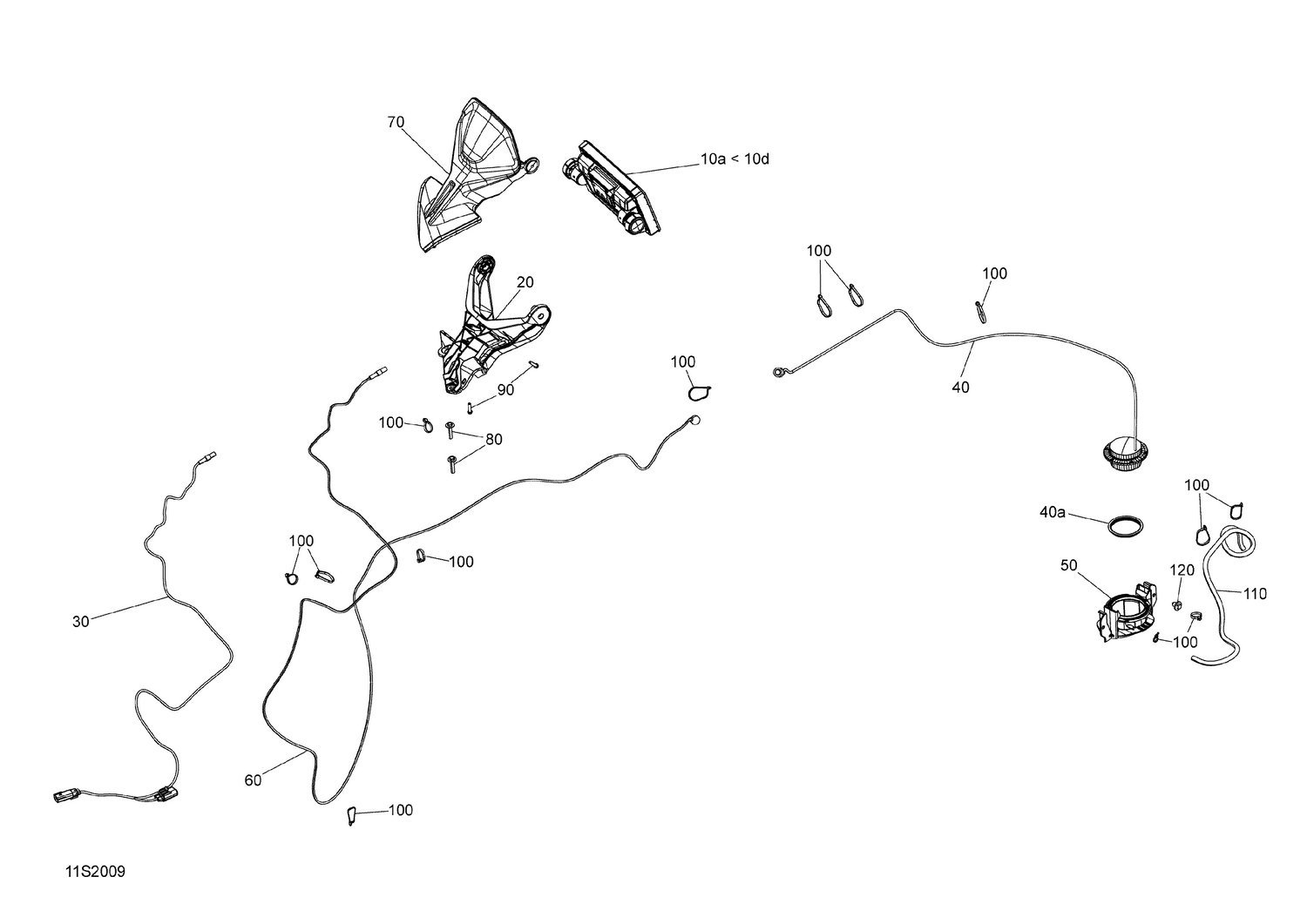

10- Electrical Accessories Echosounder 295100801
Parts (10)
| Ref | Part Number | Description |
|---|---|---|
| 20 | 269502461 | Echosounder Support This part replaces 269502357. |
| 30 | 278003673 | Echosounder Power Supply Harness |
| 40a | 292002447 | Seal This part replaces 292002166. |
| 50 | 292002128 | Transducer Support |
| 60 | 278003683 | Transducer Harness |
| 70 | 269502375 | Deep Black, Echosounder Deflector |
| 80 | 250000399 | Hexagonal Cap Screw M6 X35 |
| 90 | 211000023 | Hex. Screw 10-14 X 7/8” |
| 100 | 414115200 | Tie-Rap 180 mm |
| 110 | 219704389 | Polyurethane Hose 4000MM Long |
