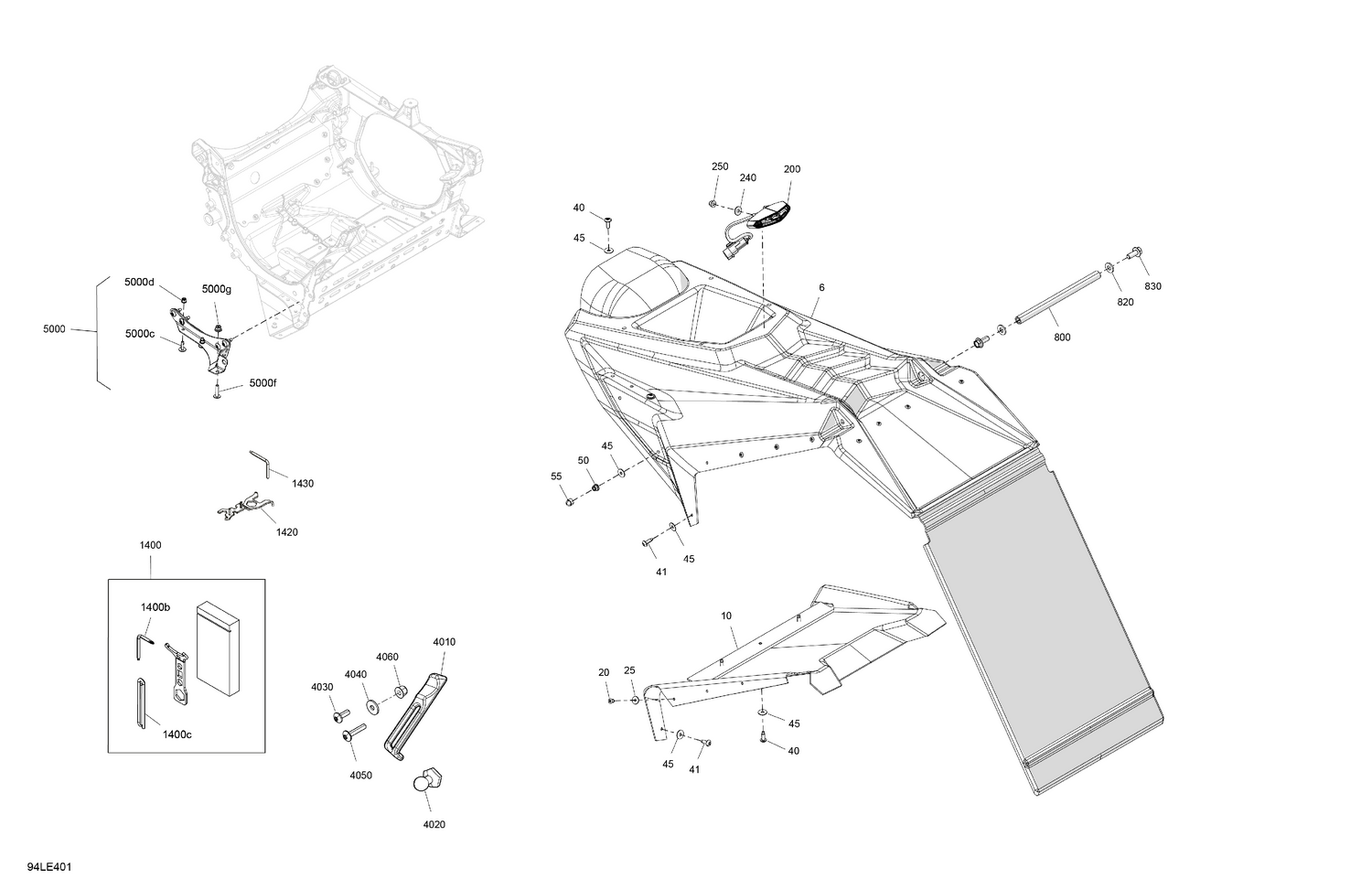

09- Miscellaneous - Utilities
Parts (28)
| Ref | Part Number | Description |
|---|---|---|
| 6 | 520003496 | White, Rear Support |
| 10 | 520003353 | Plate Cover |
| 20 | 293150102 | Rivet avex 12 mm. |
| 25 | 517124300 | Washer |
| 40 | 250000779 | Torx Screw M6 X 1.0 X 18, Scotch Grip |
| 41 | 250001213 | Socket Head Screw M6 X 18 |
| 45 | 20117 | Washer |
| 50 | 233261466 | Hex. Flanged Elastic Nut M6 |
| 55 | 293900129 | Hexagonal Cap |
| 200 | 520003410 | Tail Light |
| 240 | 234041480 | Flat Washer 4 mm |
| 250 | 232541484 | Elastic Stop Nut M4 |
| 800 | 503197693 | Rear Bumper |
| 820 | 732900049 | Washer |
| 830 | 250001026 | Screw-Hex.Flange DIN.6921 |
| 1400b | 520001815 | Key |
| 1400c | 529017500 | Rope Starter |
| 1420 | 520001499 | Wrench |
| 1430 | 417127579 | Belt Installation Tool |
| 4010 | 5342952 | Hood Latch |
| 4020 | 517245800 | Knob |
| 4030 | 250000742 | Torx Screw M5 X 14 |
| 4040 | 250200140 | Washer |
| 4050 | 250000762 | Torx-Truss Screw M5 x 25 |
| 4060 | 233251494 | Elastic Flanged Nut M5 |
| 5000c | 250000586 | Torx Truss M5 X 20 |
| 5000d | 233251494 | Elastic Flanged Nut M5 |
| 5000f | 250001000 | Torx-Truss M/S M6 X 25 |
