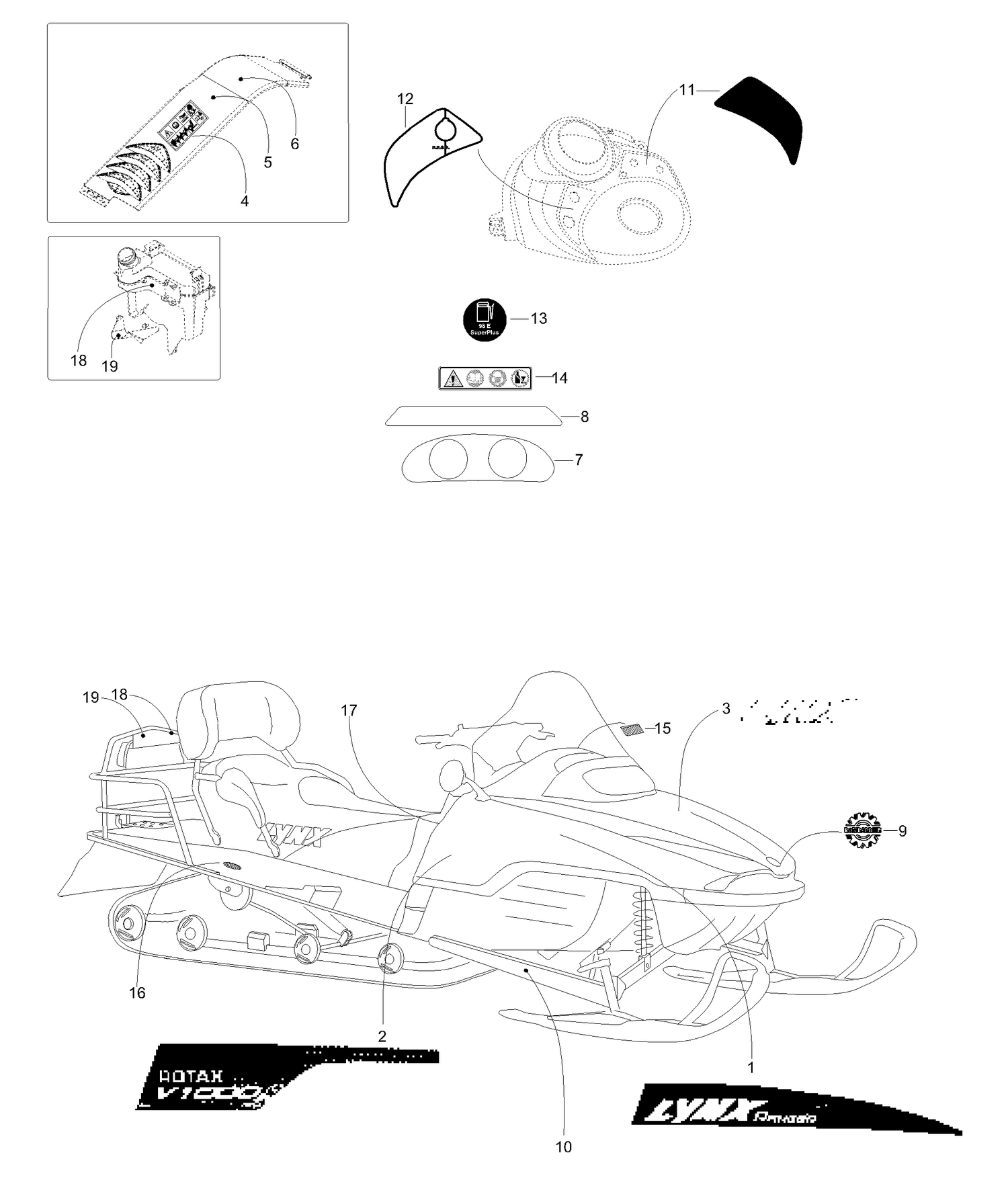

09- Decals
Parts (20)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 605349684 | R.H. Hood decal, upper |
| 1 | 605349685 | L.H. Hood decal, upper |
| 2 | 605349686 | R.H. lower decal, hood |
| 2 | 605349687 | L.H. lower decal, hood |
| 3 | 605349690 | Hood decal, front |
| 4 | 605448801 | Instruction symbol decal |
| 5 | 5447014 | Pulley decal |
| 6 | 5447012 | Oil check decal |
| 7 | 605248800 | Control panel decal |
| 8 | 5346800 | Instruction decal |
| 9 | 516008738 | Logo 48mm "BRP" This part replaces 516000983. |
| 10 | 605349688 | Decal, swing arm |
| 11 | 605448798 | R.H. console decal |
| 12 | 5446931 | Decal, DESS |
| 13 | 5447020 | Fuel label |
| 14 | 5447124 | Instruction symbol decal |
| 15 | 21060 | Reflector, bright |
| 16 | 21135 | Reflector, yellow |
| 17 | 5446973 | Instruction label |
| 18 | 5447930 | Instruction symbol decal |
