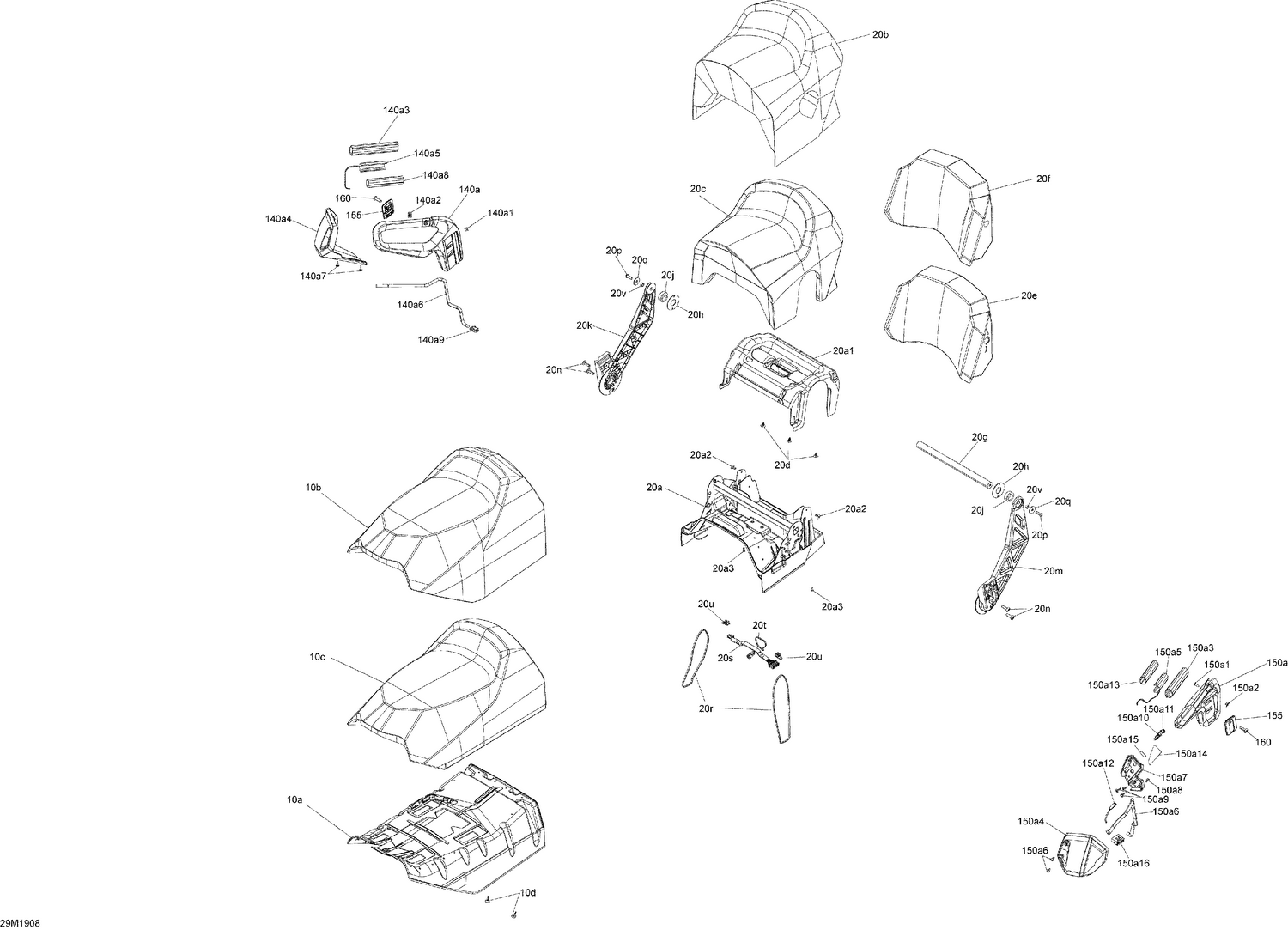

09- Seat
Parts (52)
| Ref | Part Number | Description |
|---|---|---|
| 10a | 510004775 | Front Seat Base |
| 10b | 510005181 | Seat Cover |
| 10c | 510004777 | Front Seat Foam |
| 10d | 708000759 | Rubber Stopper |
| 20a1 | 510004423 | Foam Support |
| 20a2 | 293150104 | Pop Rivet 3/16" |
| 20a3 | 390402300 | Pop Rivet 3/16" |
| 20b | 510005399 | Rear Seat Cover |
| 20c | 510004791 | Rear Seat Foam |
| 20d | 414644300 | Black, Dart |
| 20e | 510004782 | Backrest Foam |
| 20f | 510005309 | Backrest Cover |
| 20g | 510004377 | Upper Backrest Axle |
| 20h | 510004379 | Washer |
| 20j | 510004378 | Rubber Shim |
| 20k | 510005539 | RH Arm, Black |
| 20m | 510005538 | LH Arm, Black |
| 20n | 250000745 | Hex Torx Truss M8 X30 |
| 20p | 250000745 | Hex Torx Truss M8 X30 |
| 20q | 250200128 | Flat Washer 8 mm |
| 20r | 293750008 | Tie Wrap 368 mm |
| 20s | 515176766 | Seat Harness |
| 20t | 414115200 | Tie-Rap 180 mm |
| 20u | 515175283 | Housing Support |
| 20v | 271000558 | Spacer |
| 140a1 | 250000721 | Torx Truss Screw M6 X 16 |
| 140a2 | 293100003 | Nut Welded, M6 |
| 140a3 | 510004449 | Handle Grip |
| 140a4 | 510005009 | RH Air Deflector |
| 140a5 | 515176999 | Heated Element |
| 140a6 | 219704426 | Was 515175506 Tubing |
| 140a7 | 250000725 | Screw M4 X 16 |
| 140a8 | 510005814 | Reinforcement Handle |
| 140a9 | 515175494 | Male Housing, 3 Circuits |
| 150a1 | 250000721 | Torx Truss Screw M6 X 16 |
| 150a10 | 510004413 | Rocker Switch |
| 150a11 | 510004414 | Switch Protector |
| 150a12 | 515176697 | Handle Harness |
| 150a13 | 510005814 | Reinforcement Handle |
| 150a14 | 516003937 | Connector Decal |
| 150a15 | 516003816 | Heated Handle Decal |
| 150a16 | 515176033 | Male Connector |
| 150a2 | 293100003 | Nut Welded, M6 |
| 150a3 | 510004449 | Handle Grip |
| 150a4 | 510005010 | LH Air Deflector |
| 150a5 | 515176999 | Heated Element |
| 150a6 | 219704426 | Was 515175506 Tubing |
| 150a7 | 510005036 | Switch Housing |
| 150a8 | 250000720 | Torx Screw K50 X 16 |
| 150a9 | 250000725 | Screw M4 X 16 |
| 155 | 510006602 | Passenger Handle Trim This part replaces 510004405. |
| 160 | 250000745 | Hex Torx Truss M8 X30 |
