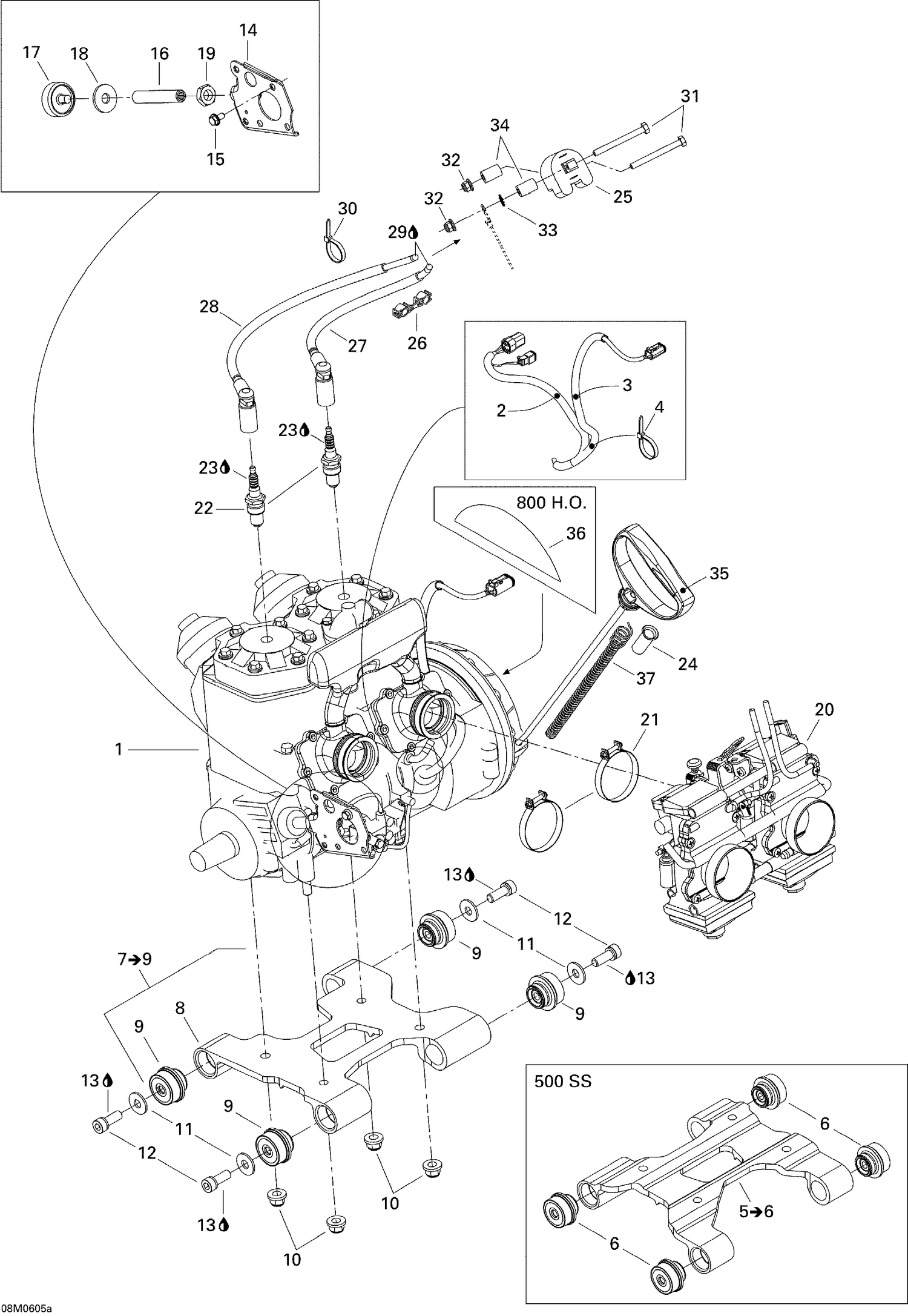

| Ref | Part Number | Description |
|---|
| 2 |
219704400 |
Was 409901800 Tubing (13 mm) |
| 3 |
219704407 |
Tubing 10 MM 1000MM Long |
| 4 |
293750002 |
Tie Wrap 142 mm |
| 5 |
XXX |
Not Available As Spare Parts |
| 6 |
XXX |
Not Available As Spare Parts |
| 8 |
512060051 |
ENGINE SUPPORT - Call your local BRP dealership |
| 9 |
512059691 |
Rubber Mount |
| 10 |
233201414 |
Hex. Flange Elastic Nut M10 |
| 11 |
250200014 |
Flat Washer M10 This part replaces 506151251. |
| 12 |
205002544 |
Socket Head Screw M10 X 25 |
| 13 |
413703400 |
Sealant LOCTITE 222MS - Call your local BRP dealership |
| 14 |
512059840 |
PLATE - Call your local BRP dealership |
| 15 |
207561244 |
Hex. Flange Screw M6 X 12, Scotch Grip |
| 16 |
250500007 |
STOPPER SCREW - Call your local BRP dealership |
| 17 |
512059610 |
STOPPER - Call your local BRP dealership |
| 18 |
512059057 |
WASHER - Call your local BRP dealership |
| 19 |
232170411 |
Hex. Jam Nut M14 |
| 21 |
512059835 |
Gemi Clamp |
| 23 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 25 |
512059968 |
Ignition Coil |
| 26 |
410914600 |
Plastic Clip, Spark Plug Wire |
| 27 |
512059695 |
CABLE ASSY, 300 MM - Call your local BRP dealership |
| 28 |
512059696 |
Cable Ass’y, 375 mm |
| 29 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 30 |
414115200 |
Tie-Rap 180 mm |
| 31 |
207066044 |
Hex. Screw M6 X 60 |
| 32 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 33 |
394001900 |
EXTERNAL TOOTH LOCK WASHER - Call your local BRP dealership |
| 34 |
517203200 |
Spacer |
| 35 |
572084400 |
Starter Grip |
