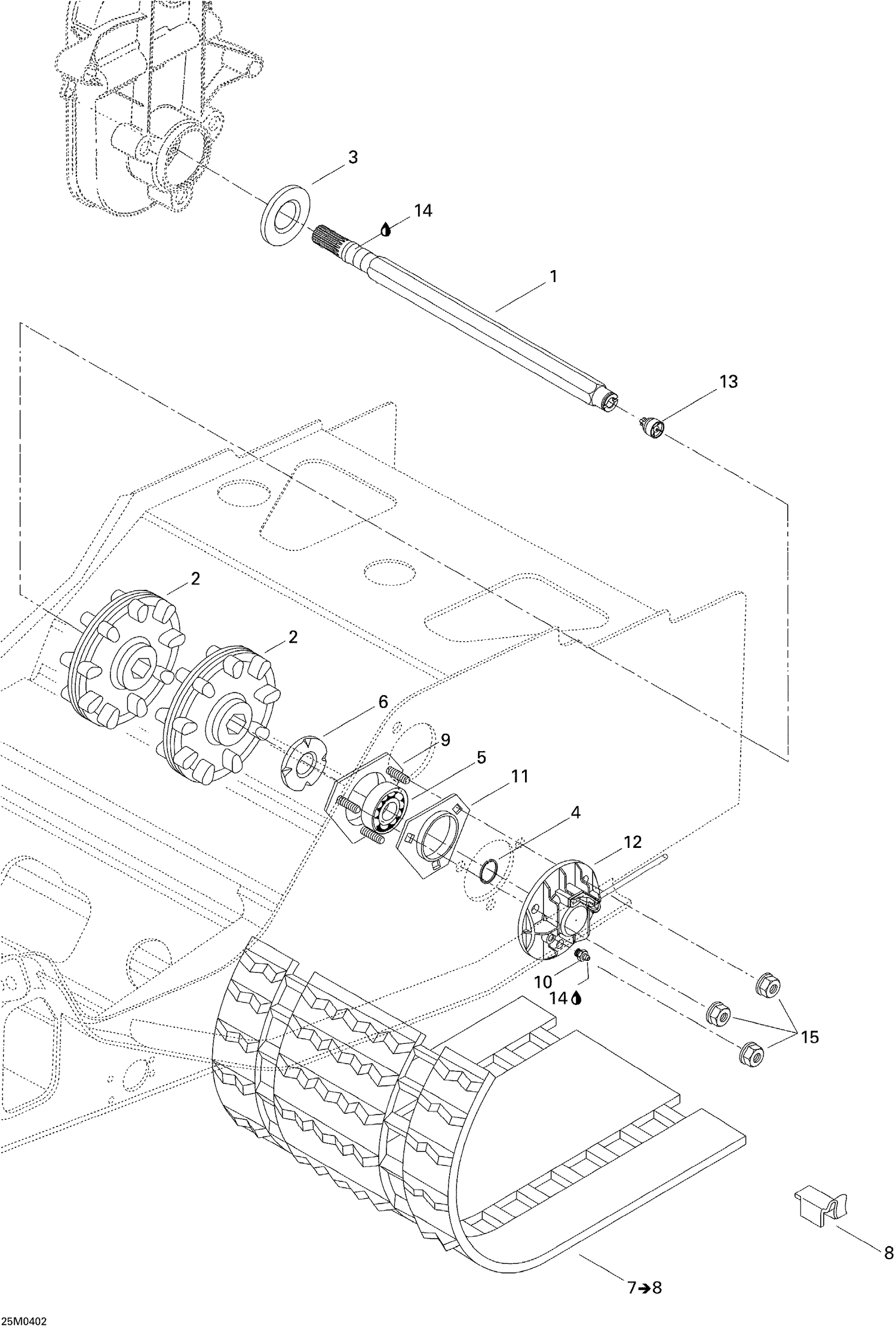

| Ref | Part Number | Description |
|---|
| 1 |
501027400 |
DRIVE AXLE - Call your local BRP dealership |
| 2 |
504151781 |
SPROCKET, 9 TEETH - Call your local BRP dealership |
| 3 |
504151918 |
Oil Seal Ass'y |
| 4 |
371910200 |
CIRCLIP - Call your local BRP dealership |
| 5 |
293350060 |
Ball Bearing This part replaces 504152009. |
| 6 |
501017400 |
BEARING PROTECTOR - Call your local BRP dealership |
| 8 |
415129528 |
Track Guide This part replaces 500003400. |
| 9 |
504151860 |
BEARING HOUSING - Call your local BRP dealership |
| 10 |
Not |
Available As Spare Part - Grease Fitting |
| 11 |
501025000 |
FLANGE - Call your local BRP dealership |
| 12 |
504152173 |
FLANGE, SPEEDO - Call your local BRP dealership |
| 13 |
504152040 |
MAGNETIC ADAPTOR - Call your local BRP dealership |
| 14 |
219700417 |
SYNTHETIC GREASE, 400 G - Call your local BRP dealership |
