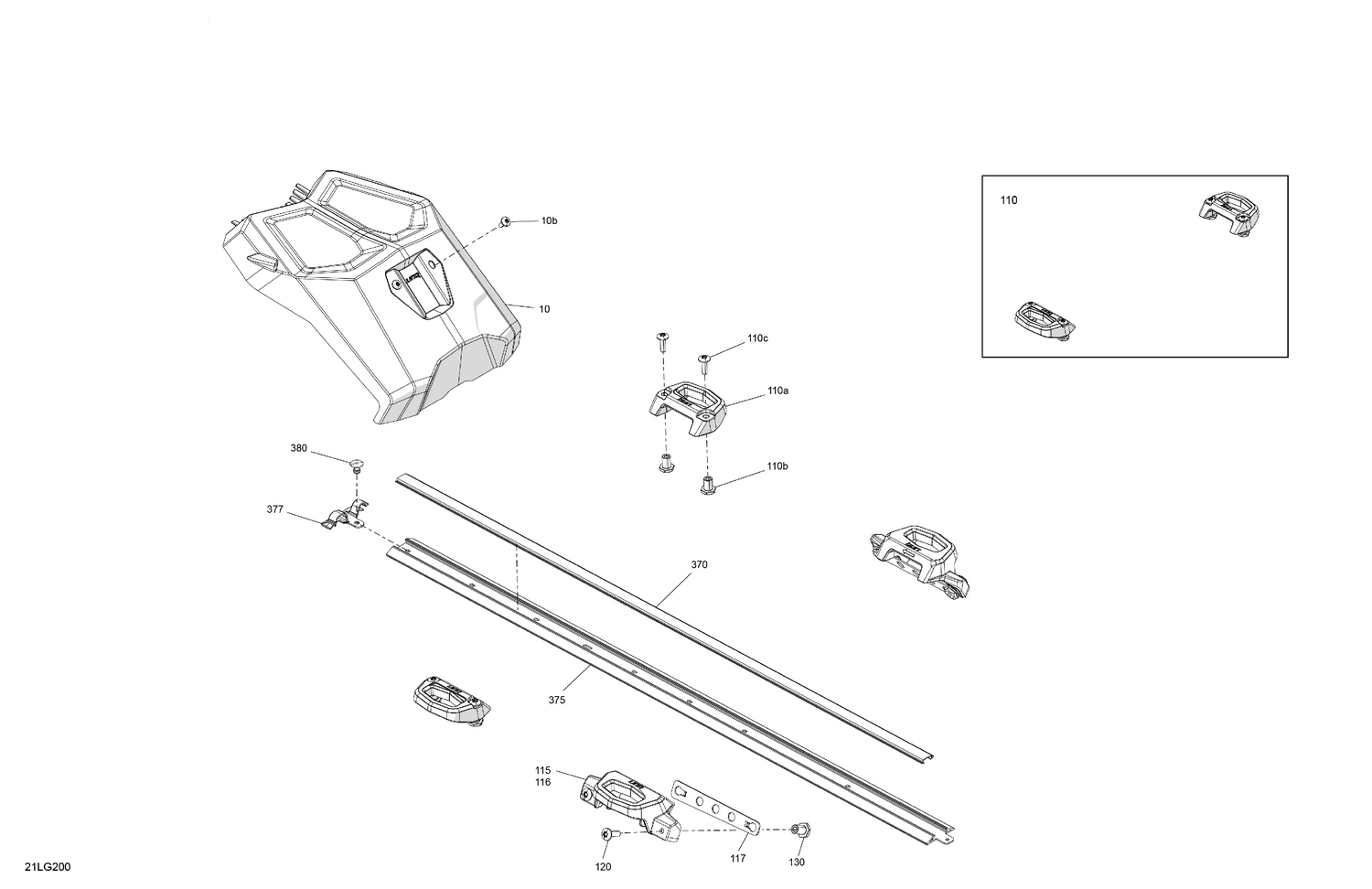

07- Body - Cargo
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 10b | 250001005 | Torx Screw M6 X 16 |
| 110a | 860203055 | Linq Anchorage Kit |
| 110b | 511000822 | Insert |
| 110c | 250000446 | Torx Screw M6 X 20, Scotch Grip |
| 115 | 511002123 | LH Rear Anchorage |
| 116 | 511002124 | RH Rear Anchorage |
| 117 | 511002125 | Lower Plate |
| 120 | 250000446 | Torx Screw M6 X 20, Scotch Grip |
| 130 | 511002225 | NEEDS DESCRIPTION |
| 370 | 520002921 | Radiator Trim |
| 375 | 511002023 | Grommet |
| 377 | 520001722 | Cap |
