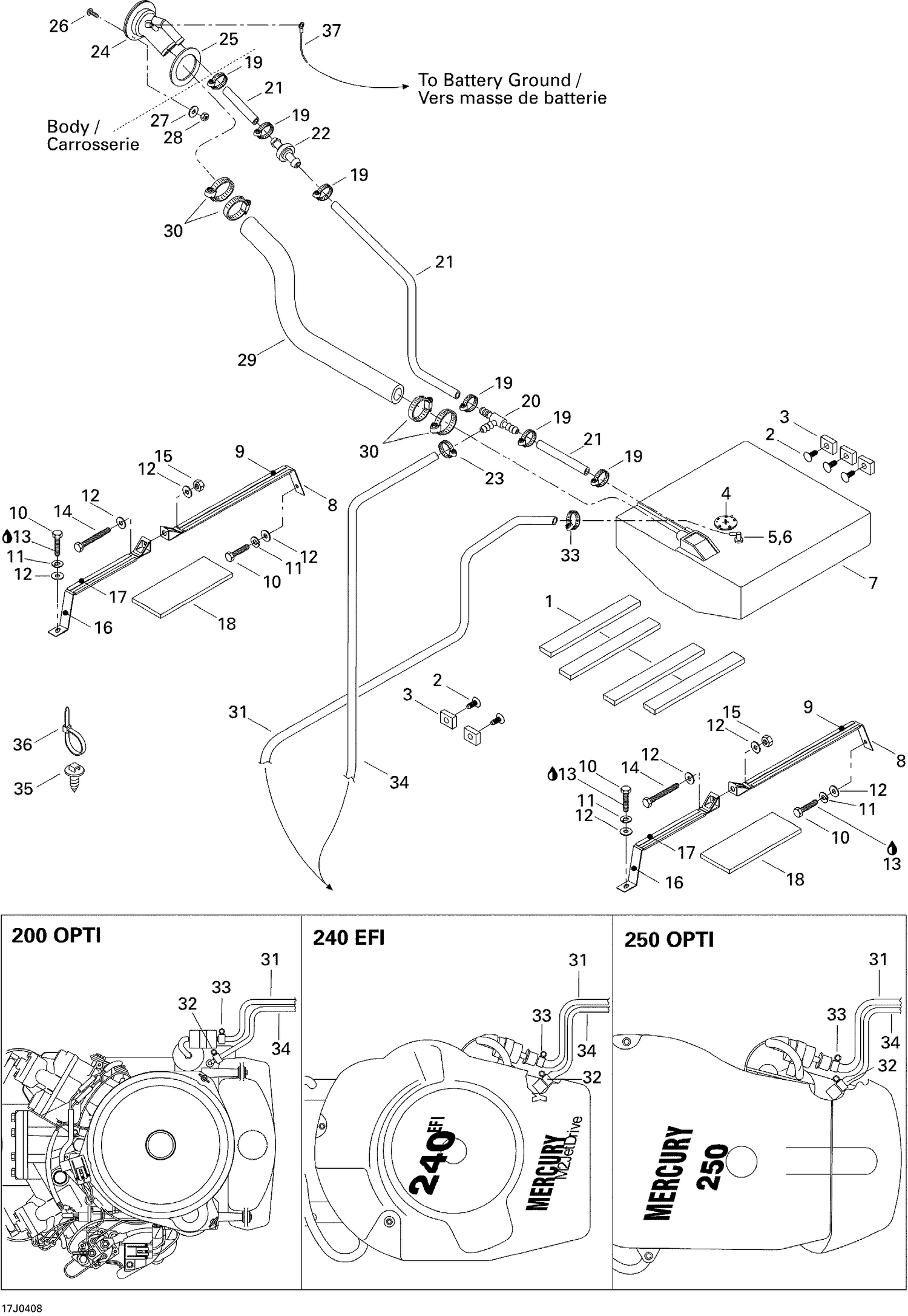

02- Fuel System
Parts (37)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 204560115 | PROTECTOR PAD - Call your local BRP dealership |
| 2 | 293730006 | Black, Dart |
| 3 | 204060684 | RUBBER PAD - Call your local BRP dealership |
| 4 | 204560217 | Fuel Level Sensor |
| 5 | 204560218 | Rigid Pick-Up Tub |
| 6 | 204560219 | Anti-Siphon Valve |
| 7 | 204560220 | Fuel Tank |
| 8 | 204560181 | FUEL TANK STRAP - Call your local BRP dealership |
| 9 | 204560185 | PROTECTOR PAD - Call your local BRP dealership |
| 10 | 207183060 | Hex. Screw M8 X 30 |
| 11 | 234181601 | Lock Washer 8 mm, Stainless |
| 12 | 234082600 | Flat Washer 8 mm, Stainless |
| 13 | 293800005 | Loctite 271, 10 ml |
| 14 | 207188060 | HEX. SCREW M8 X 80 - Call your local BRP dealership |
| 15 | 232581600 | Hex. Elastic Nut M8 |
| 16 | 204560184 | Fuel Tank Strap |
| 17 | 204560186 | Protector Pad |
| 18 | 204560191 | NEOPRENE PAD - Call your local BRP dealership |
| 19 | 293650069 | NORMA CLAMP - Call your local BRP dealership |
| 20 | 204560038 | T-Fitting |
| 21 | 204560358 | HOSE 16 MM - Call your local BRP dealership This part replaces 275500205. |
| 22 | 204560101 | VENT FUEL SURGE PROTECTOR - Call your local BRP dealership |
| 23 | 293650121 | NORMA CLAMP - Call your local BRP dealership |
| 24 | 204560182 | FILLER NECK - Call your local BRP dealership |
| 25 | 204560188 | SPACER - Call your local BRP dealership |
| 26 | 208643560 | Phillips Screw M4 X 35 |
| 27 | 234040600 | Flat Washer 4 mm |
| 28 | 232541600 | Elastic Stop Nut M4 |
| 29 | 204560294 | Filler Neck Hose |
| 30 | 293650174 | NORMA CLAMP - Call your local BRP dealership |
| 31 | 204560177 | Hose 5/16”, Meter |
| 32 | 293650121 | NORMA CLAMP - Call your local BRP dealership |
| 33 | 293650070 | NORMA CLAMP - Call your local BRP dealership |
| 34 | 204560178 | HOSE 1/4 - Call your local BRP dealership |
| 35 | 293730040 | Mount Dart This part replaces 293730018. |
| 36 | 293750008 | Tie Wrap 368 mm |
| 36 | 414115200 | Tie-Rap 180 mm |
