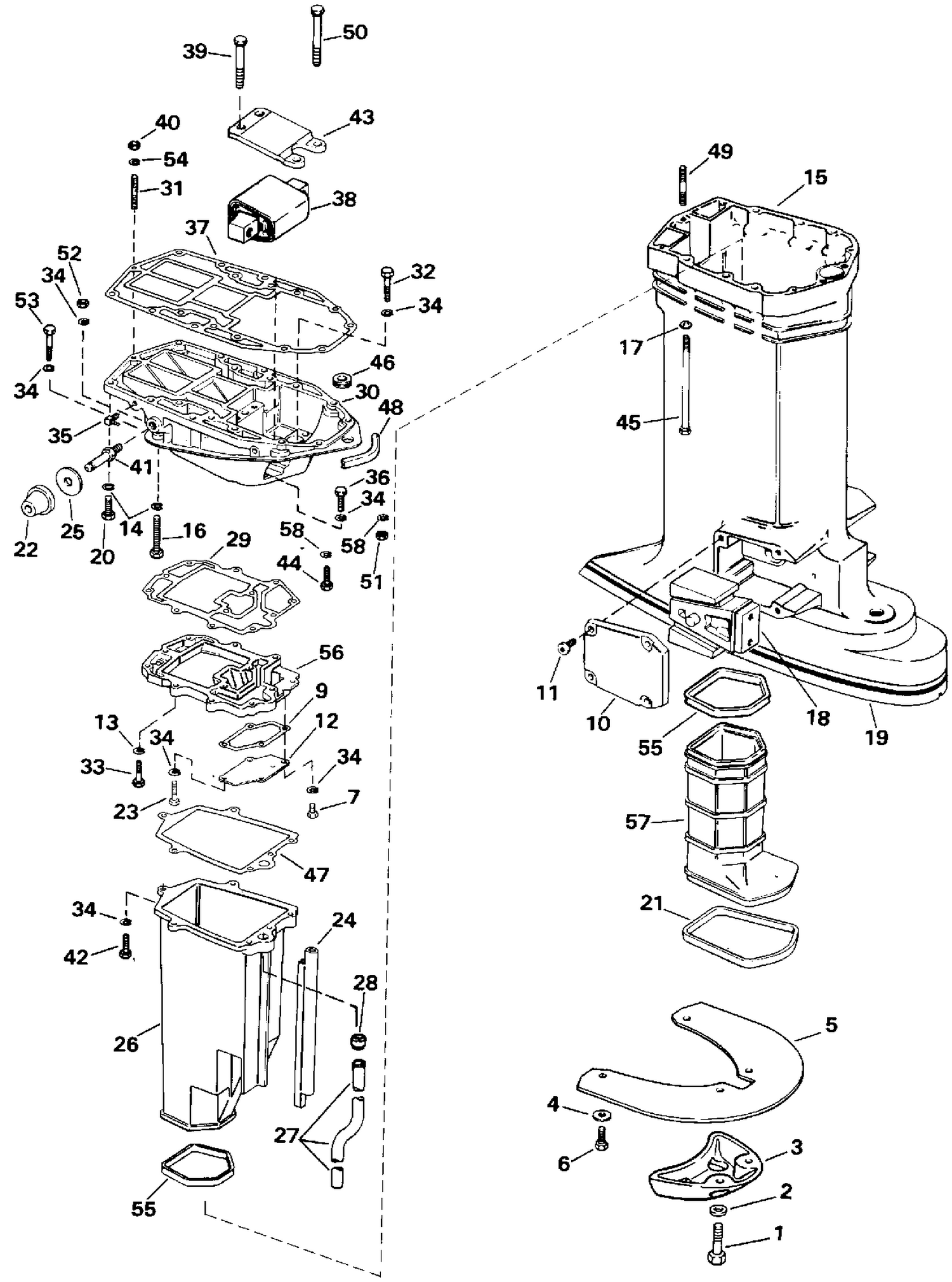

| Ref | Part Number | Description |
|---|
| 1 |
0910736 |
SCREW, Deflector |
| 3 |
0345776 |
DÉFLECTEUR DE PROJECTIONS This part replaces 0913262. |
| 5 |
0345776 |
DÉFLECTEUR DE PROJECTIONS This part replaces 0334979. |
| 6 |
0910741 |
SCREW, Cover plate |
| 9 |
0333564 |
GASKET, Cover to water plate |
| 10 |
0338942 |
COVER, Mount bracket lower This part replaces 0320864. |
| 11 |
0322000 |
SCREW, Starter to crankcase |
| 12 |
0333565 |
COVER, Water plate |
| 14 |
0307708 |
RONDELLE GROWER |
| 15 |
0435103 |
EXHAUST HOUSING This part replaces 0397862. |
| 15 |
0435433 |
EXHAUST HOUSING This part replaces 0397861. |
| 16 |
0311416 |
SCREW, Adapter to cylinder |
| 17 |
0307708 |
RONDELLE GROWER |
| 18 |
0434629 |
MOUNT, Lower |
| 18 |
0434632 |
MONTURE CAOUTCHOUC, inférieur |
| 19 |
0211388 |
DECAL |
| 19 |
0333960 |
DECAL, Exh. Hsg. |
| 19 |
0336386 |
DECAL Exh. hsg. Jo. |
| 21 |
0320961 |
JOINT, boîtier d'engrenages vers carter intérieur |
| 22 |
0349557 |
MOUNT This part replaces 0328584. |
| 23 |
0333165 |
SCREW, Cover, long |
| 24 |
0334118 |
SEAL, Exhaust housing, front |
| 25 |
0349556 |
Washer This part replaces 0329749. |
| 26 |
0336264 |
EXHAUST HOUSING, Inner, upper |
| 27 |
0346897 |
TUBE WATER, Inlet This part replaces 0321016. |
| 27 |
0346898 |
TUBE WATER, Inlet This part replaces 0321015. |
| 28 |
0305145 |
GROMMET |
| 29 |
0343809 |
GASKET, Plate to adapter This part replaces 0333566. |
| 30 |
0434147 |
ADAPTER, Exh. hsg. This part replaces 0398779. |
| 32 |
0303459 |
ECREW,Exhaust cover,1-1/2"long |
| 33 |
0312978 |
SCREEN, Ground plt to intmd hsg |
| 36 |
0306409 |
VIS, collecteur vers carter-moteur |
| 37 |
0333879 |
GASKET, Adapter to powerhead |
| 38 |
0395539 |
RUBBER MOUNT ASSY., Upper |
| 41 |
0329743 |
STUD, Cover mount |
| 42 |
0303459 |
ECREW,Exhaust cover,1-1/2"long |
| 43 |
0330929 |
PLATE, Upper mount |
| 45 |
0355037 |
SCREW, Exhaust housing to c/c This part replaces 0332128. |
| 46 |
0329748 |
SEAL Shift rod |
| 47 |
0334113 |
GASKET, Inner exh hsg to water plate |
| 48 |
0333434 |
SEAL, Cover to adapter |
| 49 |
0314956 |
STUD |
| 50 |
0330931 |
VIS, support supérieur |
| 52 |
0328742 |
NUT |
| 53 |
0303398 |
VIS, support |
| 55 |
0320936 |
JOINT, boîtier échappement, inférieur |
| 56 |
0347251 |
WATER PLATE This part replaces 0336265. |
| 57 |
0327796 |
EXHASUT HSG,Inner lower |
| 57 |
0327797 |
EXHAUST HOUSING, Inner lower |
