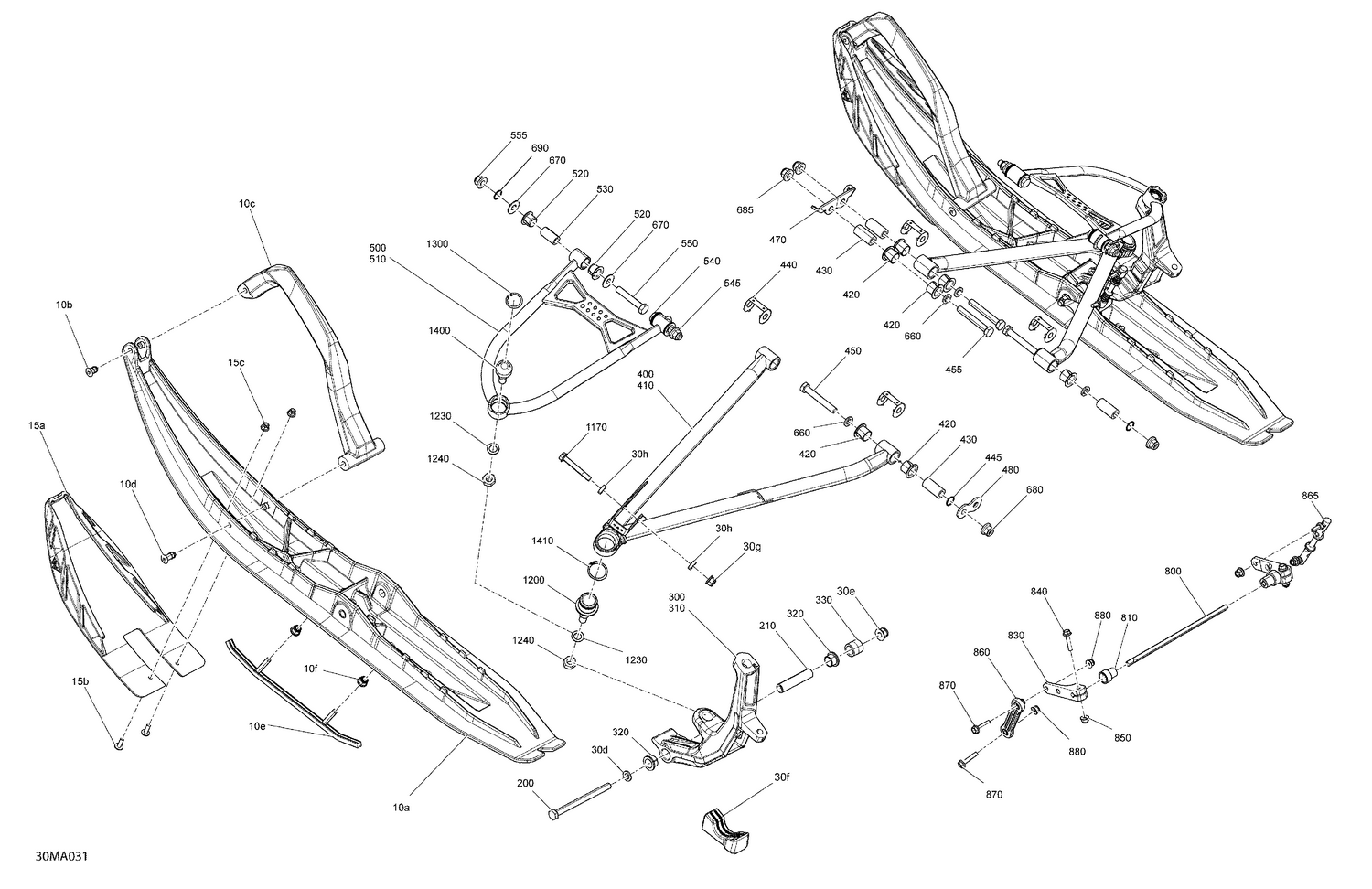

05- Suspension - Front
Parts (57)
| Ref | Part Number | Description |
|---|---|---|
| 10b | 505071812 | Retainer 17mm long |
| 10c | 505073388 | Red, Handle |
| 10d | 505072133 | Retainer 23mm Long |
| 10e | 860201044 | Carbide Runner Kit (Square Runner) |
| 10f | 233281414 | Hex. Flange Elastic Nut M8 |
| 15a | 505073784 | Ski Tip |
| 15b | 250000770 | Hex. Socket Screw M6 X 20 |
| 15c | 233261466 | Hex. Flange Elastic Nut M6 |
| 30d | 503192496 | Washer |
| 30e | 233201464 | Hex. Flange Elastic M10 x 1.5 |
| 30f | 505074138 | Ski Stopper |
| 30g | 233281466 | Elastic Flange Nut M8 |
| 200 | 250000703 | Hex. Screw M10 X 130 |
| 210 | 505073691 | Ski Axle |
| 300 | 505074999 | Catalyst Gray, LH Ski Leg -8.5 |
| 310 | 505075000 | Catalyst Gray, RH Ski Leg -8.5 |
| 320 | 505072690 | Leg Bushing |
| 330 | 503193651 | Spacer |
| 400 | 505075474 | LH Lower Suspension Arm 36 This part replaces 505074499. |
| 410 | 505075475 | RH Lower Suspension Arm This part replaces 505074500. |
| 420 | 505072208 | Bushing |
| 430 | 505072214 | Bushing |
| 440 | 505072634 | Wear Plate |
| 445 | 505072448 | O-Ring |
| 450 | 250001024 | Screw Hex. M10 X 70 |
| 455 | 250001024 | Screw Hex. M10 X 70 |
| 470 | 505073723 | Wear Plate |
| 480 | 505073844 | Plate |
| 500 | 505074609 | LH Upper Arm 36" |
| 510 | 505074610 | RH Upper Arm 36" |
| 520 | 505072250 | Bushing |
| 530 | 505072143 | Sleeve |
| 540 | 250001023 | Screw Hex. M10 X 60 |
| 545 | 250100165 | Hex. Flange Elastic Nut M10 |
| 550 | 250001023 | Screw Hex. M10 X 60 |
| 555 | 250100165 | Hex. Flange Elastic Nut M10 |
| 660 | 503189564 | Washer |
| 670 | 505072392 | Washer |
| 680 | 250100165 | Hex. Flange Elastic Nut M10 |
| 685 | 250100165 | Hex. Flange Elastic Nut M10 |
| 690 | 505072448 | O-Ring |
| 800 | 505075485 | Stabilizer Bar This part replaces 505074720. |
| 810 | 505072786 | Bushing |
| 830 | 505073752 | Stabilisator Lever |
| 840 | 207663056 | Hex. Flange Screw M6 X 1.0 X 30 |
| 850 | 233261466 | Hex. Flange Elastic Nut M6 |
| 860 | 505073172 | Double Ball Joint Link |
| 865 | 860200811 | Double Ball Joint Link This part replaces 505073703. |
| 870 | 207663056 | Hex. Flange Screw M6 X 1.0 X 30 |
| 880 | 233261466 | Hex. Flange Elastic Nut M6 |
| 1170 | 250000824 | Hex. Flange Screw M8 X 58 |
| 1200 | 505074133 | Ball Joint |
| 1230 | 503192491 | Washer |
| 1240 | 232521464 | Hex Elastic Nut M12 X 1.25 |
| 1300 | 293370070 | Circlip |
| 1400 | 505072913 | Upper Ball Joint |
| 1410 | 293370098 | Snap Ring |
