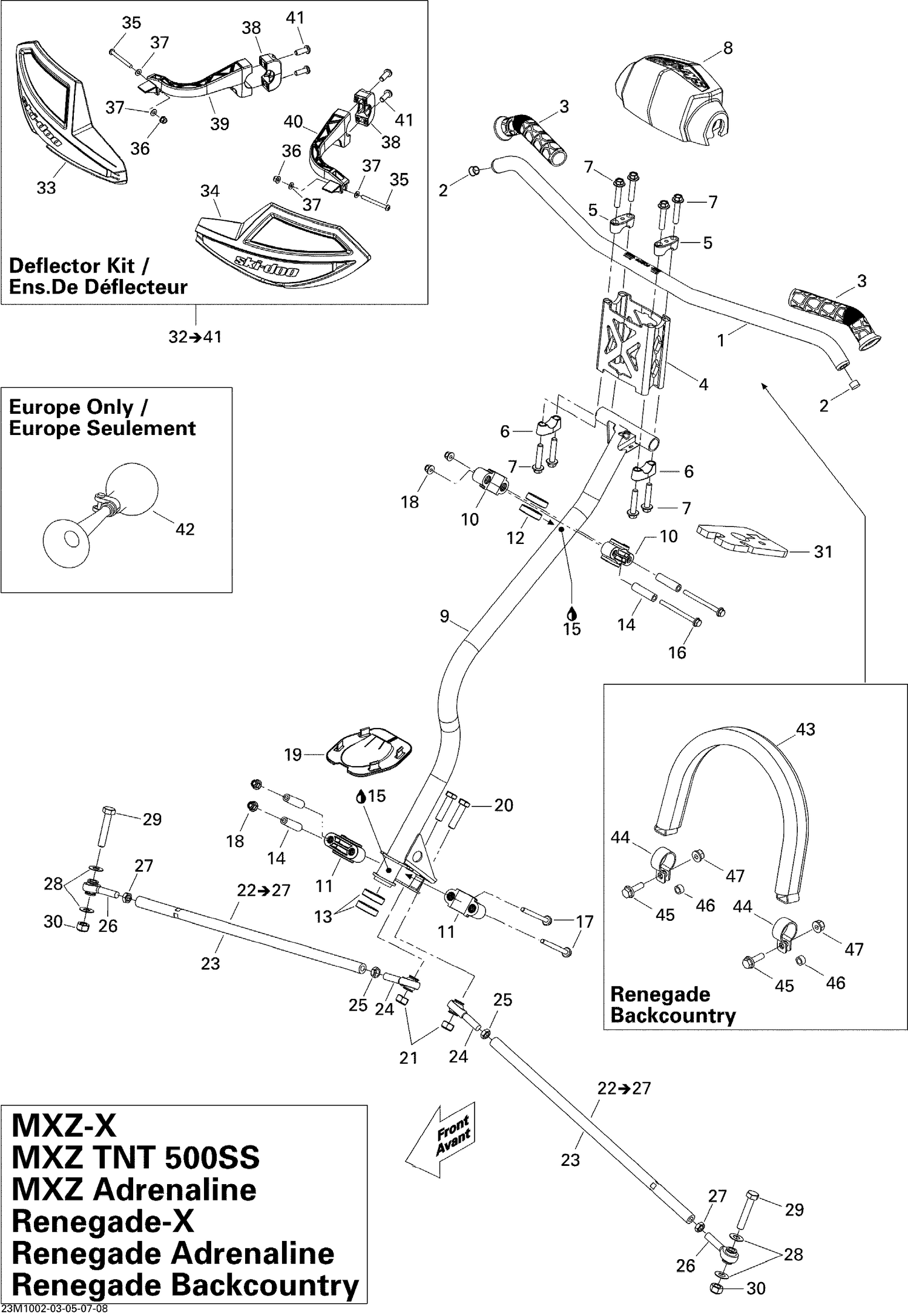

| Ref | Part Number | Description |
|---|
| 1 |
506152709 |
Handle Bar, Non Dyed Clear Anodizing This part replaces 506152191. |
| 2 |
572051500 |
Cap |
| 3 |
506152486 |
Grip This part replaces 506152226. |
| 4 |
860200819 |
HANDLEBAR EXTENSION KIT (115MM) - Call your local BRP dealership This part replaces 860200268. |
| 5 |
506152751 |
Steering Support This part replaces 506152394. |
| 6 |
506152751 |
Steering Support This part replaces 506152395. |
| 7 |
250000352 |
Hex. Flange Screw M8 X 40 |
| 8 |
506152192 |
Steering Pad |
| 9 |
506152964 |
Steering Column This part replaces 506152469. |
| 10 |
506152219 |
Upper Half Housing |
| 11 |
506152217 |
Lower Half-Housing |
| 12 |
506152292 |
Upper Vibration Ring |
| 13 |
506152518 |
Lower Vibration Ring This part replaces 506152218. |
| 14 |
506152297 |
Housing Bushing |
| 15 |
293550033 |
SUSPENSION GREASE, 10 X 400 G - Call your local BRP dealership |
| 16 |
207667056 |
Hex. Flange Screw M6 X 70 This part replaces 207667086. |
| 17 |
207667044 |
Hex. Flange Screw M6 X 70 |
| 18 |
233261416 |
Elastic Flange Nut M6 X 1.0 |
| 19 |
506152163 |
Plate |
| 20 |
207004034 |
Hex. Screw M10 X 1.5 X 40 |
| 21 |
232500416 |
Elastic Stop Nut M10 |
| 23 |
506152496 |
Tie-Rod Ass'y This part replaces 506152095. |
| 24 |
506152081 |
LH Thread Ball Joint |
| 25 |
250100016 |
LH Threaded Hex. Jam Nut M10 |
| 26 |
506152019 |
RH Threaded Ball Joint |
| 27 |
732610010 |
RH Threaded Hex. Jam Nut M10 |
| 28 |
506152194 |
Washer |
| 29 |
207006044 |
HEX. SCREW M10 X 60 - Call your local BRP dealership |
| 30 |
232500416 |
Elastic Stop Nut M10 |
| 31 |
506152521 |
Bushing This part replaces 506152407. |
| 35 |
205444086 |
Socket Head Screw M4 X 40 |
| 36 |
232541484 |
Elastic Stop Nut M4 |
| 37 |
234041480 |
Flat Washer 4 mm |
| 38 |
517303264 |
U-Clamp |
| 39 |
517303590 |
RH DEFLECTOR SUPPORT - Call your local BRP dealership |
| 40 |
517303591 |
LH DEFLECTOR SUPPORT - Call your local BRP dealership |
| 41 |
250000172 |
SOCKET HEAD SCREW M6 X 16 - Call your local BRP dealership |
