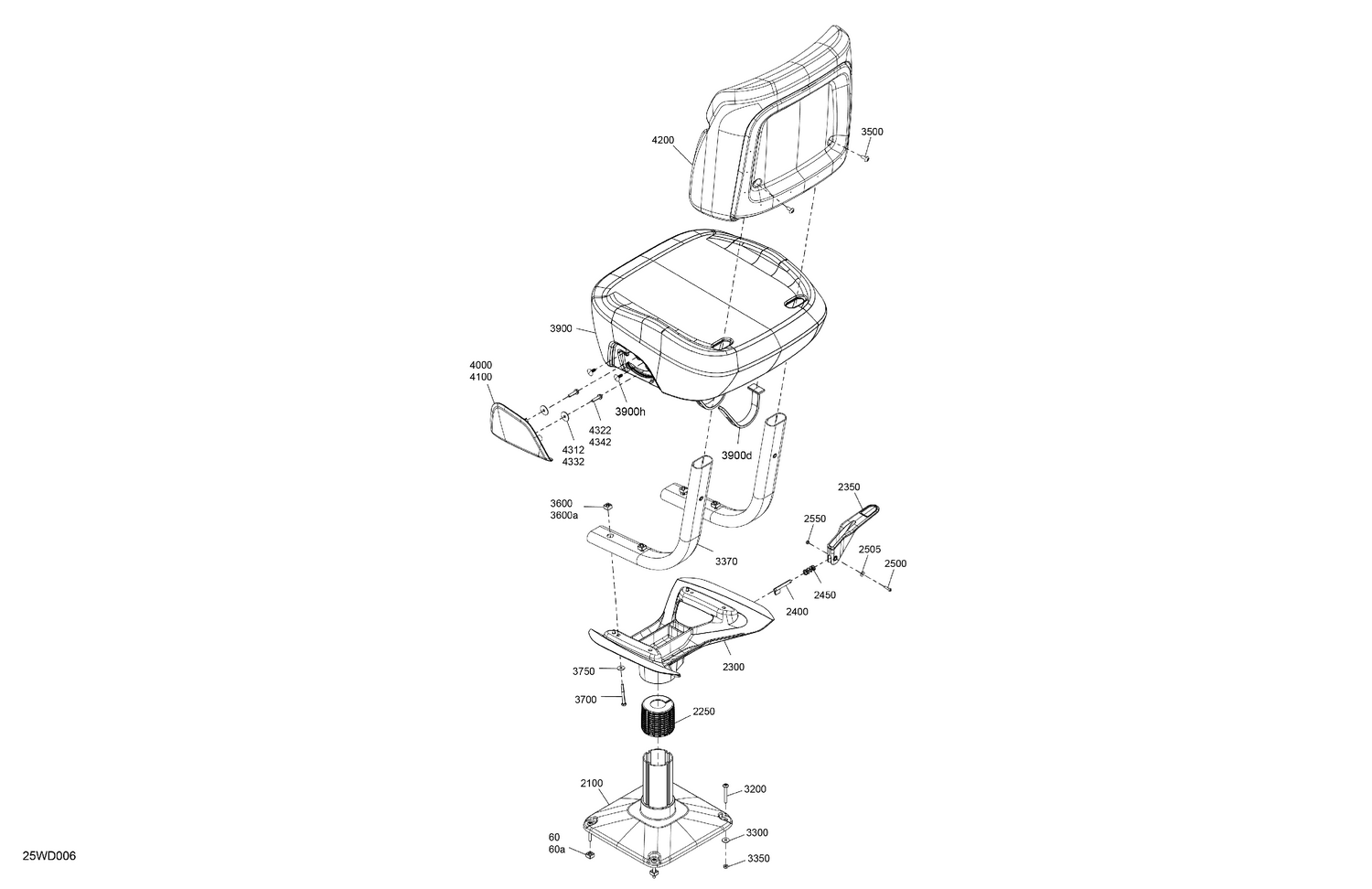

03- HELM - Driver Seat
Parts (26)
| Ref | Part Number | Description |
|---|---|---|
| 60a | 232561200 | Brass Elastic Stop Nut M6 |
| 2100 | 295101108 | Seat Anchorage Service Kit |
| 2250 | 281000022 | Sleeve |
| 2300 | 281000006 | Seat Support |
| 2350 | 281000020 | Seat Latch |
| 2400 | 281000051 | Latch Rod |
| 2450 | 281000063 | Compression Spring |
| 2500 | 250001011 | Black, Socket Head Screw M4 X 16 |
| 2505 | 234042600 | Flat Washer 4 mm, Stainless |
| 2550 | 232541200 | Elastic Stop Nut M4 |
| 3200 | 250000827 | Torx Screw Truss Cone HD.M6X50 |
| 3300 | 234062600 | Flat Washer M6, Stainless |
| 3350 | 232561200 | Brass Elastic Stop Nut M6 |
| 3370 | 281000114 | Backrest Support Ass'y |
| 3500 | 250001147 | Cone Torx Truss Screw HD.M6 X 15 |
| 3600a | 232561200 | Brass Elastic Stop Nut M6 |
| 3700 | 207065560 | Hex. Screw M6 x 55 |
| 3750 | 234062600 | Flat Washer M6, Stainless |
| 3900d | 269502417 | Strap |
| 3900h | 293730011 | Black, Dart |
| 4000 | 281000042 | RH Ext Seat Trim |
| 4100 | 281000046 | LH Ext Seat Trim |
| 4200 | 281000026 | Driver Backrest Ass'y |
| 4312 | 250200044 | Flat Washer M6 X 25 |
| 4322 | 243162560 | Hex. Flange Screw M6.81 X 25, Plastite |
| 4332 | 250200044 | Flat Washer M6 X 25 |
