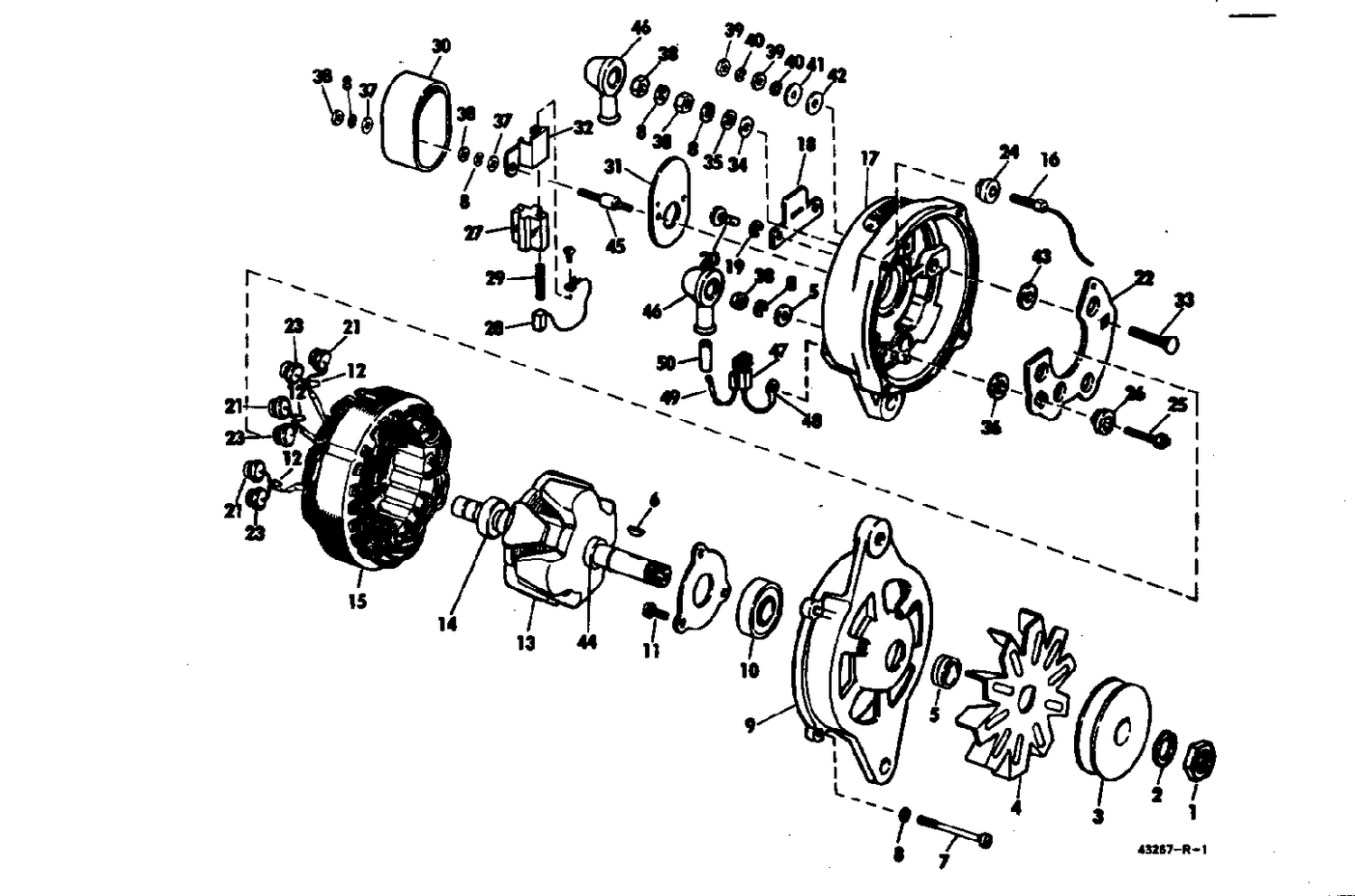

| Ref | Part Number | Description |
|---|
| 1 |
0982275 |
NUT & L'WASHER ASSY This part replaces 0311311. |
| 2 |
0982275 |
NUT & L'WASHER ASSY This part replaces 0311316. |
| 3 |
0311312 |
PULLEY, Drive |
| 4 |
0312485 |
FAN, Ventilating |
| 5 |
0312487 |
RETAINER, Felt washer |
| 6 |
0311315 |
KEY, Rotor shaft |
| 7 |
0312488 |
THRU BOLT PACKAGE |
| 9 |
0381468 |
HD ASSY, Drive end |
| 12 |
0382009 |
EVELET PACKAGE |
| 13 |
0382004 |
ROTOR & BEARING ASSEMBLY |
| 15 |
0382003 |
RECTIFIER,Positive |
| 16 |
STUD, |
Field terminal |
| 17 |
0383898 |
HEAD ASSY, Slip ring end |
| 18 |
INSULATION, |
Slip ring end |
| 19 |
LOCKWASHER, |
Insulation #10 |
| 20 |
SCREW, |
Insulation. #10-32 |
| 21 |
0380205 |
RECITIFER,Negative |
| 22 |
0383897 |
PL & RECT ASSY, Pos |
| 23 |
0380204 |
RECITIFIER,Positive |
| 24 |
BUSHING, |
Insulator field terminal |
| 25 |
STUD. |
Auxiliary terminal |
| 26 |
BUSHING, |
Insulator |
| 27 |
0382005 |
BR HLDRS ASSY |
| 30 |
0909127 |
COVER, Slip ring This part replaces 0315421. |
| 31 |
0313047 |
PL, Back-up, br bldr |
| 32 |
COVER, |
Brush holder |
| 33 |
STUD, |
Battery terminal |
| 34 |
WASHER, |
Insulated, field terminal |
| 35 |
WASHER, |
Plain, field and auxiliary terminal |
| 36 |
WASHER, |
Insulator, auxiliart terminal |
| 39 |
NUT, |
Battery terminal, 1/4-28 |
| 40 |
LOCKWASHER, |
Battery terminal, 1/4 |
| 41 |
WASHER, |
Plain, brty term. |
| 42 |
WASHER, |
Insulator, battery terminal |
| 43 |
BUSHING, |
Insulator, btry term |
| 44 |
0312486 |
RETAINER, Felt washer |
| 45 |
0981188 |
COVER & STUD ASSY This part replaces 0313046. |
| 47 |
0383432 |
FUSE & LEAD ASSEMBLY |
| 49 |
0314844 |
KNIFE DISCONNECT |
| 0383443 |
0383443 |
ALTERNAOR ASSY., Complete |
