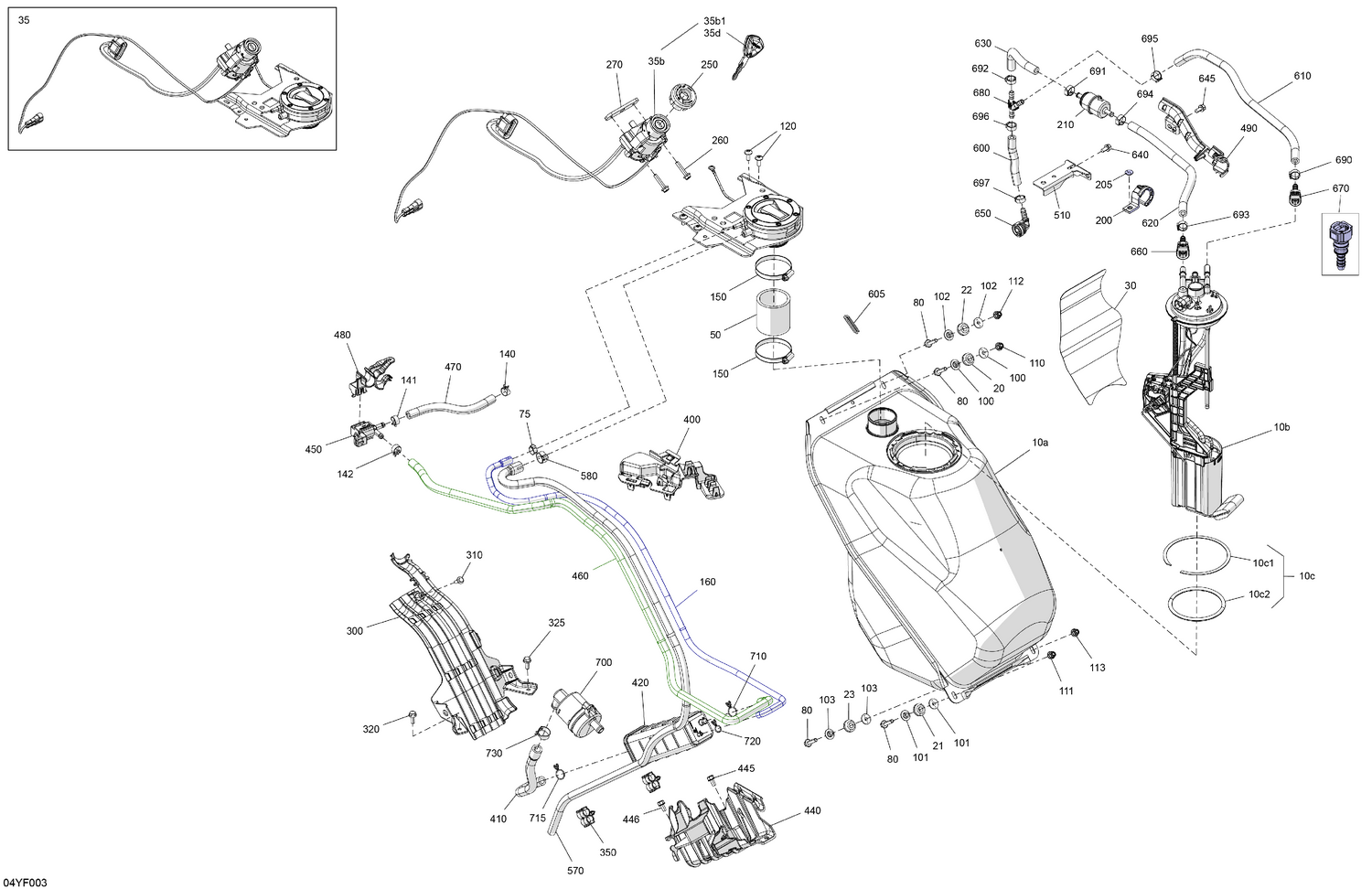

02- Engine - Fuel
Parts (77)
| Ref | Part Number | Description |
|---|---|---|
| 10a | 219800552 | Fuel Tank |
| 10b | 709001731 | Fuel Pump Module |
| 10c1 | 219800248 | Seal Kit |
| 10c2 | 219800248 | Seal Kit |
| 20 | 709000582 | Grommet |
| 21 | 709000582 | Grommet |
| 22 | 709000582 | Grommet |
| 23 | 709000582 | Grommet |
| 30 | 709001680 | Heat Shield |
| 35b | 710009772 | Lock Kit |
| 35b1 | 710010282 | Blank Ignition Key |
| 35d | 710010282 | Blank Ignition Key |
| 50 | 275501196 | Filler Neck Hose |
| 75 | 293650046 | Oetiker Clamp |
| 80 | 207662554 | Hex. Flange Screw M6 X 25 |
| 100 | 709001287 | Bushing |
| 101 | 709001287 | Bushing |
| 102 | 709001287 | Bushing |
| 103 | 709001287 | Bushing |
| 110 | 233261466 | Hex. Flange Elastic Nut M6 |
| 111 | 233261466 | Hex. Flange Elastic Nut M6 |
| 112 | 233261466 | Hex. Flange Elastic Nut M6 |
| 113 | 233261466 | Hex. Flange Elastic Nut M6 |
| 120 | 250000534 | Tork Screw M6 X 16 |
| 140 | 513033029 | Universal Spring Clamp |
| 141 | 513033029 | Universal Spring Clamp |
| 142 | 513033029 | Universal Spring Clamp |
| 150 | 293650371 | Gear Clamp |
| 160 | 709001364 | Formed Hose |
| 200 | 709001756 | Mounting Clamp |
| 205 | 709001287 | Bushing |
| 210 | 513034047 | Fuel Filter |
| 250 | 710010669 | Switch Cover |
| 260 | 207563044 | Hex. Flange Screw M6 X 30, Scotch Grip |
| 270 | 710001365 | Switch Support |
| 300 | 705018039 | Hose Support |
| 310 | 243141630 | Hex. Plastic Screw M4.8 X 16 |
| 320 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 325 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 350 | 709000571 | Hose Support |
| 400 | 709001477 | Hose Support |
| 410 | 709001366 | Formed Hose |
| 420 | 709001217 | Vapor Canister |
| 440 | 709001479 | Charcoal Canister Support |
| 445 | 210261250 | Hex. Flange Screw M6 X 12 |
| 446 | 210261250 | Hex. Flange Screw M6 X 12 |
| 450 | 709001449 | Purge Valve |
| 460 | 709001480 | Formed Hose |
| 470 | 219704612 | Hose 3000Mm Long |
| 480 | 709001482 | Valve Purge Support |
| 490 | 709001763 | Hose Support |
| 510 | 709001486 | Filter Support |
| 570 | 709001365 | Formed Hose |
| 580 | 293650352 | Crimp Clamp |
| 600 | 219800602 | Hose 7,94 Mm Id X 3000 Mm |
| 605 | 219704548 | Edge Cut Trim 1000Mm |
| 610 | 219800602 | Hose 7,94 Mm Id X 3000 Mm |
| 620 | 219800602 | Hose 7,94 Mm Id X 3000 Mm |
| 630 | 219800602 | Hose 7,94 Mm Id X 3000 Mm |
| 640 | 210261250 | Hex. Flange Screw M6 X 12 |
| 645 | 210261250 | Hex. Flange Screw M6 X 12 |
| 650 | 293710105 | Elbow Fitting 90° |
| 660 | 709000684 | Female Quick Fitting Ass'y |
| 670 | 293710192 | Quick Connect Pipe Fitting |
| 680 | 513034150 | Y Fitting |
| 690 | 293650360 | Crimp Clamp |
| 691 | 293650360 | Crimp Clamp |
| 692 | 293650360 | Crimp Clamp |
| 693 | 293650360 | Crimp Clamp |
| 694 | 293650360 | Crimp Clamp |
| 695 | 293650360 | Crimp Clamp |
| 696 | 293650360 | Crimp Clamp |
| 697 | 293650360 | Crimp Clamp |
| 700 | 709001109 | Air Filter |
| 710 | 293650294 | Hose Clamp 15.5mm-17.5mm (Spring Type) |
| 715 | 293650294 | Hose Clamp 15.5mm-17.5mm (Spring Type) |
| 720 | 293650295 | Hose Clamp 9.8mm-11.5mm (Spring Type) |
