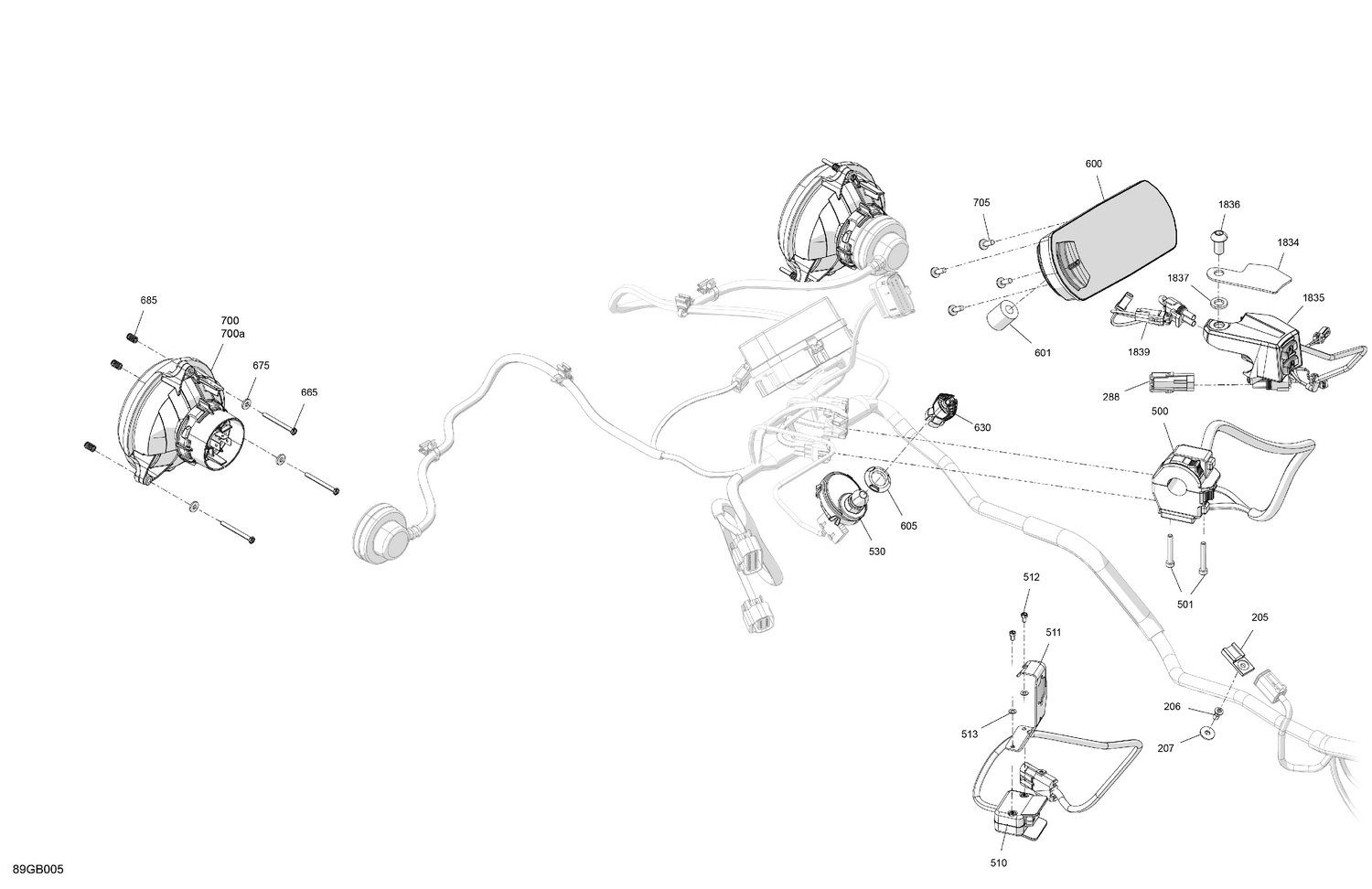

08- Electric - Front Section
Parts (24)
| Ref | Part Number | Description |
|---|---|---|
| 205 | 270000141 | Clip |
| 206 | 390402300 | Pop Rivet 3/16" |
| 207 | 391301600 | Washer |
| 288 | 710001642 | Connector Ass'y |
| 500 | 710006229 | Multi Fonction Control |
| 501 | 205053588 | Socket Head Screw M5 X 35 |
| 510 | 710007327 | Winch Switch |
| 511 | 710004670 | Black Support |
| 512 | 250000153 | Hex. Cap Screw 6-32 X 1/4" |
| 513 | 234040600 | Flat Washer 4 mm |
| 530 | 515178840 | Terminal Dess One-Wire |
| 600 | 710008108 | Multifunction Gauge Compact Mono |
| 601 | 415130224 | Ferrite |
| 605 | 278004274 | Specialized Nut |
| 630 | 710004964 | Grey Key RFID |
| 665 | 250000718 | Hex. Screw K40 X 45 |
| 675 | 517225900 | Flat Washer |
| 685 | 517168600 | Spring |
| 700a | 710000871 | Bulb, 12V 35/35W |
| 705 | 250000720 | Torx Screw K50 X 16 |
| 1834 | 715004008 | Top Plate |
| 1835 | 710004990 | Multifonction Housing Ass'y |
| 1836 | 710005908 | Screw M10 X1.25 X 20 BHCS S.Grip |
| 1837 | 503192496 | Washer |
