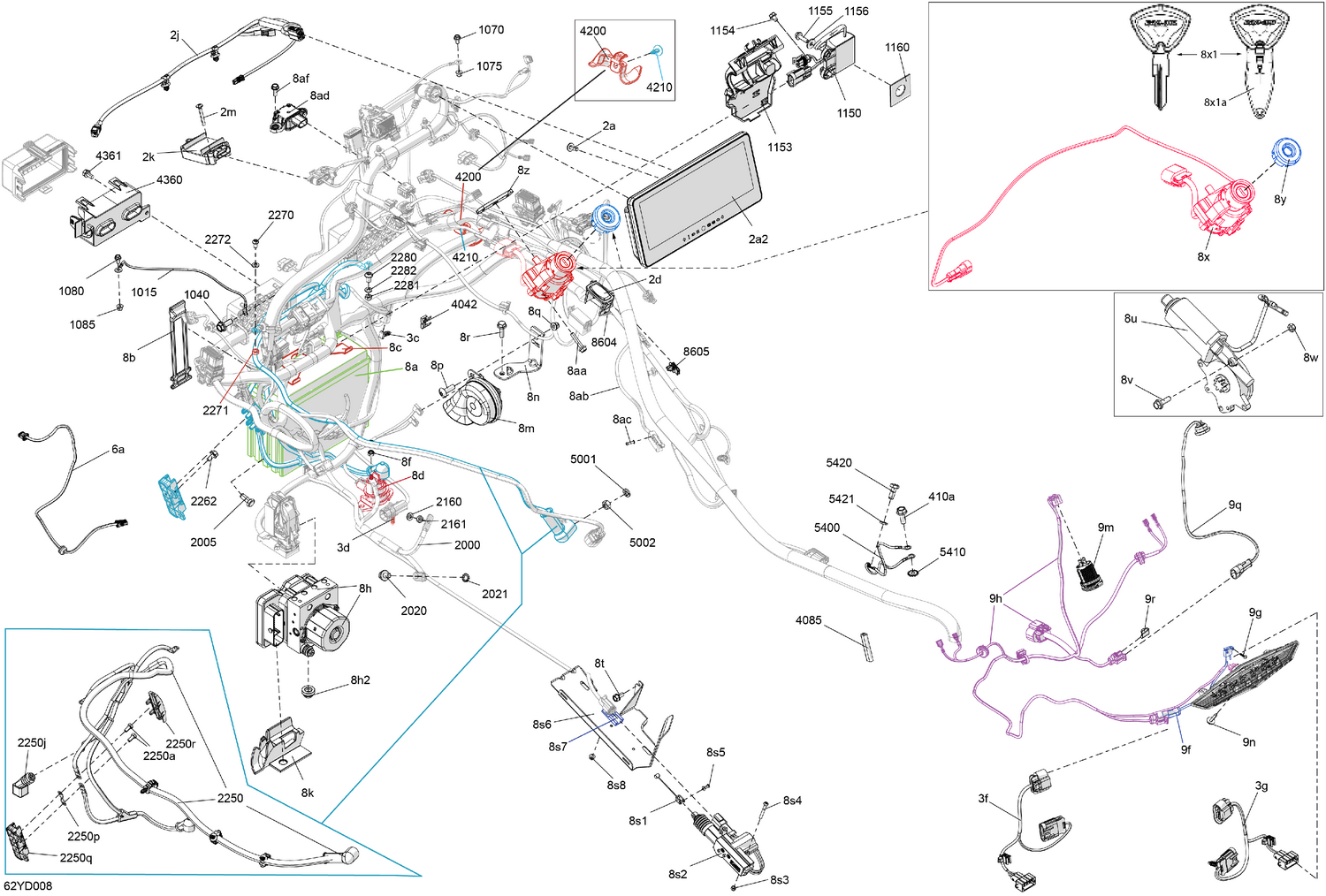

| Ref | Part Number | Description |
|---|
| 2a2 |
710008093 |
Touch Screen |
| 2d |
517306808 |
Switch Hole Cap |
| 2j |
710009724 |
Phantom Box |
| 2k |
278004172 |
External Module GPS |
| 2m |
250001111 |
Torx Screw K50 X 35 |
| 3c |
710002033 |
Connector Holder |
| 3d |
710002033 |
Connector Holder |
| 3f |
710007142 |
Tailight Harness |
| 3g |
710007142 |
Tailight Harness |
| 6a |
710009557 |
Wiring Harness |
| 8aa |
207563044 |
Hex. Flange Screw M6 X 30, Scotch Grip |
| 8ab |
710001379 |
Brake Pressure Switch Ass'y |
| 8ac |
293150150 |
Pop Rivet |
| 8ad |
710005658 |
Yaw Rate Sensor |
| 8af |
210261650 |
Hex. Flange Screw M6 X 16 |
| 8b |
520000528 |
Latch |
| 8c |
710002893 |
Battery Holder |
| 8d |
278003012 |
Starter Relay |
| 8f |
232561600 |
Hex. Elastic Stop Nut M6 |
| 8h2 |
710003279 |
Shock Damper |
| 8k |
710003996 |
VCM Harness Protector |
| 8m |
710004940 |
Horn |
| 8n |
710005769 |
Horn Support |
| 8p |
250000874 |
Torx Truss M8 X 25 |
| 8q |
233281414 |
Hex. Flange Elastic Nut M8 |
| 8r |
207562034 |
Hex. Flange Screw M6 X 20, Scotch Grip |
| 8s1 |
710002889 |
Reverse Cable |
| 8s2 |
710011269 |
Actuator |
| 8s3 |
232541414 |
Elastic Stop Nut M4 |
| 8s4 |
205444056 |
Socket Head Screw M4 X 40 |
| 8s5 |
390403000 |
Pop Rivet 5/32 |
| 8s6 |
710005642 |
Reverse Actuator Support |
| 8s7 |
270000141 |
Clip |
| 8s8 |
390402400 |
Pop Rivet 3/16" |
| 8t |
210261250 |
Hex. Flange Screw M6 X 12 |
| 8u |
710007256 |
Actuator Motor |
| 8v |
207662054 |
Hex. Flange Screw M6 X 20 |
| 8w |
232561434 |
Elastic Stop Nut M6 |
| 8x1a |
710003597 |
Key Sleeve |
| 8y |
710009167 |
Switch Cover |
| 8z |
710001365 |
Switch Support |
| 9f |
710005315 |
Open Detection |
| 9g |
250000614 |
Screw-pt.flange Oval Hd.k30 X 12 |
| 9h |
710008257 |
Upper Rear Box Wiring Harness |
| 9m |
219400510 |
USB Outlet |
| 9n |
250000101 |
Plastite Screw Type K-40, M4 X 25 |
| 9q |
710001533 |
Trunk Light |
| 9r |
409210100 |
Clip Bracket Connector (edge) |
| 410a |
207582044 |
Hex. Flange Screw M8 X 20, Scotch Grip |
| 1015 |
710009889 |
Antenna Ground Strap |
| 1040 |
207582044 |
Hex. Flange Screw M8 X 20, Scotch Grip |
| 1070 |
207551044 |
Hex. Flange Screw M5 X 10 |
| 1075 |
233251434 |
Flange Elastic Nut M5 |
| 1080 |
207551044 |
Hex. Flange Screw M5 X 10 |
| 1085 |
233251434 |
Flange Elastic Nut M5 |
| 1150 |
710004916 |
Dess Module |
| 1153 |
710004308 |
Wire Support |
| 1154 |
210261050 |
Hex. Forming Screw M6 X 10 |
| 1155 |
210262050 |
Hexagonal Head Screw |
| 1156 |
234062410 |
Flat Washer 6 mm |
| 1160 |
293830091 |
Rubber Bumper |
| 2000 |
710008074 |
Pos Cable |
| 2005 |
207582044 |
Hex. Flange Screw M8 X 20, Scotch Grip |
| 2020 |
207581244 |
Hex. Flange Screw M8 X 12, Scotch Grip |
| 2021 |
234481608 |
Serrated Lock Washer 8 mm |
| 2160 |
234061600 |
Stainless Flat Washer M6 |
| 2161 |
232561434 |
Elastic Stop Nut M6 |
| 2250a |
207161444 |
Hex. Screw M6 X 14 |
| 2250j |
710002945 |
Battery Guard |
| 2250p |
710008102 |
Fuse 80 A |
| 2250q |
710008098 |
Fuse Holder Support |
| 2250r |
710008154 |
Fuse Holder Cover |
| 2262 |
210261250 |
Hex. Flange Screw M6 X 12 |
| 2270 |
205961060 |
Socket Head Screw M6 X 10, Scotch Grip |
| 2271 |
232061600 |
Hex. Nut M6 |
| 2272 |
234161601 |
Lock Washer Helical M6 |
| 2280 |
205961060 |
Socket Head Screw M6 X 10, Scotch Grip |
| 2281 |
232061600 |
Hex. Nut M6 |
| 2282 |
234161601 |
Lock Washer Helical M6 |
| 4042 |
710001222 |
Lock |
| 4085 |
219704354 |
Trim 1000Mm Long |
| 4200 |
710004931 |
Harness Holder |
| 4210 |
414745900 |
Tuflock Phillips Plastic Screw |
| 4360 |
710004472 |
Fuse Holder Support |
| 4361 |
210261250 |
Hex. Flange Screw M6 X 12 |
| 5001 |
234181601 |
Lock Washer 8 mm, Stainless |
| 5002 |
232081414 |
Hex. Nut M8 |
| 5400 |
710004849 |
Tank Cable |
| 5410 |
250200041 |
Lock Washer Serrated M6 |
| 5420 |
207382060 |
Hex. Screw M8 X 20, Scotch Grip |
| 5421 |
250200111 |
Washer |
| 8604 |
710002033 |
Connector Holder |
