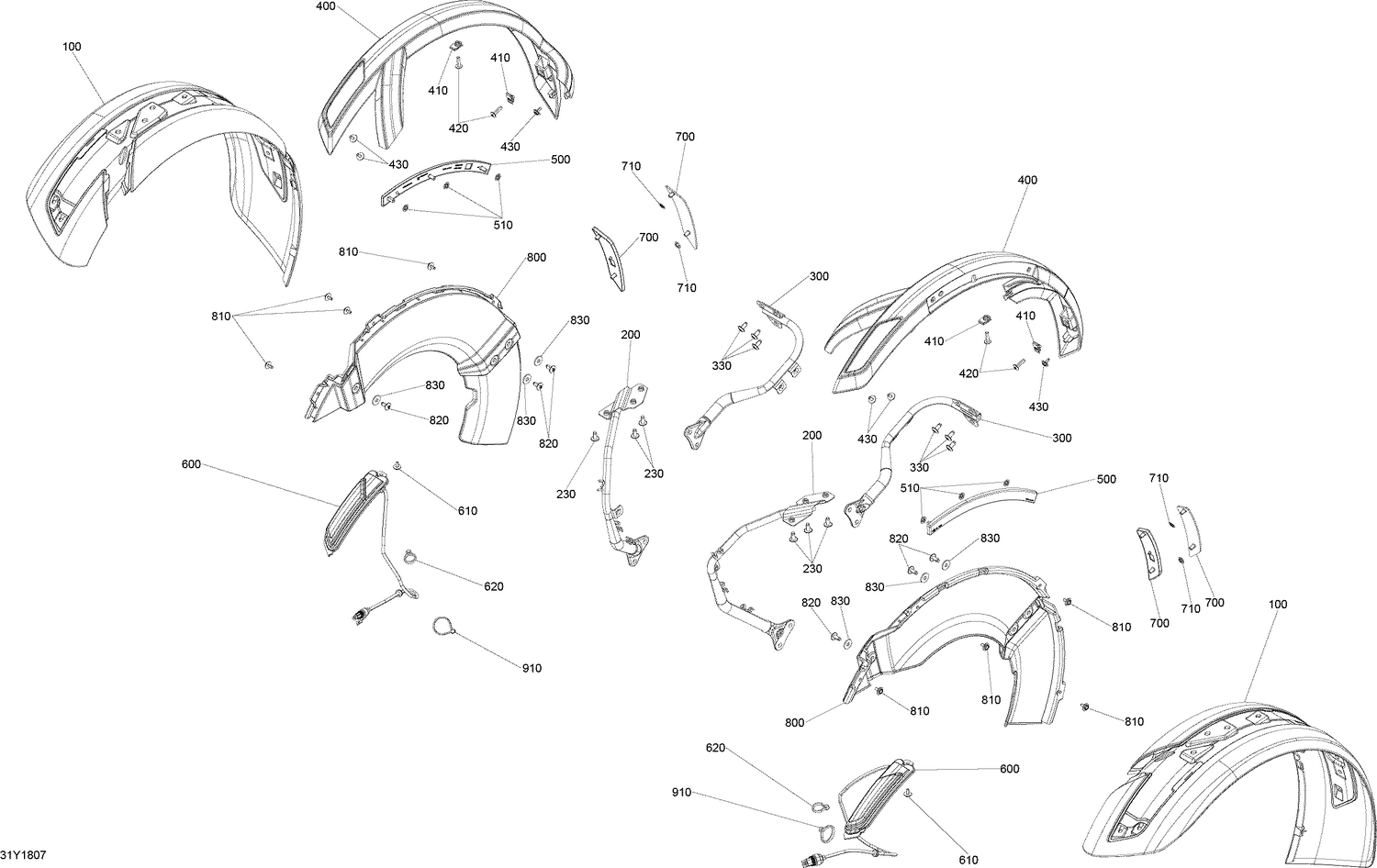

09- Body And Accessories - Fender
Parts (21)
| Ref | Part Number | Description |
|---|---|---|
| 200 | 705011297 | LH Front Support |
| 200 | 705011301 | RH Front Support |
| 230 | 250000851 | Torx Screw M6 X 14 |
| 300 | 219800414 | LH Support |
| 300 | 705011302 | RH.SUPPORT - Call your local BRP dealership |
| 330 | 250000851 | Torx Screw M6 X 14 |
| 410 | 250100176 | Panel Nut M5 X 0.8 |
| 420 | 250000724 | Torx Screw M5 X 20 |
| 430 | 250000805 | Plastite Screw M4 X 10 |
| 500 | 705008661 | Yellow LH Reflector |
| 500 | 705008662 | Yellow RH Reflector |
| 510 | 250100163 | Pressure Nut |
| 610 | 250000805 | Plastite Screw M4 X 10 |
| 620 | 293750002 | Tie Wrap 142 mm |
| 710 | 250100163 | Pressure Nut |
| 800 | 705007616 | LH Inner Fender |
| 800 | 705007617 | RH Inner Fender |
| 810 | 250000805 | Plastite Screw M4 X 10 |
| 820 | 250000851 | Torx Screw M6 X 14 |
| 830 | 250200164 | Flat washer M6 |
| 910 | 293750002 | Tie Wrap 142 mm |
