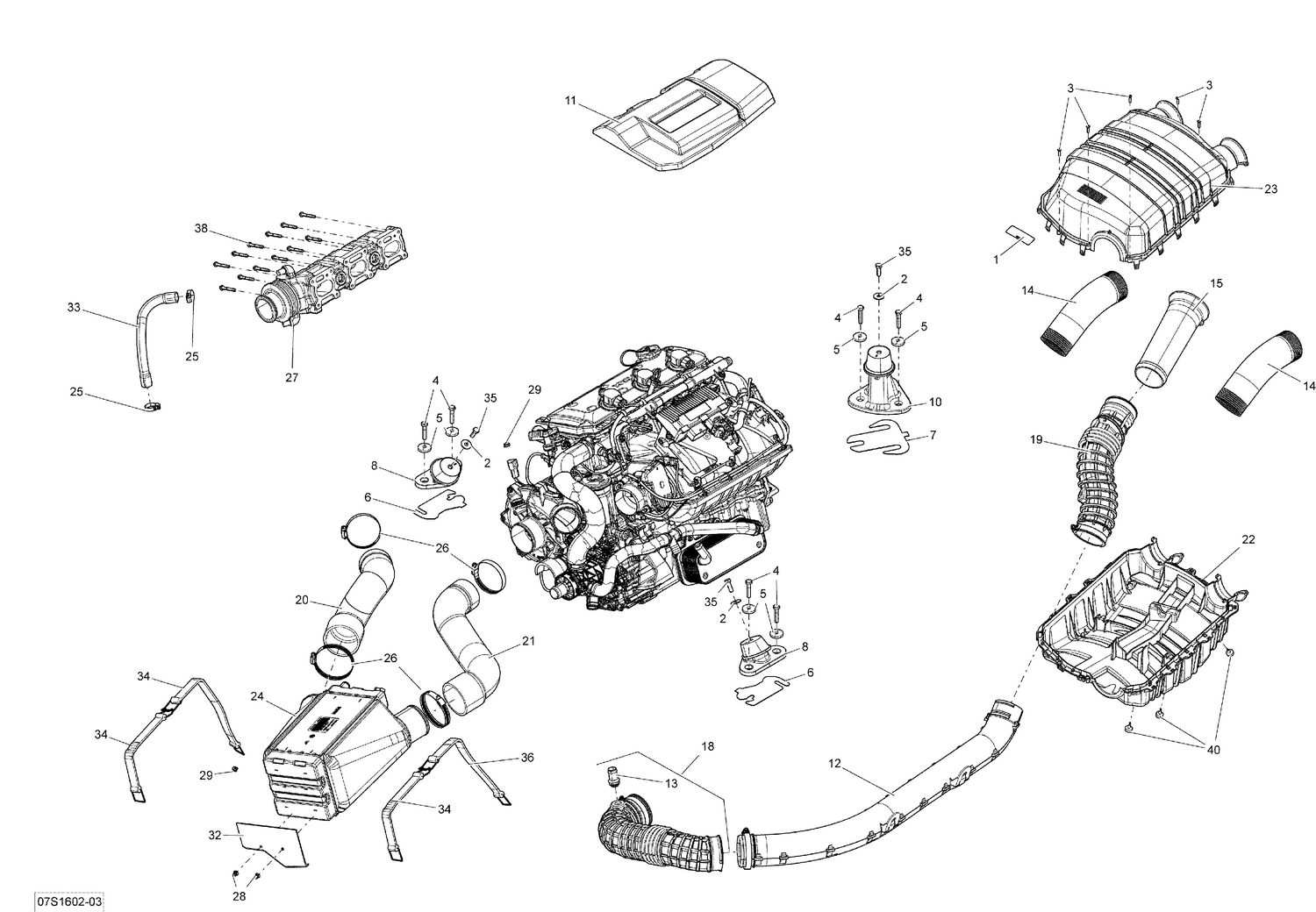

01- Engine - RXT-X 300
Parts (33)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 219903177 | Air Silencer Notice Decal |
| 2 | 234082600 | Flat Washer 8 mm, Stainless |
| 3 | 250000287 | Flange Torx Screw K40 X 16 |
| 4 | 250000782 | Hexagonal Head Cap Screw M8 X 45 |
| 5 | 250200018 | Cone Washer |
| 6 | 270000762 | Shim 1.3 mm |
| 7 | 270000770 | Shim 1.3 mm |
| 8 | 270001081 | Engine Support Ass'y This part replaces 270000882. |
| 10 | 270000886 | Rubber Mount |
| 11 | 270001002 | Engine Cover Ass'y |
| 12 | 273000233 | HOSE INTAKE - Call your local BRP dealership |
| 13 | 273000234 | Breather Valve |
| 14 | 273000290 | Air Silencer Hose |
| 15 | 273000359 | Intake Hose |
| 18 | 273000328 | Hose Intake, Rear |
| 19 | 273000322 | HOSE CONNECTOR - Call your local BRP dealership |
| 20 | 273000401 | Hose Air Intake Intercooler This part replaces 273000338. |
| 21 | 273000406 | Outlet Hose This part replaces 273000339. |
| 22 | 273000342 | Airbox Base |
| 23 | 273000373 | Airbox Cover This part replaces 273000343. |
| 25 | 293650051 | Tridon Gear Clamp |
| 26 | 293650179 | Tridon Clamp |
| 26 | 293650244 | Tridon Gear Clamp |
| 27 | 296000422 | Engine Exhaust Manifold 0990732-00 - 150 This part replaces 274001553. |
| 28 | 293730016 | Black, Dart |
| 29 | 293750002 | Tie Wrap 142 mm |
| 32 | 293830178 | Pad-Rubber |
| 33 | 270000950 | Formed Hose |
| 34 | 293850093 | Fuel Tank Strap |
| 34 | 293850094 | Fuel Tank Strap |
| 35 | 207382560 | Hex. Screw M8 X 25, Scotch Grip |
| 36 | 293850095 | Fuel Tank Strap |
| 38 | 420641198 | Torx Flange Screw M6 X 45 |
