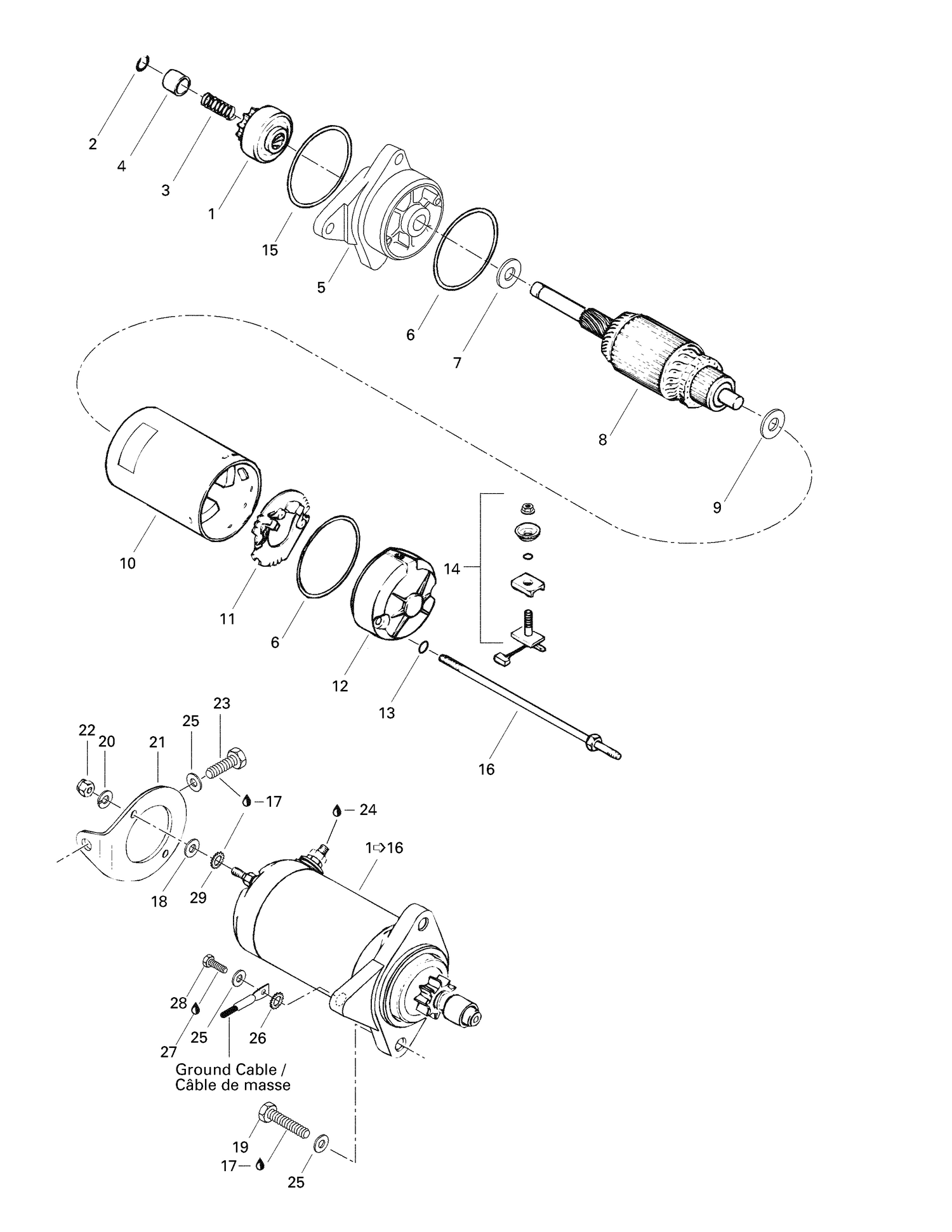

| Ref | Part Number | Description |
|---|
| 1 |
295500089 |
Starter Clutch Ass'y |
| 2 |
278000048 |
CIRCLIP - Call your local BRP dealership |
| 3 |
278000168 |
SPRING - Call your local BRP dealership |
| 4 |
278000254 |
Stopper Bushing |
| 5 |
278000697 |
Housing Ass'y |
| 6 |
278000695 |
O-Ring |
| 7 |
278000054 |
Flat Washer |
| 8 |
278000699 |
Armature |
| 9 |
278000056 |
THRUST WASHER - Call your local BRP dealership |
| 10 |
278000057 |
Yoke Ass'y |
| 11 |
278001296 |
Brush Holder This part replaces 278000058. |
| 12 |
278000251 |
Commutator End Frame |
| 13 |
278000060 |
O-RING - Call your local BRP dealership |
| 14 |
278001297 |
Brush Starter Kit This part replaces 278000252. |
| 15 |
278000694 |
O-RING - Call your local BRP dealership |
| 16 |
278000170 |
RETAINER STUD - Call your local BRP dealership |
| 17 |
293800060 |
Loctite 243, 10 ml This part replaces 293800015. |
| 18 |
234051600 |
Flat Washer M5, Stainless This part replaces 213200004. |
| 19 |
207183060 |
Hex. Screw M8 X 30 This part replaces 210000007. |
| 20 |
234151601 |
Helical Lock Washer M5 This part replaces 217351500. |
| 21 |
270000080 |
Starter Support |
| 22 |
232051600 |
Hex. Nut M5 This part replaces 218051600. |
| 23 |
215681660 |
Hex. Screw M8 x 16 |
| 24 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 25 |
234081600 |
Stainless, Flat Washer 8 mm This part replaces 213200002. |
| 26 |
213400001 |
WASHER-LOCK TOOTHED DIN.6797A-A2 - Call your local BRP dealership |
| 27 |
293800005 |
Loctite 271, 10 ml |
| 28 |
207182060 |
HEX. SCREW M8 X 20 - Call your local BRP dealership This part replaces 210000001. |
