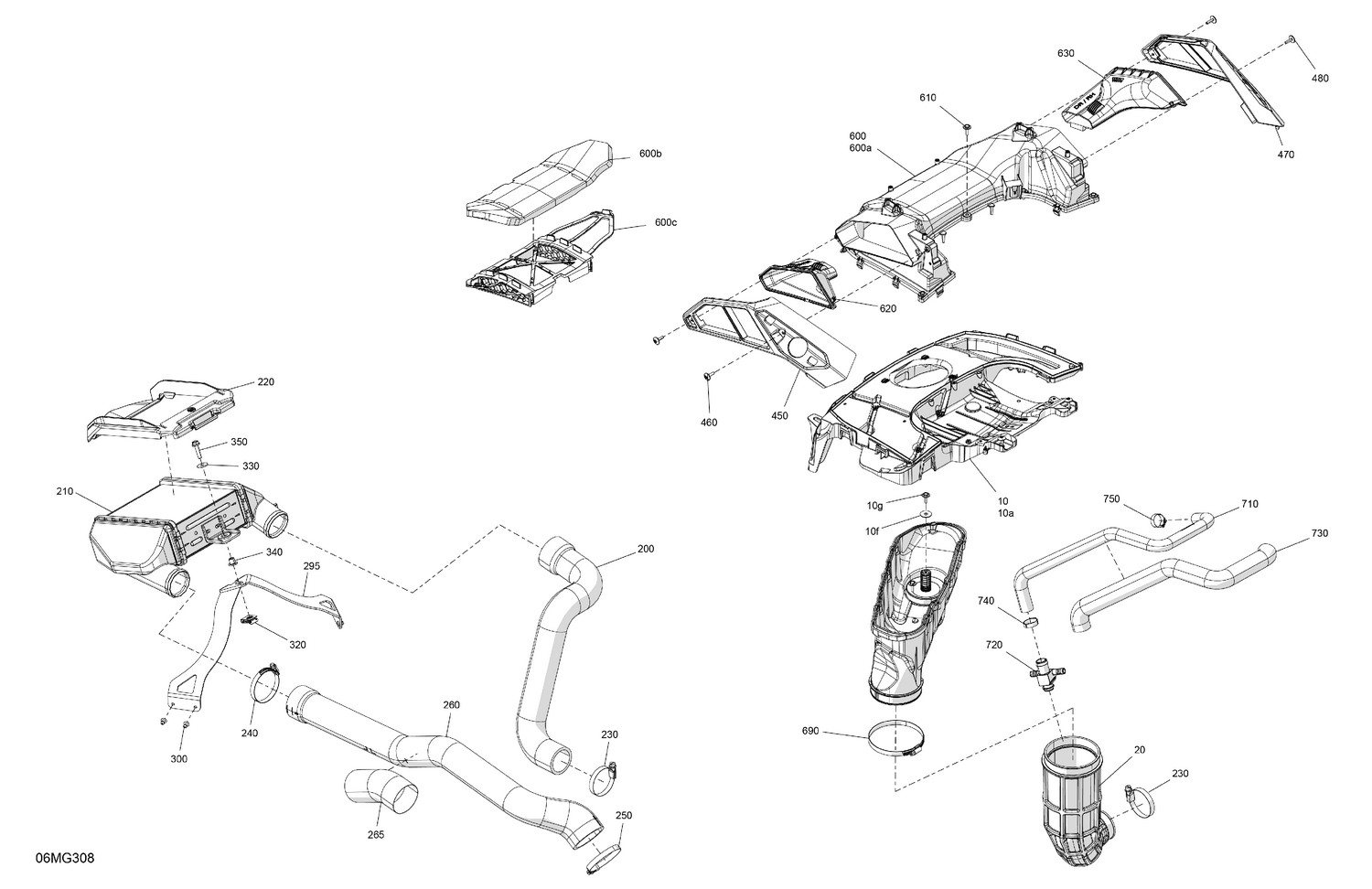

02- Engine - Air Intake
Parts (33)
| Ref | Part Number | Description |
|---|---|---|
| 10a | 508001366 | Molded Multi Purpose Plate |
| 10f | 224060201 | Flat Washer |
| 10g | 250000725 | Screw M4 X 16 |
| 20 | 508001297 | Intake Silencer |
| 200 | 508000856 | Inlet Hose |
| 210 | 508001317 | Intercooler |
| 220 | 508001241 | Adapter |
| 230 | 293650370 | Gear Clamp |
| 240 | 293650368 | Gear Clamp |
| 250 | 293650368 | Gear Clamp |
| 260 | 508001010 | Inlet Hose |
| 265 | 508001033 | Protector Tube |
| 295 | 508001234 | Rear Support |
| 300 | 390909100 | Avex Rivet |
| 320 | 250100208 | Panel Nut M6 X 1.0 |
| 330 | 250200082 | Flat Washer |
| 340 | 293900151 | Bushing |
| 350 | 207562544 | Hex. Flange Screw M6 X 25 |
| 450 | 508001136 | LH Air Filter |
| 460 | 250000889 | Screw M4 X 16 |
| 470 | 508001137 | RH Air Filter |
| 480 | 250000889 | Screw M4 X 16 |
| 600a | 508001289 | Upper Intake Silencer Duct |
| 600b | 508001224 | Acoustic Insulation |
| 600c | 508001222 | Foam Support |
| 610 | 250000725 | Screw M4 X 16 |
| 620 | 508001199 | LH Upper Resonator |
| 630 | 508001200 | RH Resonator |
| 690 | 293650375 | Gear Clamp |
| 710 | 508000862 | Vent Hose |
| 720 | 508001278 | Molded Breather |
| 730 | 508000907 | Insulating Tube |
| 740 | 509000442 | Oeticker Gear Clamp, 25.6-706R |
